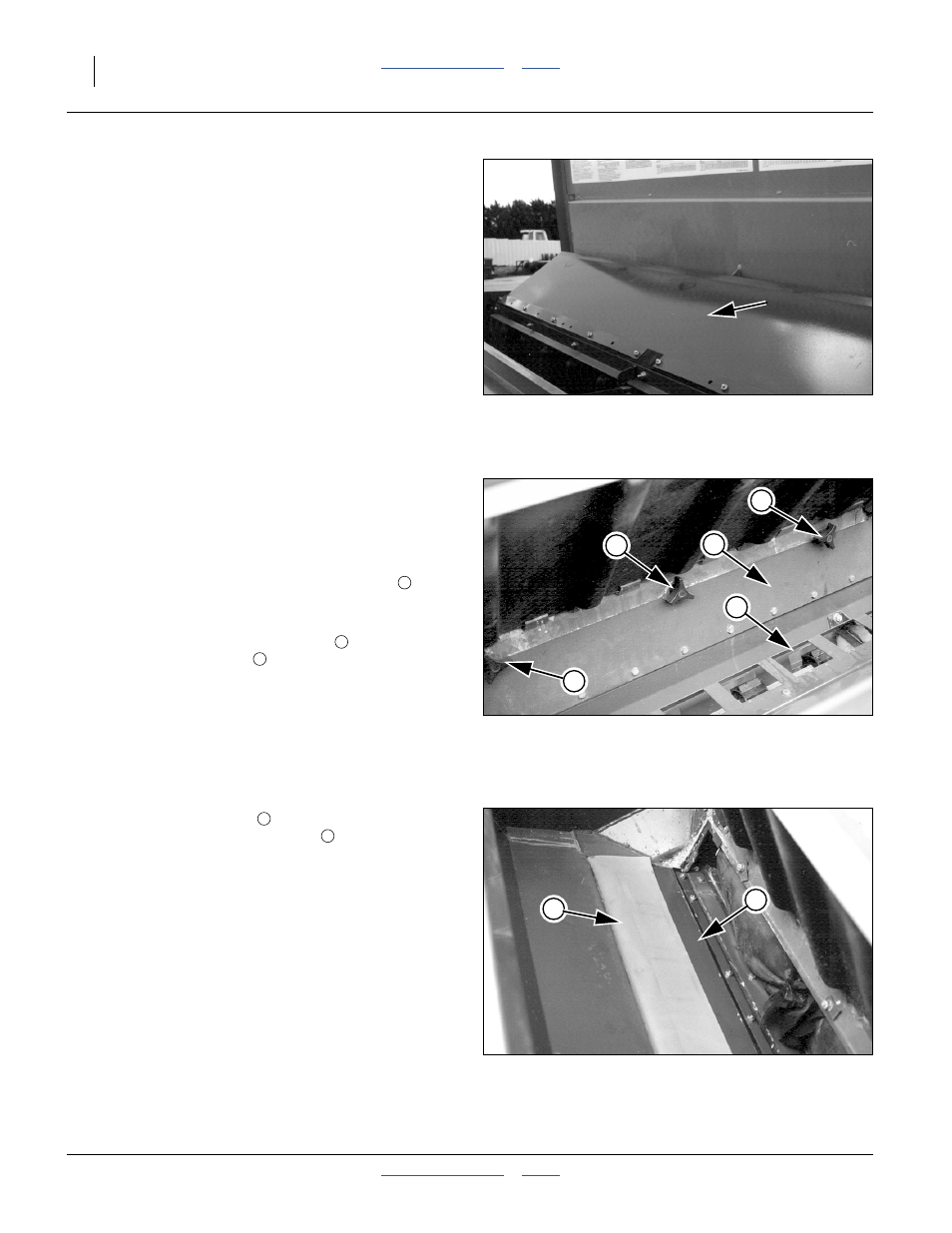

Refer to Figure 31
7.
Open lid over fertilizer compartment and swivel back
until it rests against open drill-box lid. The fertilizer lid
serves as a spill guard to keep fertilizer out of the
seed compartment.
8. Fill fertilizer compartment.
Seeding with Both Compartments
1. Clean out boxes as explained under “Materials
Clean-Out” on page 82.
Refer to Figure 32
2.
Open divider door between seed and fertilizer
compartments. To open door, loosen knobs
.
Loosen knobs until bent clips can be turned off door.
3. When all bent clips have been turned, lift vinyl dew
shield (not shown) and flip the flap
backward over
fertilizer-tray openings .
Refer to Figure 33
4.
With seed/fertilizer flap covering fertilizer
openings, lower vinyl dew shield to hold flap over
fertilizer openings and away from divider.
5. To avoid unnecessary wear, remove fertilizer drive
chains.
Figure 31
Spill Lid
16375
Figure 32
Divider Door
16383
1
1
1
2
3
1
2
3
Figure 33
Divider Door Secured
16380
2
4
2
4
