Wing Box Alignment
1. Place a block ahead of the wing gauge wheels.
Refer to Figure 5
2.
Pull forward against blocks to rock wing frames back.
Pull forward until stop bolts are firmly against tool
bars.
Refer to Figure 6
3.
Check for proper alignment by running a string line
across back of drill toward outer ends of wings. For
proper alignment, outside ends of boxes should be
about 1 inch to 1
1 ⁄
4
inch (25 to 32 mm) ahead of
inside ends.
4. To adjust box alignment, shorten or lengthen stop
bolts to change the contact point with the tool bars.
Adjust stop bolts in or out until outside ends of boxes
are 1 inch to 1
1 ⁄
4
inch (25 to 32 mm) ahead of inside
ends.
Tool Bar Height
Tool bar height is factory set and normally will not require
adjustment. If the tool bar is visibly not level see “Tool
Bar Height Adjustment” on page 63.

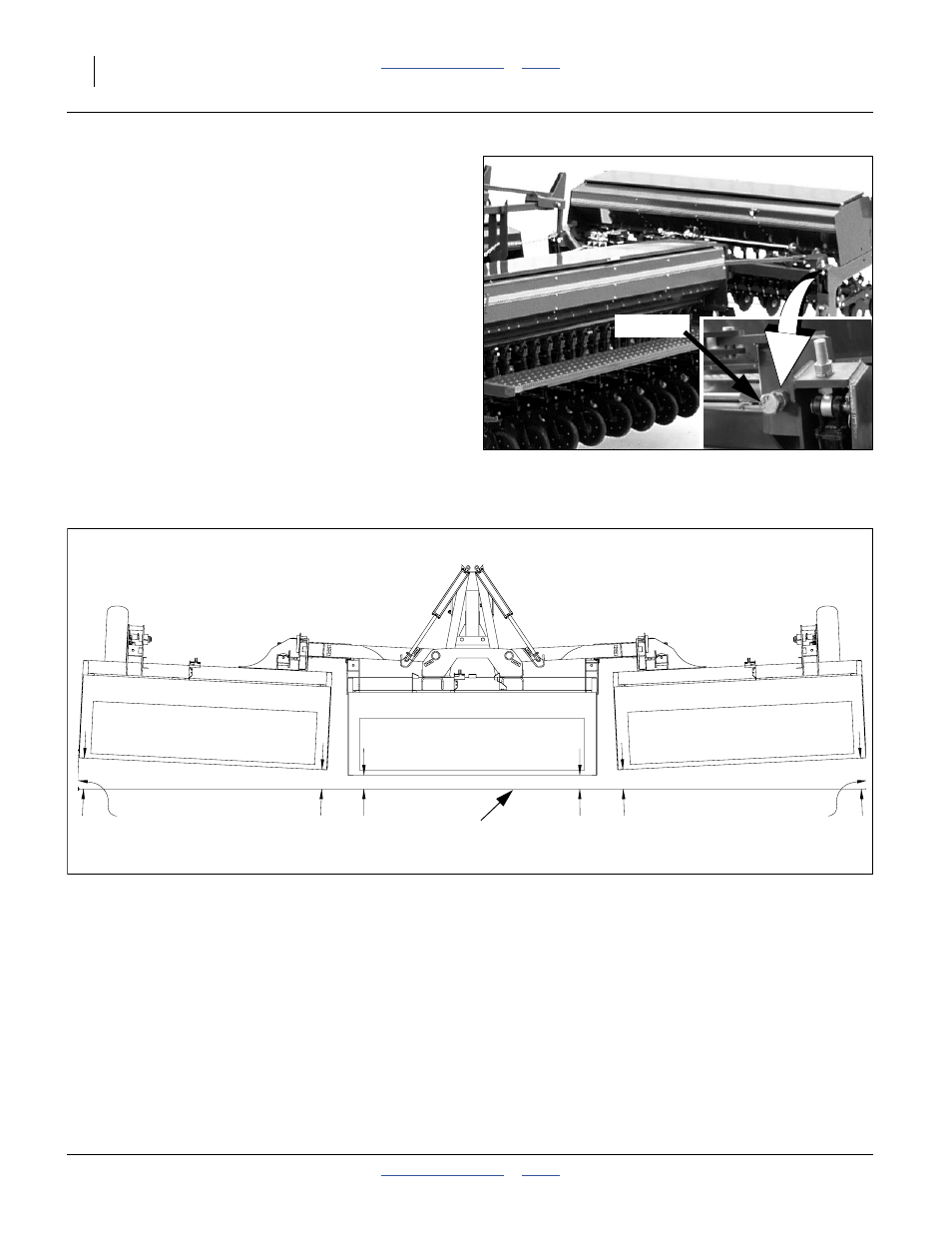

Figure 5
Stop Bolt Location
18988
Stop Bolt
Figure 6
Wing Box Alignment Measurement
15654
String Line
String Line
Support
String Line
Support A A B
C
B
C - B = 1 to 1
1 ⁄
4
inch
