Refer to Figure 8
3.
To align the clutch jaws from front to rear, loosen the
two
1 ⁄
2
inch carriage bolts and slide breakaway
clutch in the desired direction.
4. To adjust clutch jaws for full jaw contact, loosen the
two
1 ⁄
2
inch carriage bolts and slide breakaway
clutch until jaws on the fixed half of clutch make
full contact with jaws on spring loaded half of clutch
without compressing clutch spring.
Refer to Figure 9
Note: The two
7 ⁄
8
inch (19 mm) hex shafts should have
1 ⁄
8
inches (3.2 mm) between them when the clutch
jaws have full contact.
3
4
3
4

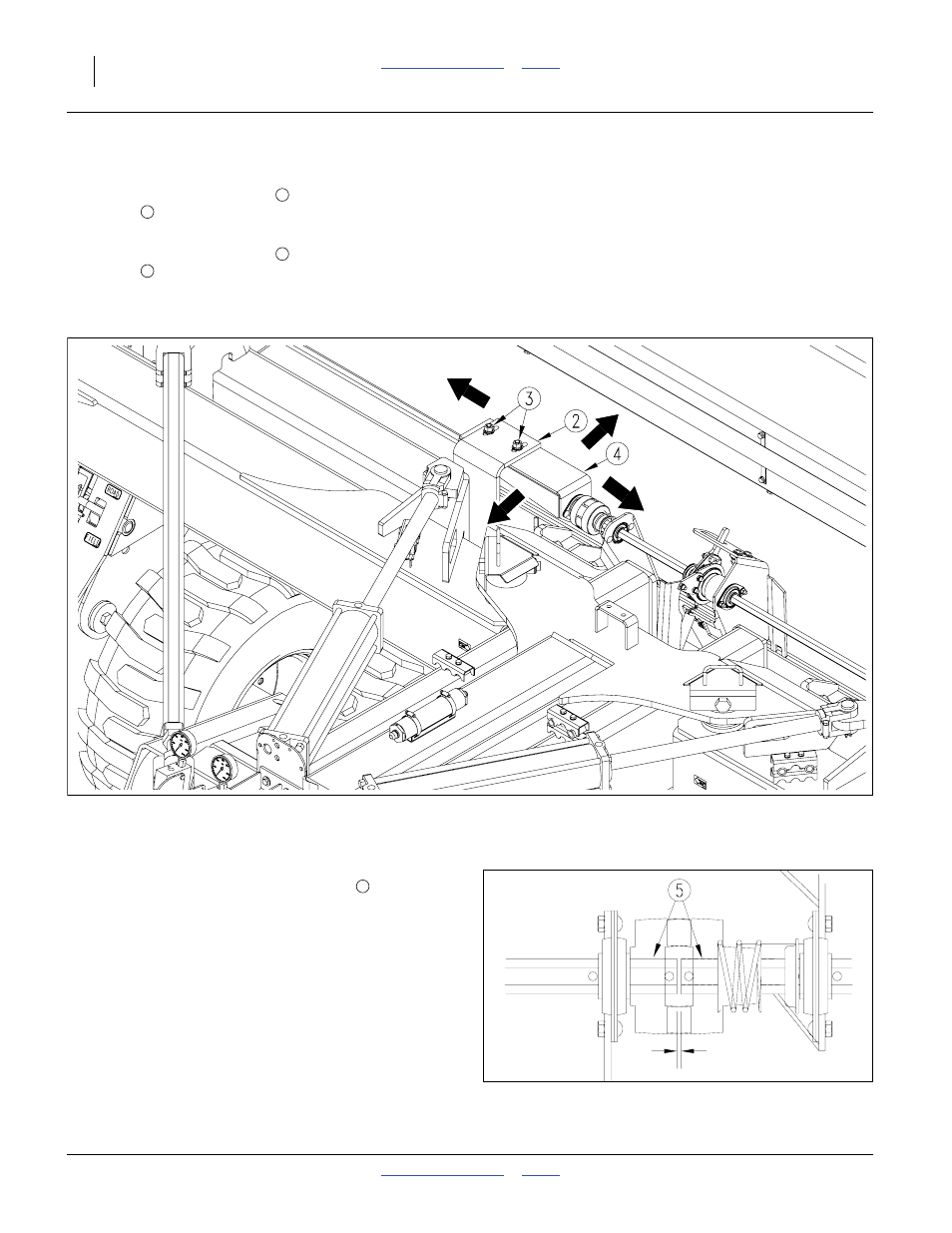

Figure 8
Transfer Drive Shaft Horizontal Adjustment
18954
Figure 9
Hex Shafts
18955
1/8in (3.2mm)
