Divider Removal
Refer to Figure 29
A. Remove
5 ⁄
16
inch bolts and flange nuts from
tabs at each end of drill box (2 locations).
B. Remove
5 ⁄
16
inch bolts and nuts from lid-hinge
brackets (3 locations).
C. Loosen but do not remove
1 ⁄
4
inch bolts and nuts
that clamp the lid assembly angle irons to the
plastic dividers .
D. Lift lid assembly out of drill box. Lift dividers out
of drill box. Reinstall standard or offset dividers.
E. Reinstall lid assembly by reversing step D through
step A.
Loading Fertilizer Compartment
Refer to Figure 27
5.
Check that fertilizer clean-out door is latched
securely as shown. Close all door latches before
loading fertilizer compartment.
Refer to Figure 30
6.
Check that the seed/fertilizer flap is closed so seed
and fertilizer cannot pass between compartments.
Flap flips forward to block passage. The flap top
edge is secured to the dividers. Rotate the bent clips
to engage the edge of the flap, and tighten the
knobs.

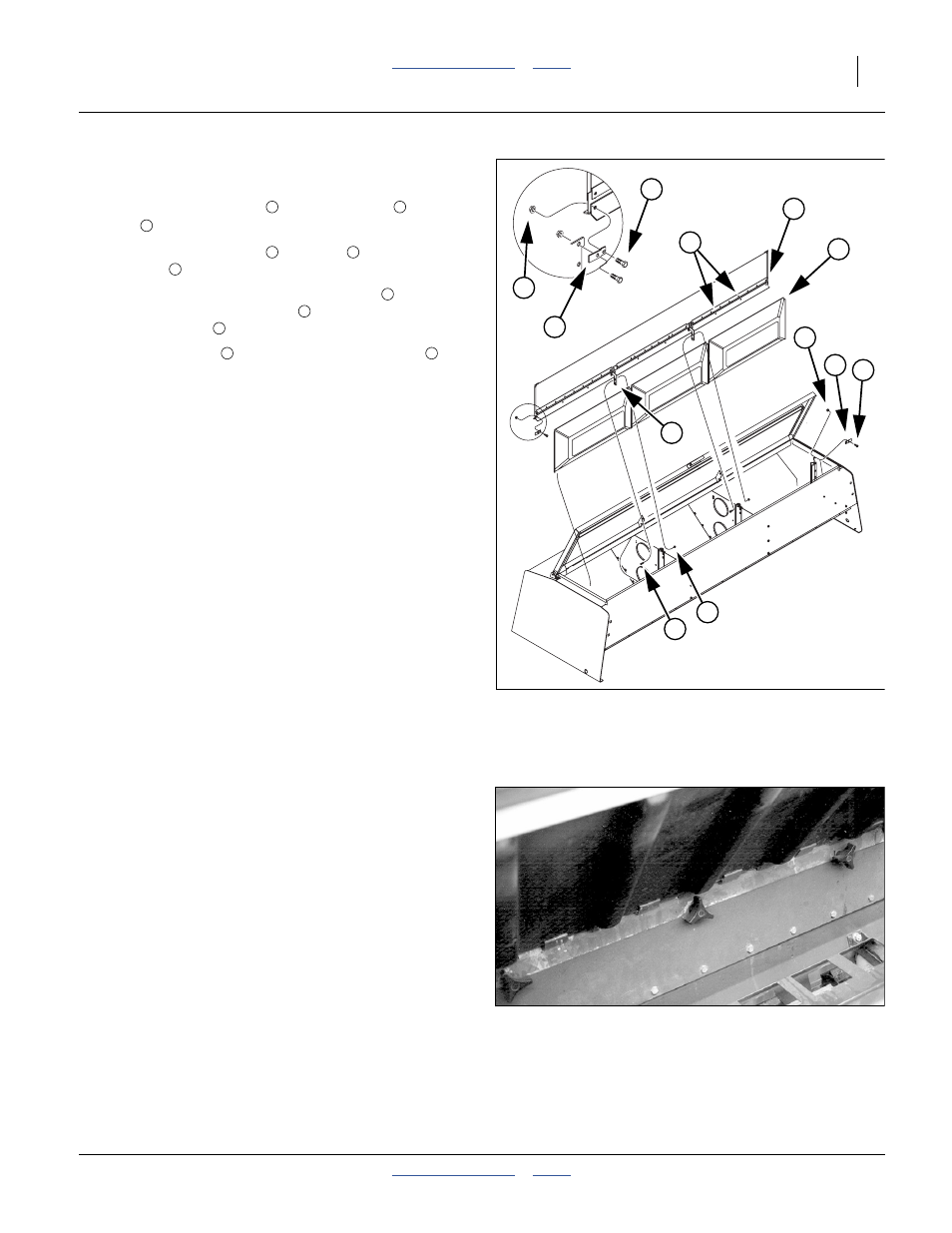

Figure 29
Box Divider Removal
27050
1
3
2
3
2
1
4
5
6
7
8
9
1 2
3
4 5
6
7
8
9
8 9
Figure 30
Seed/Fertilizer Flap Closed
16383
