Align Transfer Drive Shaft
After wing boxes are properly aligned, the transfer drive
shaft must be aligned so the pair of break-away jaws are
fully engaged and are concentric. The
7 ⁄
8
inch (19 mm)
hex drive shafts holding the clutch jaws should not
contact each other when wing boxes are properly aligned
and back against their stops.
1. Place a 4x4 inch or similar sized block ahead of the
wing gauge wheels and pull forward or push wing
box frames back until the tool bar is firmly against
tool bar stop bolts on the center box frame.
Refer to Figure 8
2.
To align the clutch jaws vertically, loosen the two
5 ⁄
8
inch bolts on the backside of the adjustment
plate . Slide the plate up or down in the desired
direction.
1
2

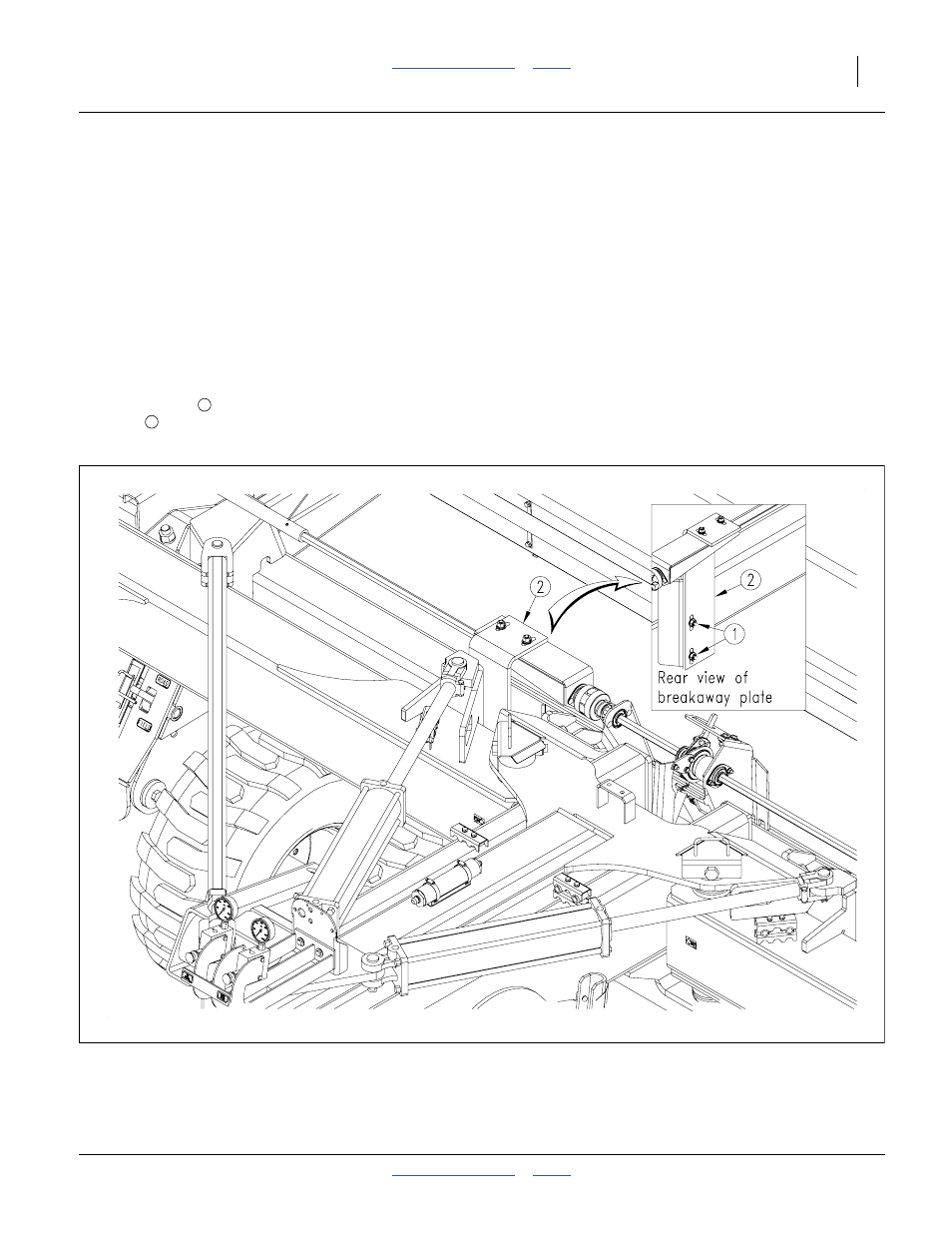

Figure 7
Transfer Drive Shaft Vertical Adjustment
18953
