88 3S-3000/F/HD/HDF Table of Contents Index Great Plains Manufacturing, Inc.
195-441M Table of Contents Index 2014-07-01

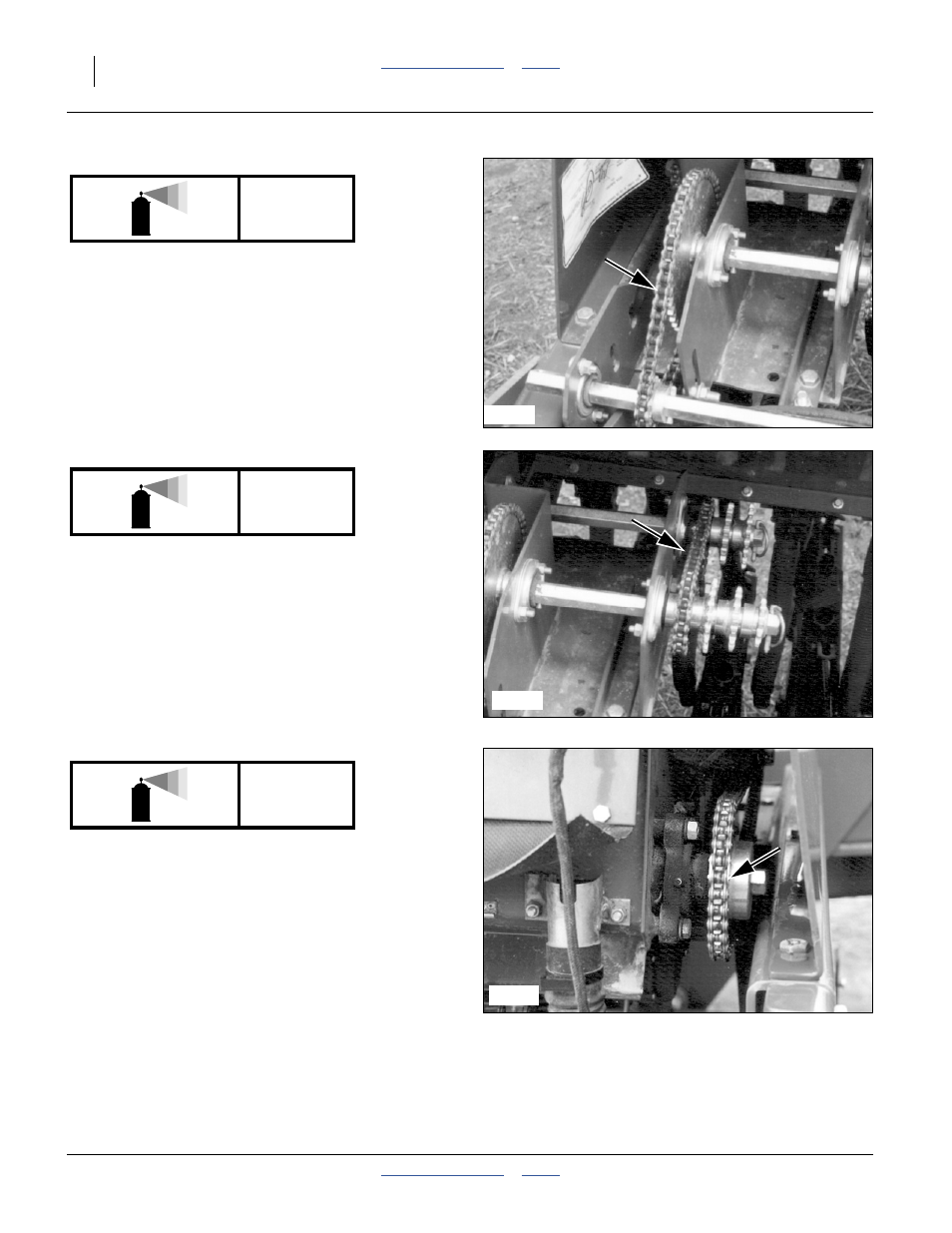

Clutch Shaft to Fertilizer Range Chain
1 chain per section; 3 total
Type of Lubrication: Chain Lube
Quantity: Coat thoroughly
Slack: 1 ⁄
4
in (7mm) in top span
FigureSpacer
Fertilizer Range to Jackshaft Chain
1 chain per section; 3 total
Type of Lubrication: Chain Lube
Quantity: Coat thoroughly
Slack: 1 ⁄
4
in (6mm) in top span
FigureSpacer
Fertilizer Jackshaft to Meter Shaft Chain
1 chain per section; 3 total
Type of Lubrication: Chain Lube
Quantity: Coat thoroughly
Slack: 1 ⁄
2
in (13mm) in top span
FigureSpacer
FigureSpacer
16379
As Required
FigureSpacer
16379
As Required
FigureSpacer
16381
As Required
