Appendix B - Initial Setup
Scraper Installation
Optional disk scrapers are not factory installed. To install
them in the field:
1. Remove one or both disk blades to gain safe access
to the mount. Note the position of bushings and
spacers for correct re-assembly (page 56).

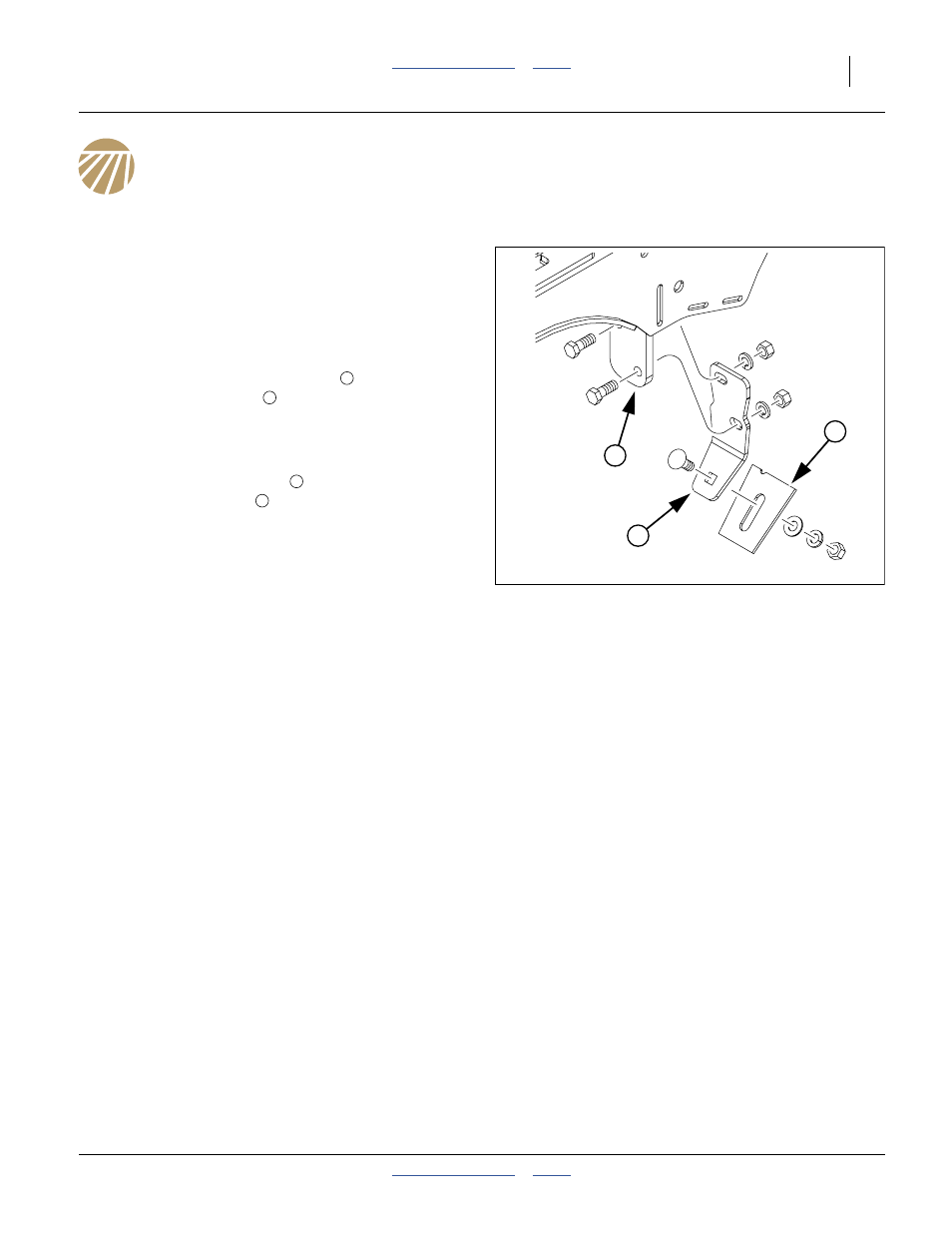

Refer to Figure 93
2.
Position the inside scraper mount to the rear of
the seed firmer mount on the opener weldment.
Secure it with two HHCS 3 ⁄
8
-16x1in hex head bolts,
lock washers and nuts. Insert the bolts from the front.
3. Position the scraper blade below and behind the
inside scraper mount , with the notch on top to
machine right.
Secure it loosely with one RHSNB 3 ⁄
8
-16x1 round
head square neck bolt, flat washer, lock washer and
nut.
4. Re-mount the removed disk blade.
5. Adjust the scraper blade per “Disk Scraper
Adjustments” on page 56.
FigureSpacer
Figure 93
Scraper Installation
26460
2
1
3
1
2
3
1
