Refer to Figure 32
7.
Check that fertilizer clean-out door is latched
securely
as shown. Close all door latches before
loading fertilizer compartment.
FigureSpacer
Refer to Figure 33
8.
Open main seed box lid.
9. Raise spill flap over fertilizer compartment and swing
it forward until it rests against open drill-box lid. The
spill flap serves as a spill guard to keep fertilizer out
of the seed compartment.
10. Fill fertilizer compartment.
11. Calibrate fertilizer-application rate per Seed Rate
manual.
FigureSpacer
FigureSpacer

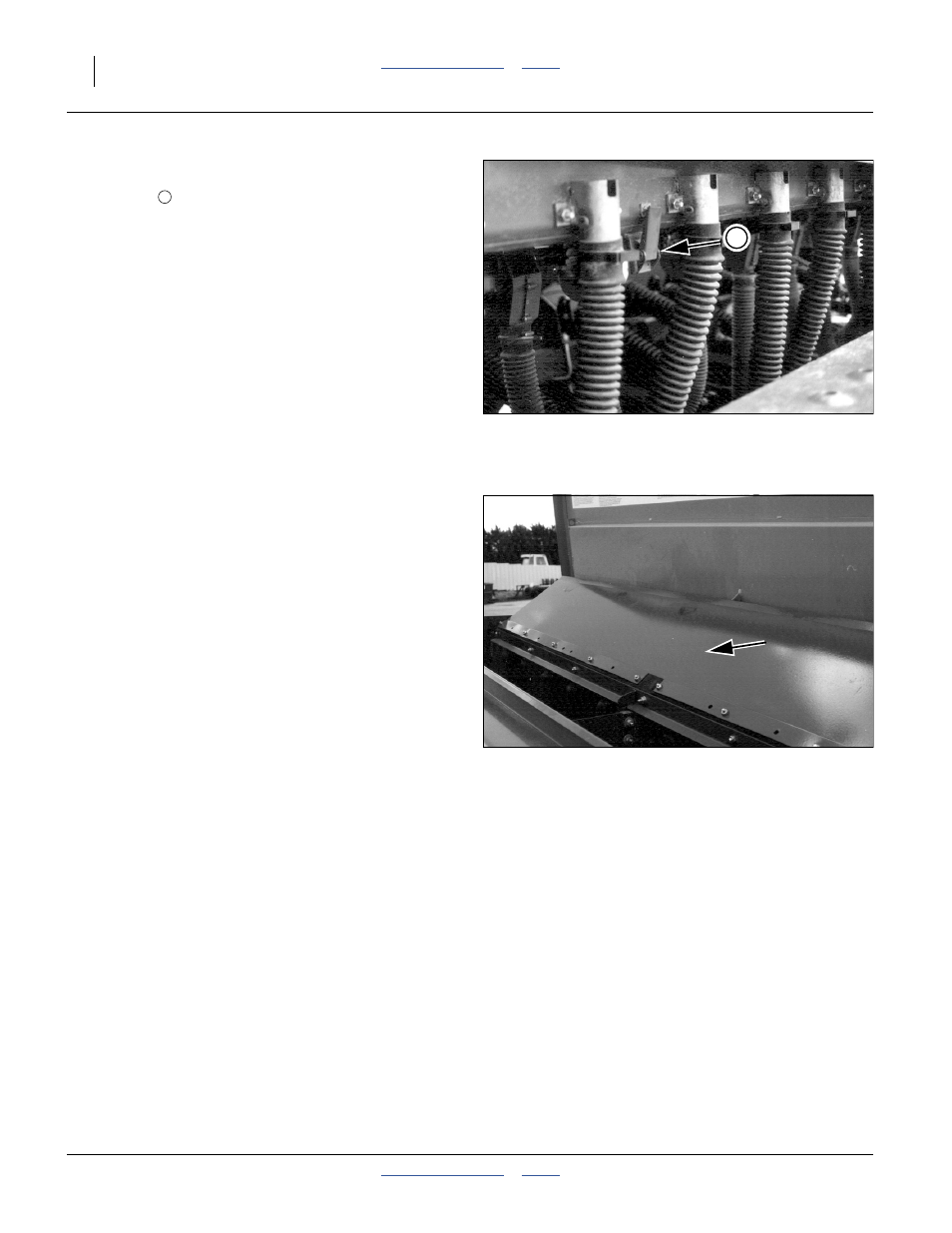

Figure 32
Cleanout Door Latch
16377
1
1
FigureSpacer
Figure 33
Spill Flap Open to Fertilizer
14875
