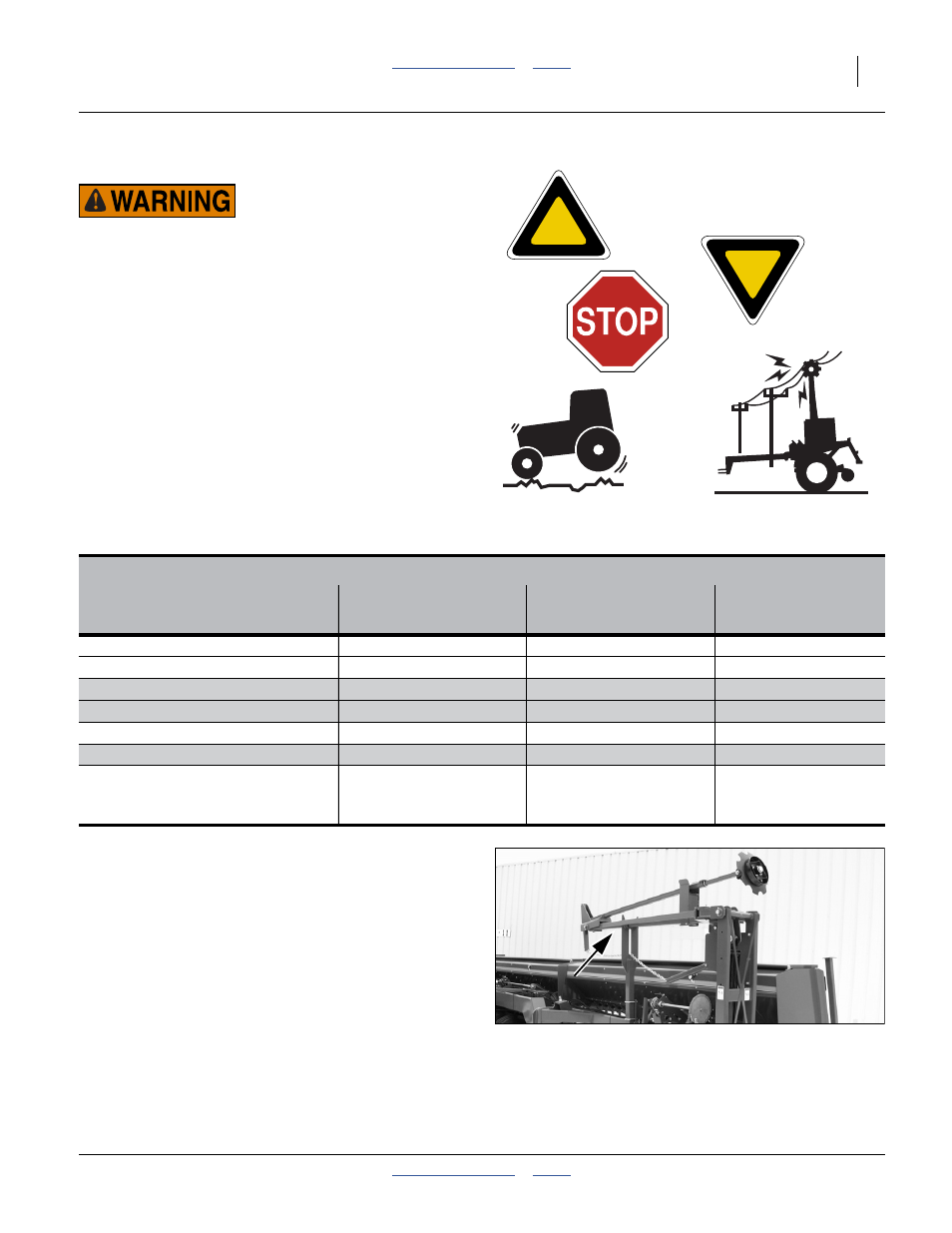

Transport
Loss of Control Hazard:
Towing the drill at high speeds or with a vehicle that is not
heavy enough could lead to loss of vehicle control. Loss of
vehicle control could lead to serious road accidents, injury
and death. To reduce the hazard:
Do not exceed 20 mph (32 kph).
Do not tow a drill that, when fully loaded, weighs more than
1.5 times the weight of the towing vehicle.
In the following table, multiply the total drill weight by
0.67 (
2 ⁄
3
) to determine minimum tractor weight.
Weights for Tractor Requirements
Marker Transportation
Refer to Figure 19
Always transport markers folded flat. Make sure second
marker section rests securely on transport carrier.
Drill Weight (Pounds / Kilograms)
Drill Model
3S-3000-6006
3S-3000HD-6006
3S-3000-4875
3S-3000HD-4875
3S-3000-3610
3S-3000HD-3610
Standard “00” or “HD” Drill 12447 lbs / 5646 kg 12425 lbs / 5636 kg 12409 lbs / 5629 kg
For “F” or “HDF” Model, add... +1051 lbs / +477 kg +1029 lbs / +467 kg +1007 lbs / +457 kg
With Single Markers, add... +456 lbs / +207 kg +456 lbs / +207 kg +456 lbs / +207 kg
With Dual Markers, add... +887 lbs / +402 kg +887 lbs / +402 kg +887 lbs / +402 kg
For Full Main Box Seed Load, add... +5933 lbs / +2691 kg +5933 lbs / +2691 kg +5933 lbs / +2691 kg
Small Seeds +852 lbs / +387 kg +832 lbs / +377 kg +812 lbs / +368 kg
Maximum Configuration: (HDF, Dual
Markers, Seed Loaded, Point Row
Option, 2-Outlet Option)
20464 lbs / 9283 kg 20420 lbs / 9262 kg 20383 lbs / 9245 kg
FigureSpacer
Figure 19
Marker in Transport Cradle
18857
