Refer to Figure 83 and Figure 84
3.
To align the clutch jaws vertically, loosen the two
5 ⁄
16
inch bolts at the bottom of the breakaway
clutch bracket , and adjust the bracket as needed.
4. To adjust clutch jaws for full jaw contact, loosen the
two
5 ⁄
16
inch carriage bolts and slide breakaway
clutch bracket until jaws on the fixed half of clutch
make full contact with jaws on spring loaded half of
clutch without compressing clutch spring.
Note: The two 7 ⁄
8
inch hex shafts should have 1 ⁄
8
inch
(3.2mm) gap between them when the clutch
jaws have full contact.

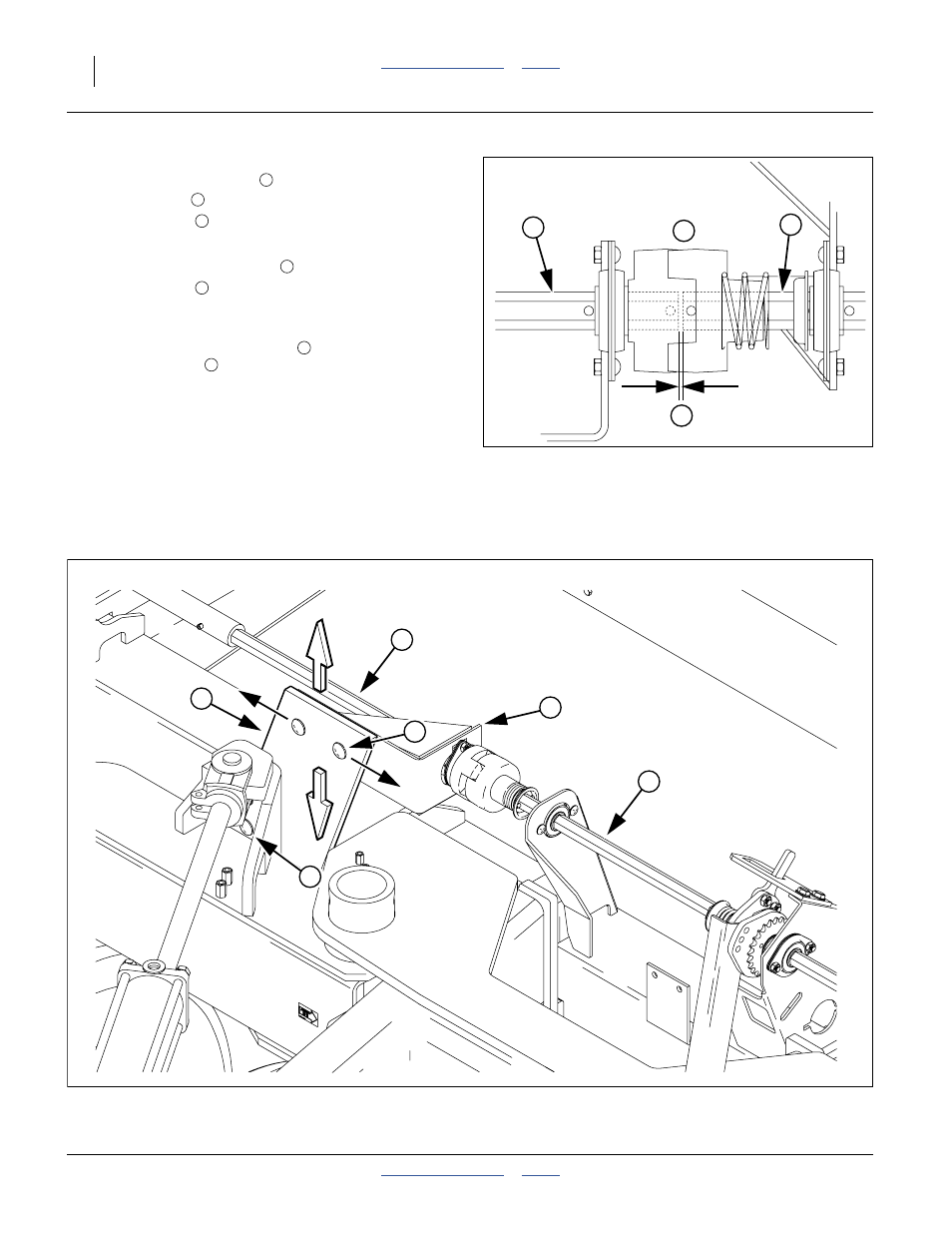

FigureSpacer
Figure 83
Transfer Drive Shaft Gap
