Refer to Figure 4 and Figure 5
1.
Adjust the drill hitch to match your tractor-drawbar
height. Mount tongue jack on side of tongue. Use
jack to raise drill tongue so lowest hitch hole is
18 inches (45.7cm) above ground level with drill
lowered to FIELD position.
Refer to Figure 5
2.
Bolt drill hitch onto drill tongue to match your
tractor-drawbar height. You can turn the hitch over
for a total of six different hitch heights. Always have
two (2) bolts in two holes of both tongue and hitch.
Note: When hitching drill to a different tractor, check for a
difference in drawbar heights. If heights are
different, readjust hitch height accordingly.
3. Securely attach safety chain to an anchor on a
tractor capable of pulling the drill.
FigureSpacer
Refer to Figure 6
4.
Use crank to raise jack foot. Remove pin and jack.
Store jack on top of tongue.
FigureSpacer

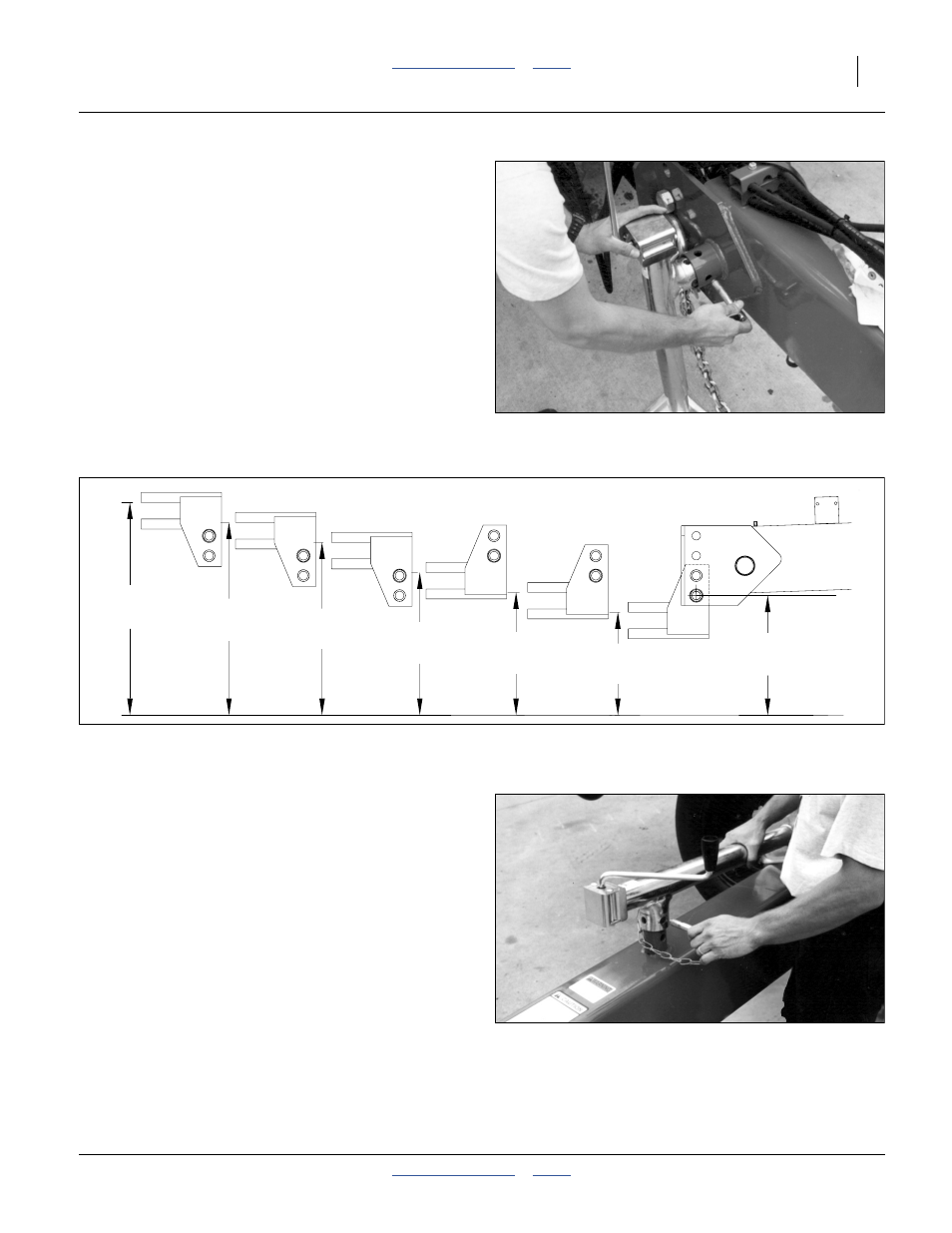

Figure 4
Jack in Lifting Location
15564
FigureSpacer
Figure 5
Heights for Various Hitch Positions - Correct Tongue Height
15623
FigureSpacer
32.0in
81.3cm
FigureSpacer
29.0in
73.7cm
FigureSpacer
26.0in
66.0cm
FigureSpacer 21.5in
54.6cm
FigureSpacer
18.5in
47.0cm
FigureSpacer 15.5in
39.4cm
FigureSpacer
18.0in
45.7cm
FigureSpacer
Figure 6
Jack in Storage Location
15563
