2. Raise openers completely.
Unlock Openers
Refer to Figure 14
1.
Position opener transport lock handles in FIELD
position.
2. Raise openers completely.
Folding
Crushing Hazard:
Bystanders could be crushed between the folding drill boxes
and the drill tongue. To avoid serious injury or death, keep all
bystanders well away during folding operation.
1. Park tractor and drill on level ground with tractor
transmission in Park. Be aware of clearance needed
to fold drill.
2. Fold up markers if installed. See “Marker
Operation” on page 41. Return selector valve
handle to Fold position.
Refer to Figure 15
3.
Opener subframe must be raised for folding. Position
all six opener lock handles in ROAD position and
completely raise openers. See “Raising and
Lowering Openers” on page 23.

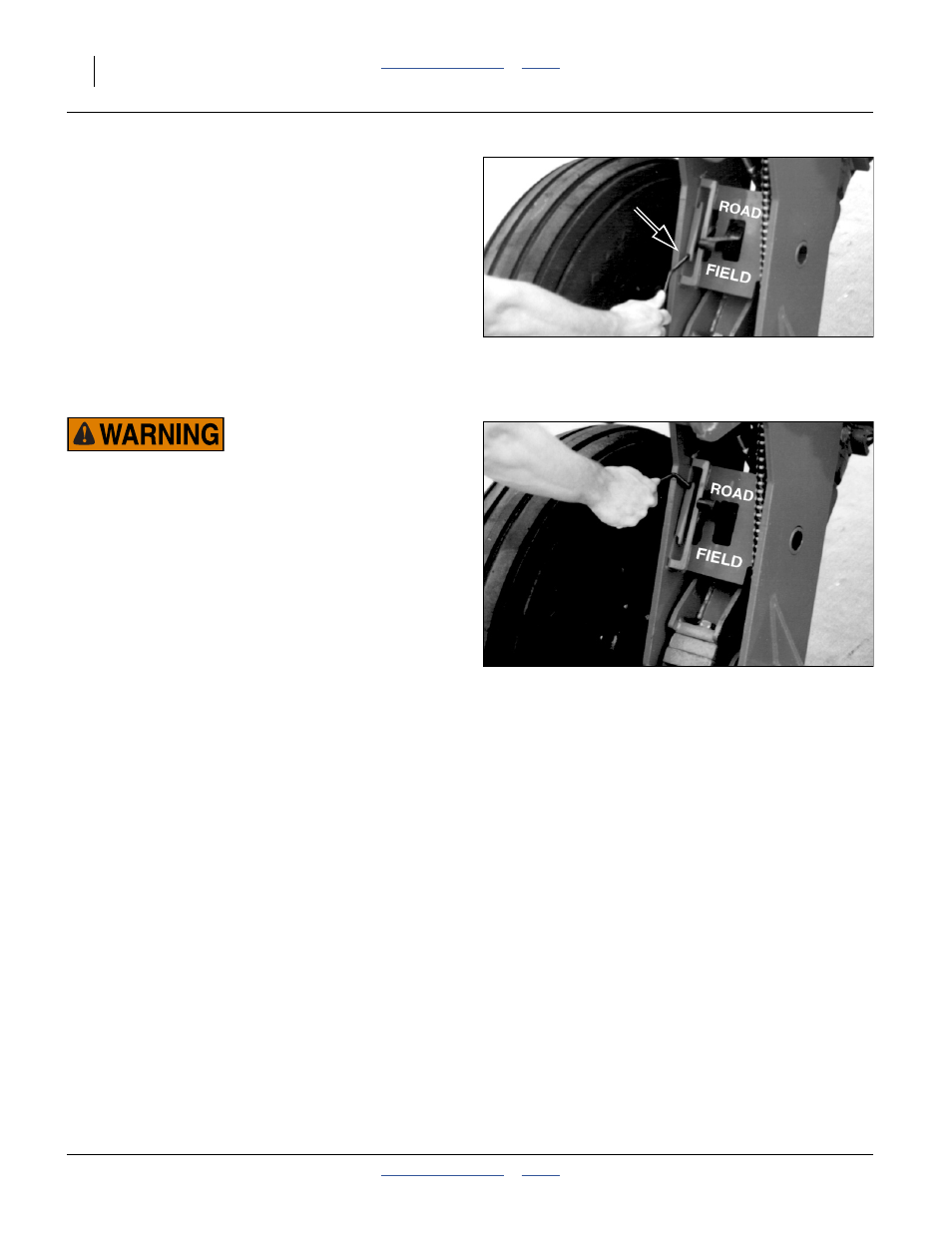

FigureSpacer
Figure 14
Opener Unlock
15548
FigureSpacer
Figure 15 - Fold
Opener Lock Up
15549
