Hydraulic Hose Hookup
High Pressure Fluid Hazard:
Relieve pressure before disconnecting hydraulic lines.
Escaping fluid under pressure can have sufficient pressure to
penetrate the skin causing serious injury. Use a piece of paper
or cardboard, NOT BODY PARTS, to check for leaks. Wear
protective gloves and safety glasses or goggles when working
with hydraulic systems. If an accident occurs, seek immediate
medical attention from a physician familiar with this type of
injury.

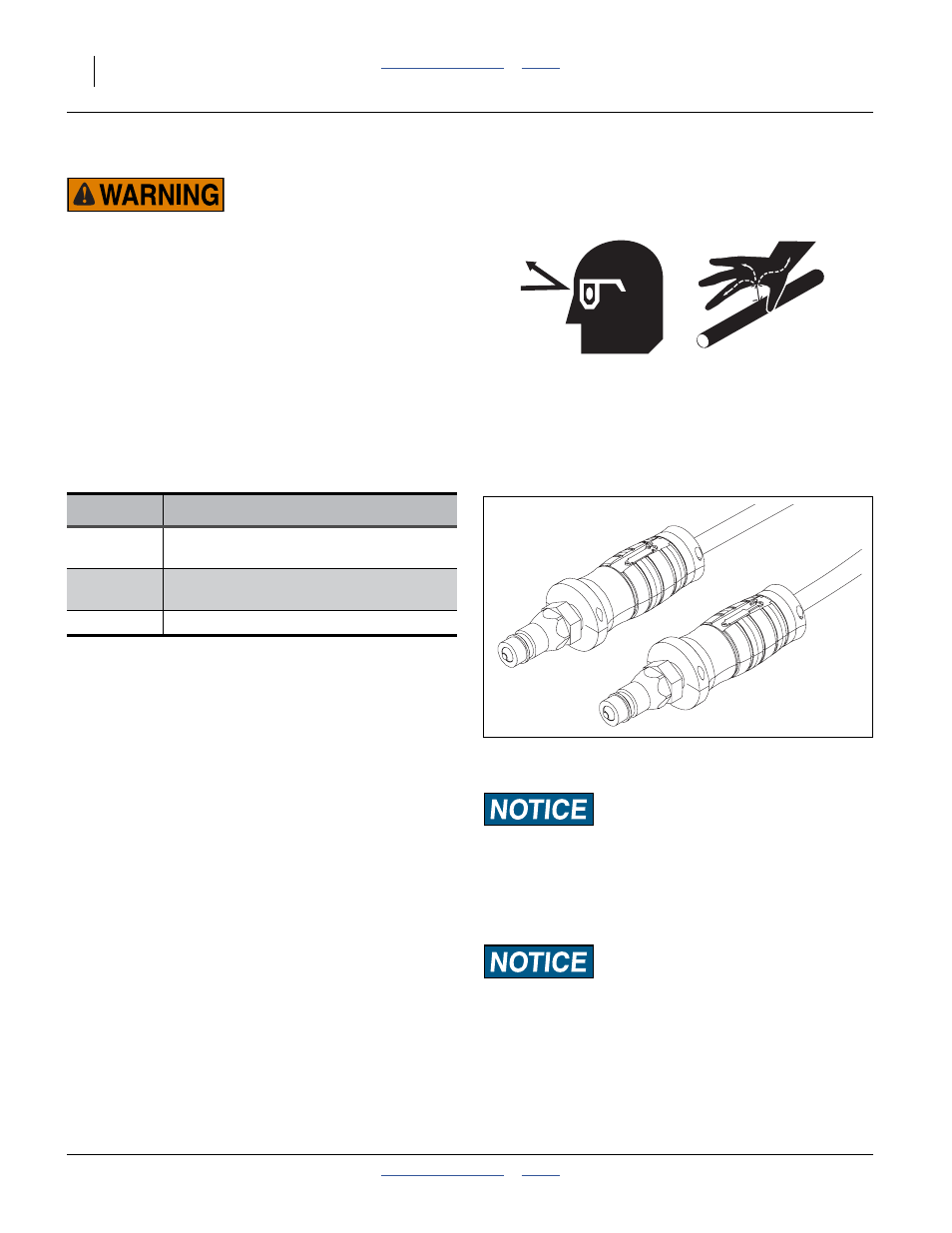

Refer to Figure 4
Great Plains hydraulic hoses have color coded handle
grips to help you hookup hoses to your tractor outlets.
Hoses that go to the same remote valve are marked with
the same color.
Color Coded Hose Handles
To distinguish hoses on the same hydraulic circuit, refer
to the symbol molded into the handle grip. Hoses with an
extended-cylinder symbol feed cylinder base ends.
Hoses with a retracted-cylinder symbol feed rod ends.
Connect fold hoses to suitable tractor remote valves.
With optional down-pressure, the circuit must be capable
of continuous flow.
For hydraulic fan and drive motors, connect the hose
under the retracted cylinder symbol to the pressure side
of the motor. Connect the hose under the extended
cylinder symbol to the return side of the motor.
The fan motor further requires hookup of three lines, one
of which returns hydraulic fluid from the fan motor case.
Protecting Fan Hydraulic Motor Seals
Low Pressure (Case) Drain Connection
1. Attach case drain hose to low pressure drain
connection.
Note: Case drain hose has the smaller
1 ⁄
4
inch I.D. hose
and small, flat-face, connector.
2. Connect low pressure motor return hose to low
pressure return connector. It is distinguished by a
large (1.06 inch/2.7 cm diameter) quick coupler.
3. Connect pressure hose to tractor remote.
Color Hydraulic Function
Black Fan pressure and return
(Case drain has no handle.)
Blue Wing down float or down pressure
Lift-assist (Option)
Gray Fold Cylinders
Motor Seal Damage Risk:
Case Drain Hose must be attached first,
prior to inlet and return hoses being connected.
Case Drain Hose must be detached last,
to prevent damage to the fan motor.
Hydraulic Motor Performance Risk:
DO NOT hook case drain line to a “power-beyond port”.
Figure 4
Color Coded Hose Handles
31733
