Re-Install Wind Shields
Refer to Figure 49
132. For each row, select one new:
817-806C SMALL SEEDS CUP WIND SHIELD
Insert the bottom edge of the rear face of the
shield
into the funnel. Snap the ears into the
inside vertical grooves of the meter cup.
Close-Out
133. See Operator Manual. Hitch and raise drill. Lower
the openers. Rotate gauge wheels. Check that all
drives and box meter shafts are rotating freely.
134. Close lids on all seed boxes.
135. See page 25. Set Small Seeds rate adjusters to 0 to
discourage pest entry and prevent seed loss in
transport.

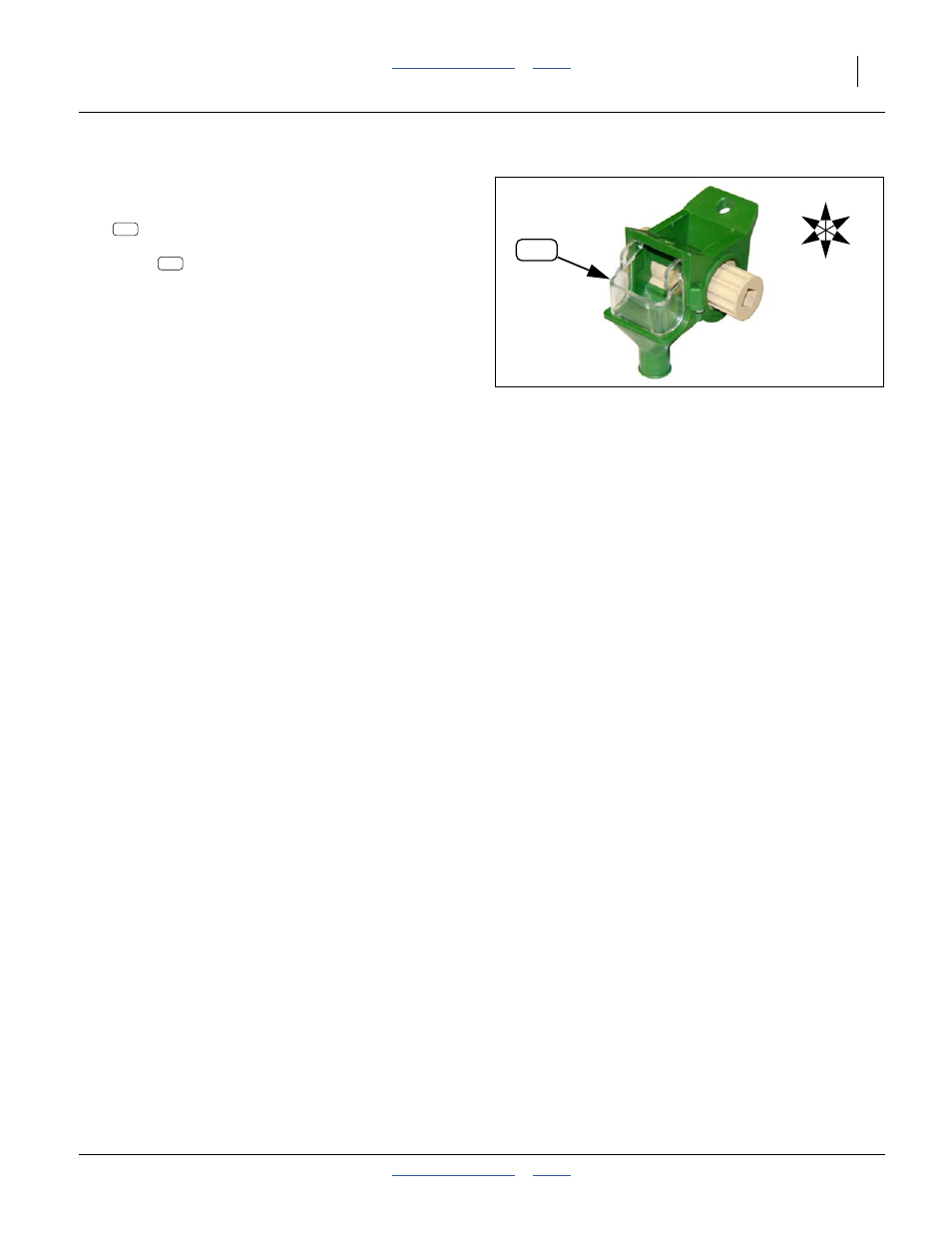

Figure 49:
817-806C Wind Shield Installed
34582
258
U
D
R
F
B
L
258
258
