Great Plains Manufacturing, Inc.
Installation Instructions
7
2013-07-30
133-415M
Remove Section Centers Fittings
Center Section: Remove SMV
Refer to Figure 7
14. Remove and save two sets of fasteners:
803-006C NUT HEX 1/4-20 PLT
804-006C WASHER LOCK SPRING 1/4 PLT
802-004C HHCS 1/4-20X3/4 GR5
and one:
818-055C DECAL SLOW MOVING-GALV. BACKED
The SMV is re-installed at step 131 on page 30.
15. Remove four sets of fasteners:
803-199C NUT HEX FLANGE 5/16-18 PLT
802-387C HFS 5/16-18X3/4 GR5
and two:
195-420D DECAL BRACKET
The brackets are not re-used. The fasteners are
replaced with identical new parts from the kit.
Wings: Remove Fasteners
16. At the rear center of each wing box, remove four
sets:
803-199C NUT HEX FLANGE 5/16-18 PLT
802-387C HFS 5/16-18X3/4 GR5
These fasteners are replaced with identical new
parts from the kit.
17. At the inside end of each wing box, remove and
save two sets:
803-169C NUT HEX FLG LOCK 1/2-13 PLT
802-203C HFSS 1/2-13X1 1/2 GR5
19
23
14
U
D
B
F
R
L
30
16
24
20

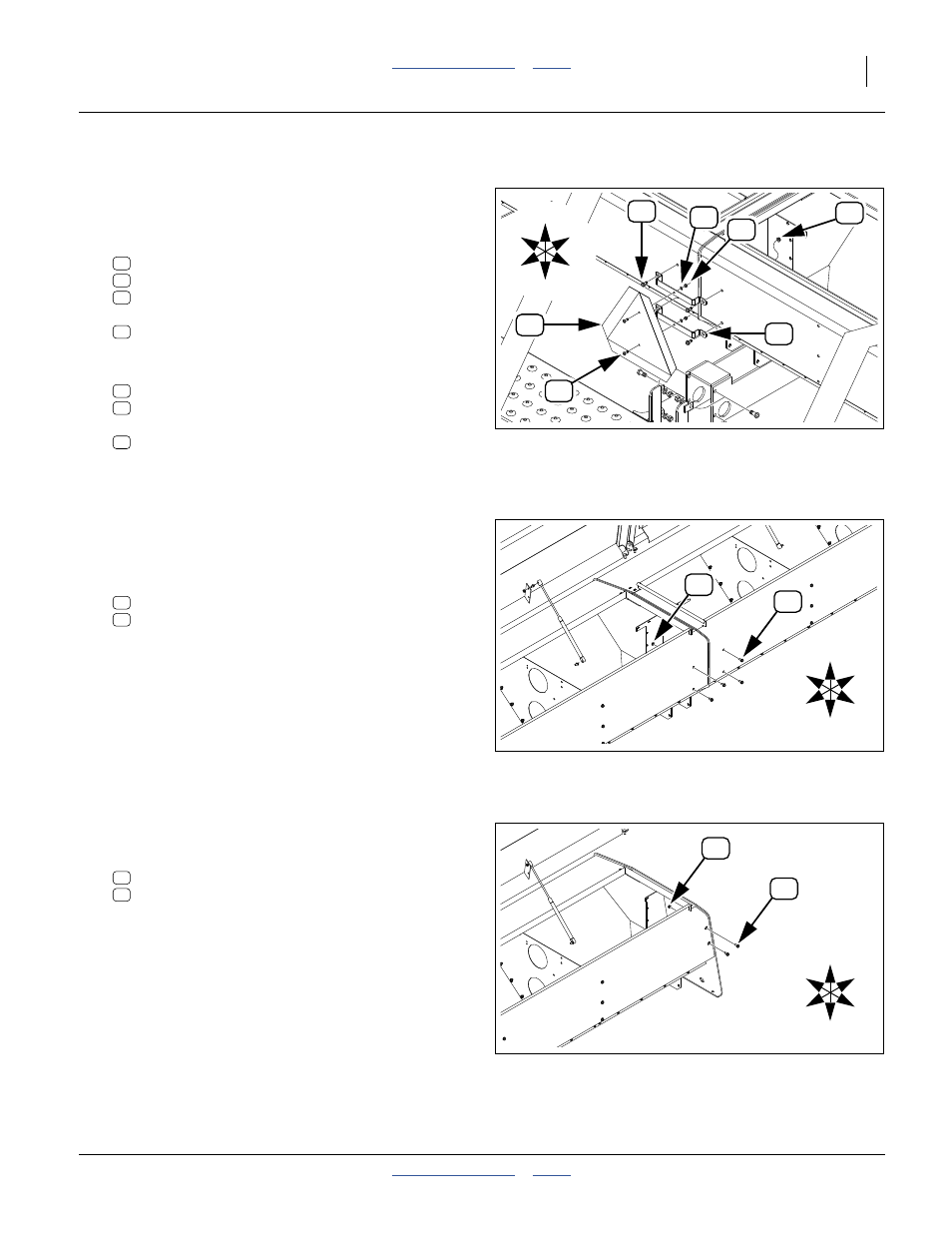

Figure 7:
Remove SMV
34306
20
24
16
30
23
19
14
19
23
U
D
L
R
B
F
Figure 8:
Remove Center Fasteners
34585
23
19
18
22
U
D
L
R
B
F
Figure 9:
Remove End Fasteners
34585
22
18
