Install Mounts & Meter Drives
Install Left Mounts
Begin with the left drill section.
Refer to Figure 12
26. At the lower rear left corner of the seed box side
wall
, remove one set:
803-020C NUT HEX 1/2-13 PLT
804-015C WASHER LOCK SPRING 1/2 PLT
802-034C HHCS 1/2-13X1 1/4 GR5
These fasteners are not re-used.
27. Select one new:
133-380H SML SDS LH MOUNT WLDM
and two sets new or saved:
802-034C HHCS 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
28. Position the mount
over the lower holes and
drop the two bolts
in the holes to verify
alignment. Add a lock washer
and spin on a
nut
, finger tight.
29. Select two new:
802-203C HFSS 1/2-13X1 1/2 GR5
and two saved:
803-169C NUT HEX FLG LOCK 1/2-13 PLT
30. Using a flanged bolt
and flanged lock nut
,
secure the top end of the mount
to the left rear
corner of the main seed box where the handles,
manual pak or lights were formerly mounted on the
box.
31. Tighten all fasteners to torque specifications.
Note: The handles, manual pak and lights are not
re-installed at this time.
Repeat step 26 through step 31 for the center and right
drill sections.
137
1
21
194
25
17
227
213
202
U
D
B
F
R
L
227
213
194
22

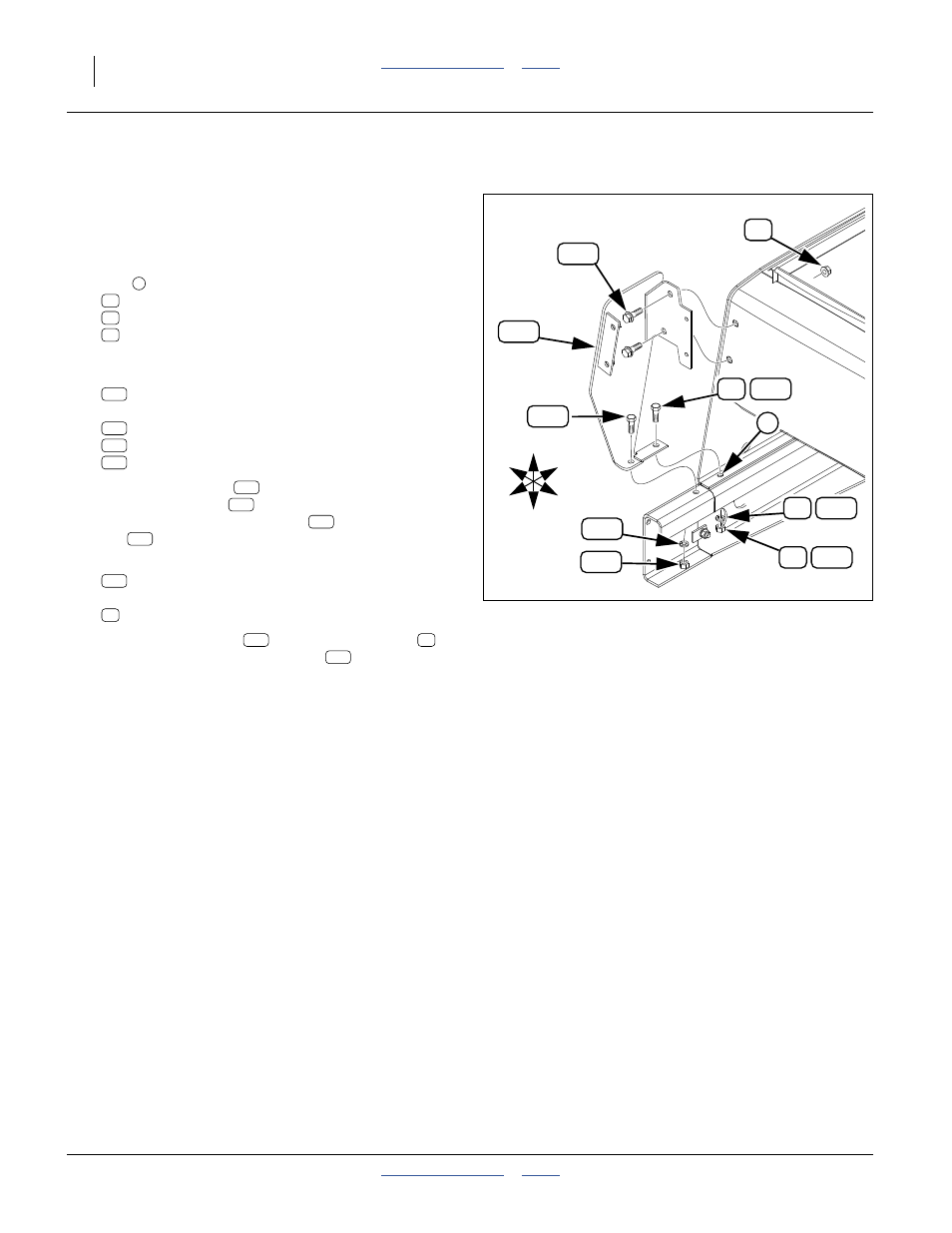

Figure 12:
