Install Guards and Corner Fittings
The new guards mount under the old corner fittings. If
the removed and saved bolts and nuts are not of the
flanged type, also re-install the washers removed with
them. The location of the washers is shown in the
Figures, but without callout numbers.
Start with the left section:
Left Box End Fittings
Refer to Figure 41,
which depicts the left section box without a manual pak.
109. Select one saved:
119-190D HANDLE
and if it was present, one saved:
248-251D MANUAL PAK MOUNTING PLATE
110. Select two new or saved:
802-203C HFSS 1/2-13X1 1/2 GR5
and four new:
804-016C WASHER FLAT 1/2 SAE PLT
or HHCS bolts, flat washers and plain nuts.
111. Select one new:
123-491D HANDLE MOUNT LH CHAIN GUARD
Position it on the left small seed box mount. Position
the manual pak mount
(if any), then the
handle
, and secure with bolts
, nuts
and
washers (if any).
U
D
L
R
B
F
111
22
18
11
228

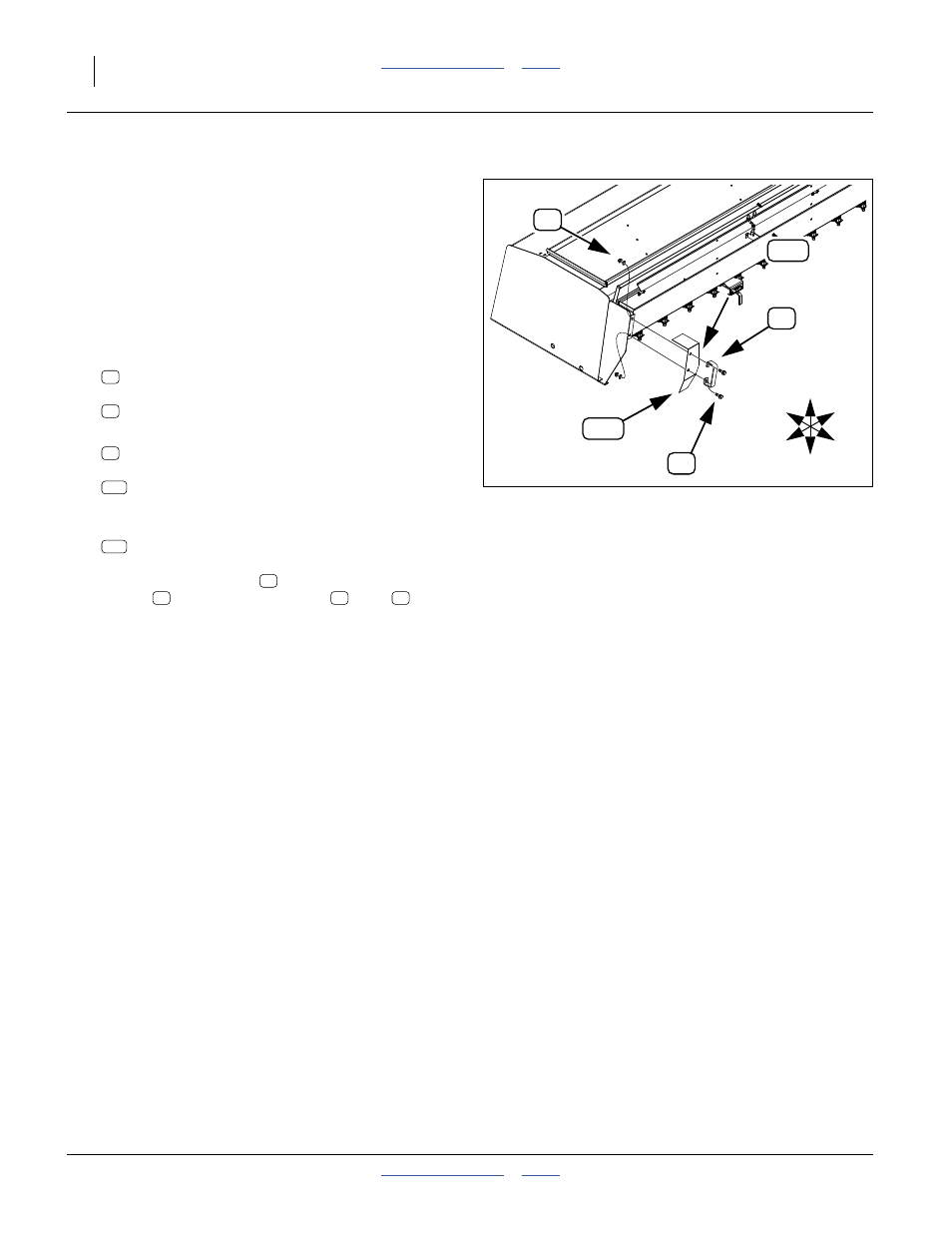

Figure 41:
Mount L. Guard, Corner Fittings
27435
11
15
18
228
111
15
11
18
22
