84 3P1006NT Table of Contents Index Great Plains Manufacturing, Inc.
151-144M Table of Contents Index 2011-12-20
Attach Lift-Assist Frame Mount
Refer to Figure 57
Frame Mount Weldment
17. Select one each:
151-179H LIFT ASSIST FRAME MNT WLDMNT
Select eight each bolts, washers, nuts:
802-053C HHCS 5/8-11X1 3/4 GR5
803-021C NUT HEX 5/8-11 PLT
804-022C WASHER LOCK SPRING 5/8 PLT
804-195C WASHER FLAT 1.31ODX.65IDX.188T
Attach mount weldment to holes provided in drill
frame.
Mount Clamp and Long Spacers
18. Select two each:
151-384D LIFT ASSIST MOUNT CLAMP SPACER
Select one each:
151-180H LIFT ASSIST MOUNT CLAMP WLDMNT
Select eight each:
802-057C HHCS 5/8-11X2 1/4 GR5
803-021C NUT HEX 5/8-11 PLT
804-022C WASHER LOCK SPRING 5/8 PLT
Position both clamp spacers . Place lift assist
mount clamp weldment on top of spacers.
Secure with bolts, washers and nuts.
Attach Lift-Assist Bolt On Mount
19. Select one:
151-172H LIFT ASSIST BOLT ON MOUNT
20. Select ten each:
802-055C HHCS 5/8-11X2 GR5
804-022C WASHER LOCK SPRING 5/8 PLT
803-021C NUT HEX 5/8-11 PLT
Attach lift assist bolt on mount to frame mount
weldment using bolts, washers and nuts.

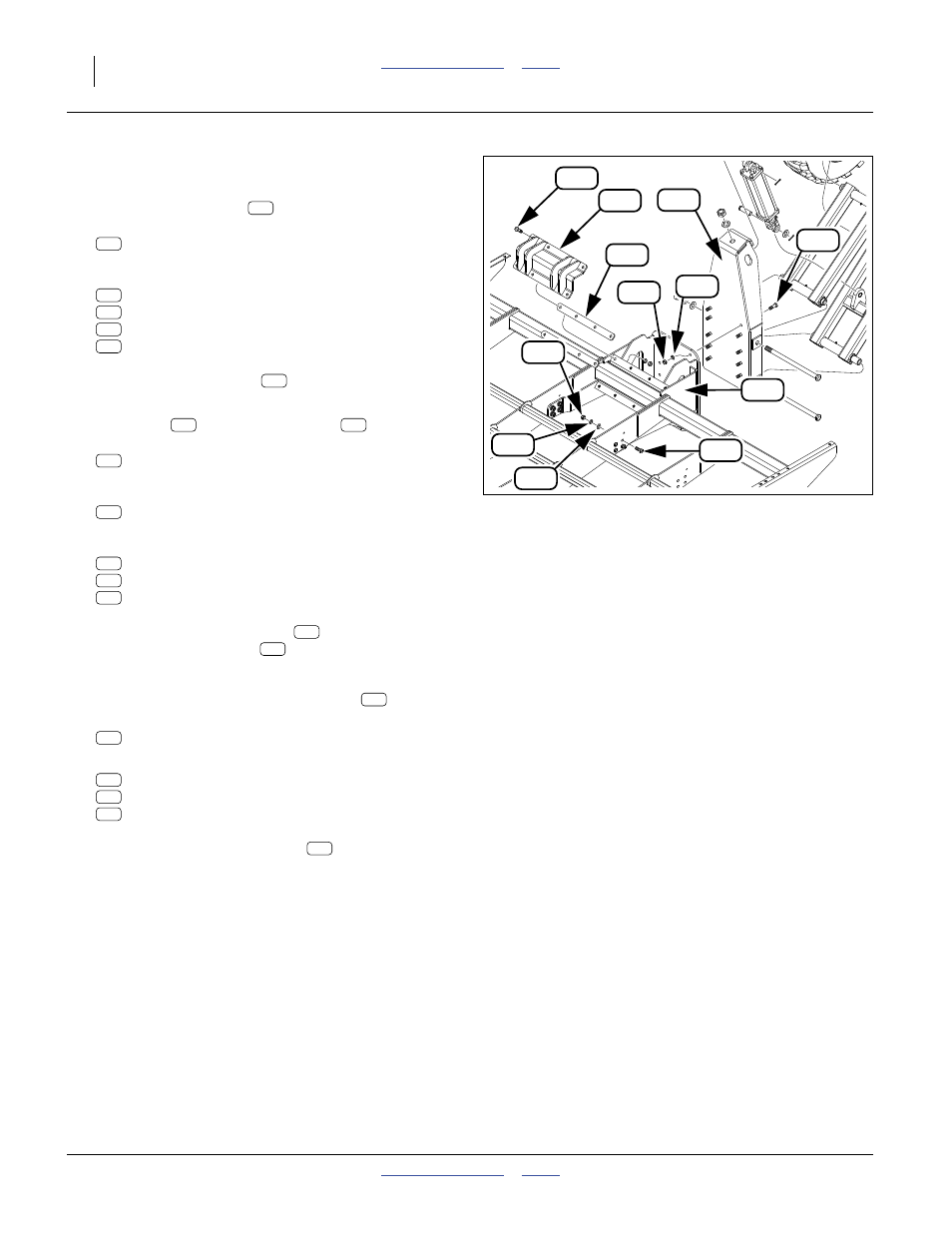

Figure 57
Install Frame Mount Weldment
and Bolt On Mount
32068
118
114 111
138
148
159
137
113
136
148
159
163
113
113
136
148
159
163
113
114 118
118
114
138
148
159
118
114
111
111
137
159
148
111
