Chain Routing
Striped arrows show chain direction.
“T” callouts show sprocket and idler tooth counts.
“P” callout show chain pitch count.

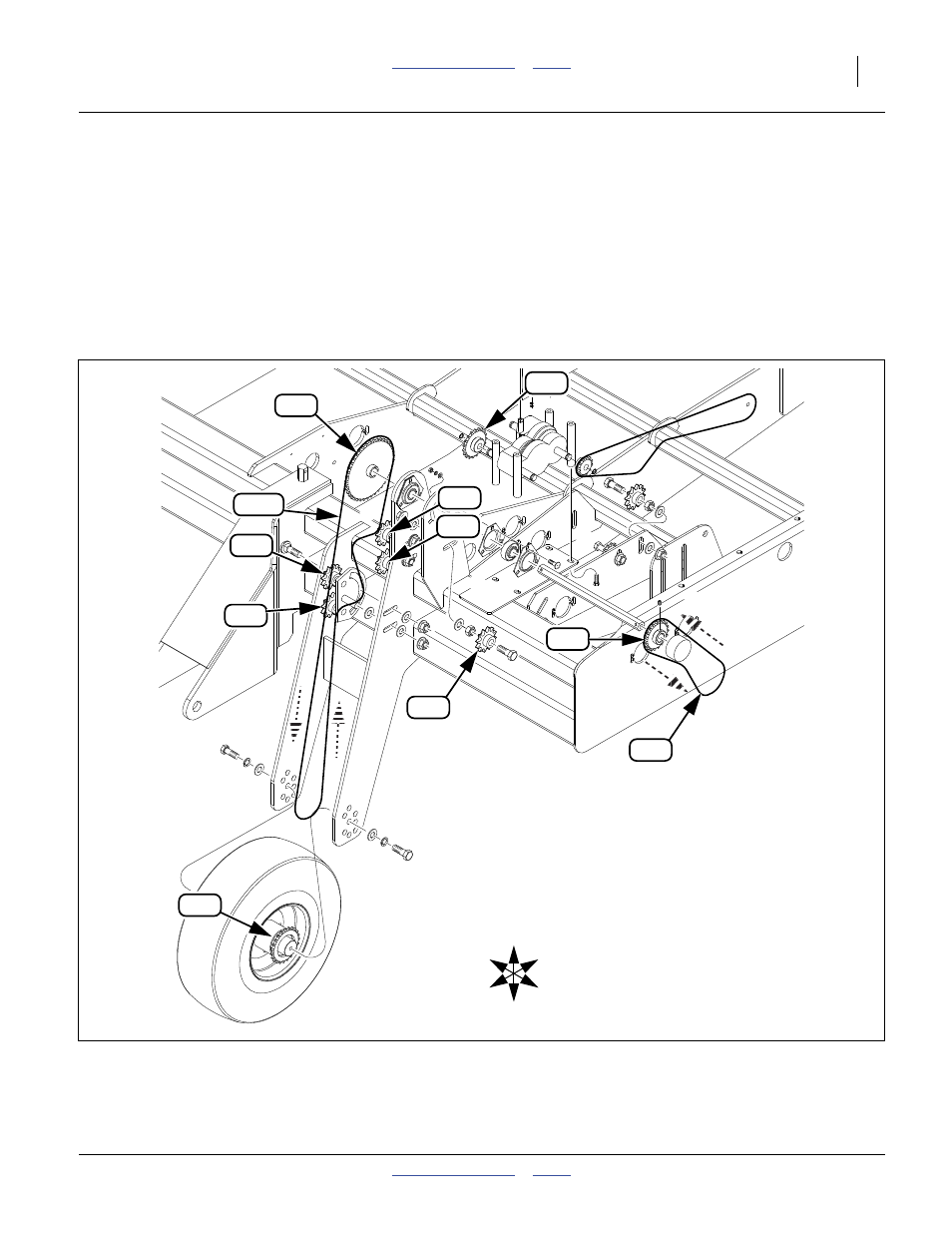

Standard (Left) Ground Drive to Gearbox
This assembly drives the Main Seed Box (via the
gearbox), and if installed, the optional Main Box Agitator,
Fertilizer attachment, and/or Small Seeds attachment.
See “Left Gearbox to Main Seed Box Meters” on
page 68 for gearbox output chain routing.
28279
23T
12i
12i
12i
41T
12i
12i
19T
19T
58P
186P
U
D
F
B
L
R
