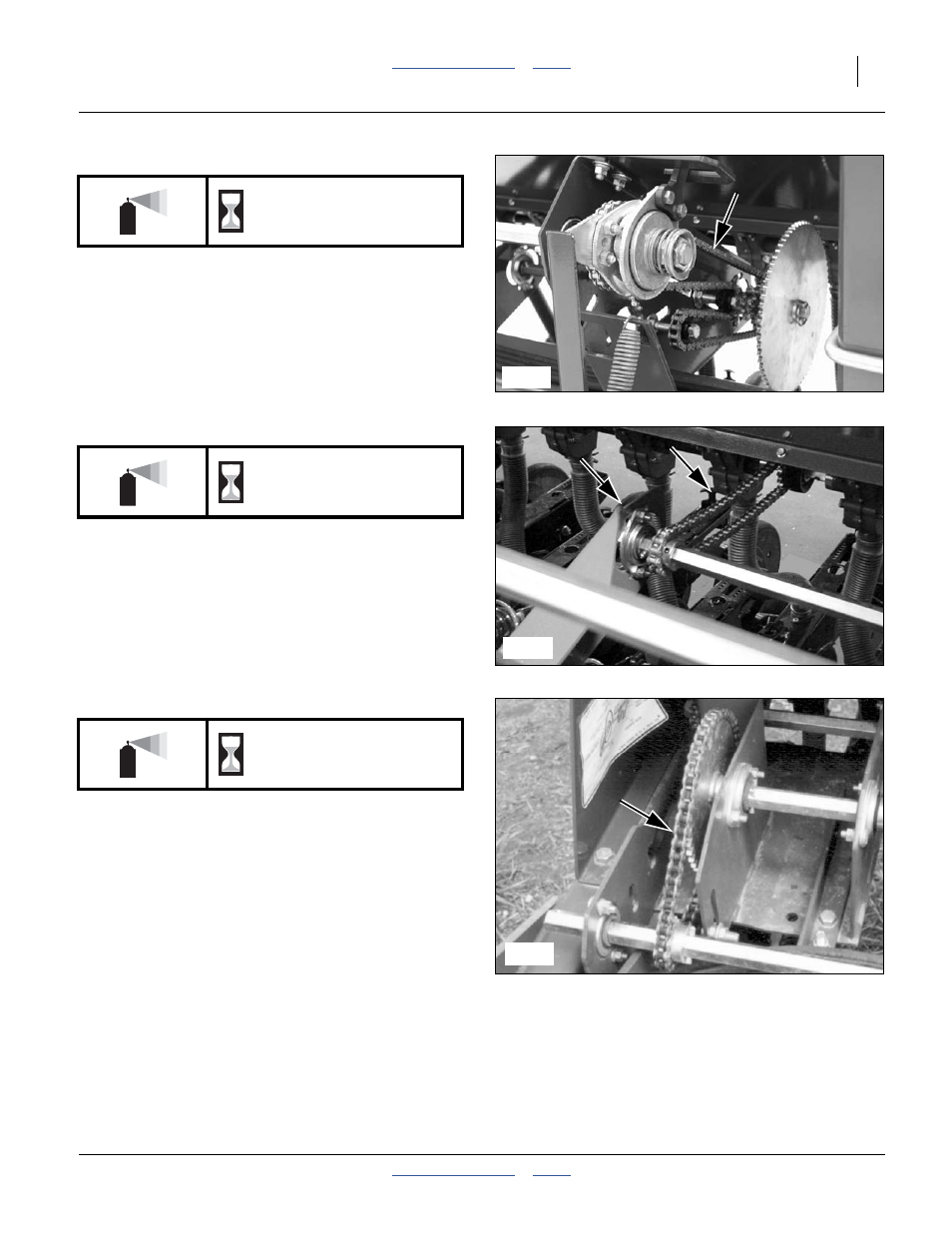

Clutch to Seed Jackshaft Chain
1 chain per section; 3 total
Type of Lubrication: Chain Lube
Quantity: Coat thoroughly
Slack:
1 ⁄
4
inch (7 mm) in top span
Seed Jackshaft to Meter Shaft Chain
1 chain per section; 3 total
Type of Lubrication: Chain Lube
Quantity: Coat thoroughly
Slack:
1 ⁄
2
inch (13 mm) in top span
To remove slack, loosen bolts securing adjacent bearing
flangette. Move flangette to obtain desired slack, and
tighten bolts.
Clutch Shaft to Fertilizer Range Chain
Option: 1 chain per section; 3 total
Type of Lubrication: Chain Lube
Quantity: Coat thoroughly
Slack:
1 ⁄
4
inch (7 mm) in top span
As Required
18856
As Required
18864
As Required
16379
