Introduction
Great Plains welcomes you to its growing family of new
product owners. Your Three-Section Folding HD Drill has
been designed with care and built by skilled workers
using quality materials. Proper setup, maintenance, and
safe operating practices will help you get years of
satisfactory use from the machine.
Document Family
Description of Unit
The 3S-4000HD and 3S-4000HDF is a towed seeding
implement. This three section drill has a working width of
40 feet (12.2 m). The drill has straight arm, double disk
heavy duty openers. The opener disks make a seed bed,
and seed tubes mounted between the disks place seed
in the furrow. Press wheels following the opener disks
close the furrow and gauge opener seeding depth. A
T-handle on the opener body is for seeding depth
adjustments. Seeding rates are adjustable with the seed
rate adjustment handle and sprocket changes.
The 3S-4000HD/HDF features active hydraulic down
pressure on the opener frames. When used on a tractor
with closed-center hydraulics, constant down pressure
ensures even opener penetration in uneven ground.
Hydraulic down pressure is adjustable at a single point.
Intended Usage
Use this implement to seed production-agriculture crops
in conventional or minimum tillage applications.
Models Covered
195-067M Operator manual (this document)
195-067P Parts manual
195-325B Seed & Fertilizer Rate manual
195-067Q Dealer Pre-Delivery manual
3S-4000HD-4810 48-Row 10-Inch spacing
3S-4000HD-6375 63-Row 7.5-Inch spacing
3S-4000HD-7806 78-Row 6-Inch spacing
3S4000HDF-4810 48-Row 10-in. with Fertilizer
3S4000HDF-6375 63-Row 7.5-in. with Fertilizer
3S4000HDF-7806 78-Row 6-in. with Fertilizer

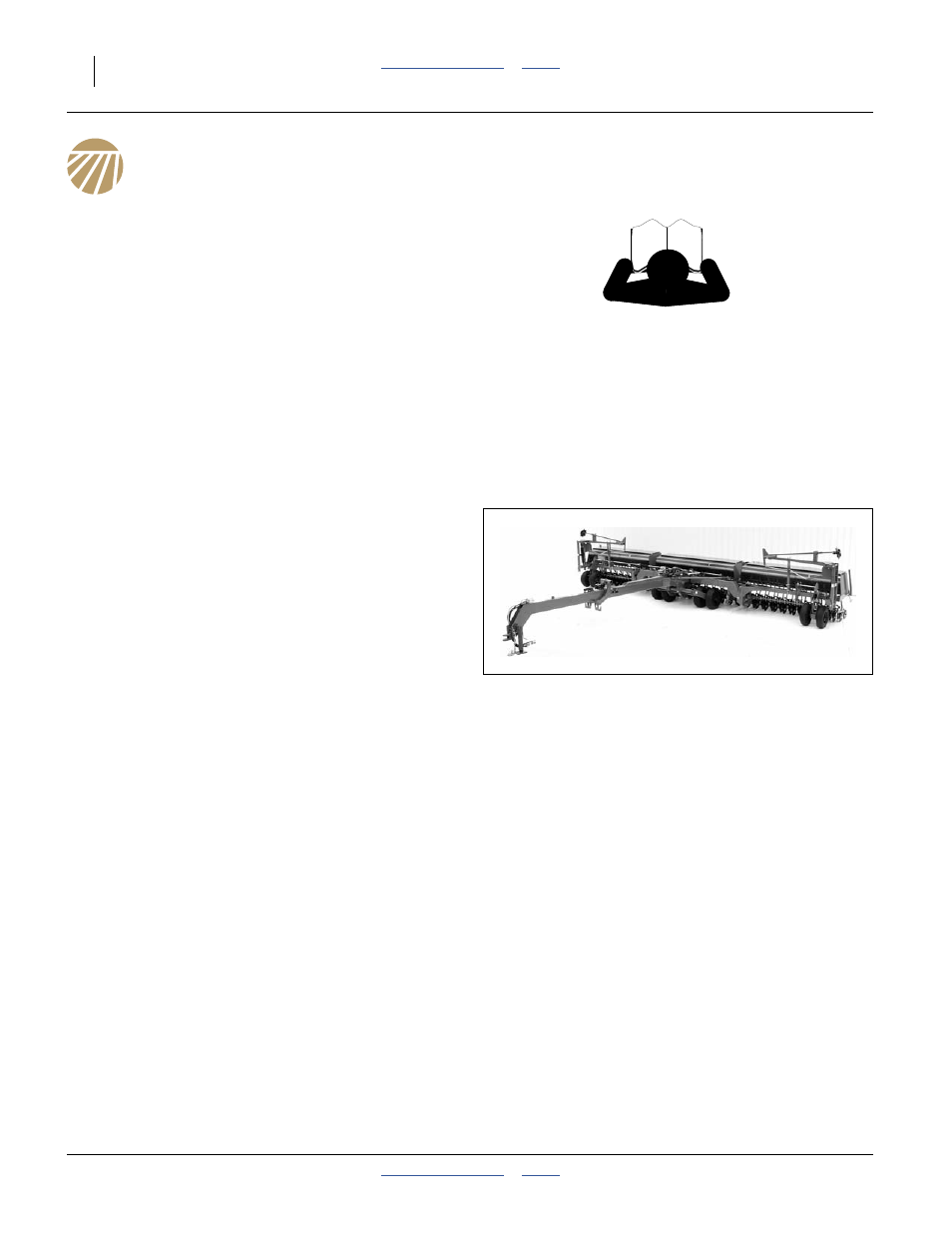

Figure 1
3S-4000HD/HDF Drill
18843
