Great Plains Manufacturing, Inc.
Preparation and Setup
21
2013-06-13
195-067M
Older Color Hose Ties
Refer to Figure 11
On older drillsm to distinguish hoses on the same
hydraulic circuit, refer to plastic hose label. The hose
under an extended-cylinder symbol feeds a cylinder base
end. The hose under a retracted-cylinder symbol feeds a
cylinder rod end.
Great Plains hydraulic hoses are color coded to help you
hookup hoses to your tractor outlets.Hoses that go to the
same remote valve are marked with the same color.
1.
Connect opener-lift hoses to circuit designated for
hydraulic-motor control.
2.
Connect transport-lift hoses to tractor remote valve.
3.
Connect fold hoses to tractor remote valve.
4.
Connect marker hoses to tractor remote valve.
Note: If your tractor has only two remote valves, you must
install a double-selector valve to combine the
transport-lift and opener-lift circuits. See “Two
Outlet Hydraulic Kit” on page 98.
Check Drill Level
These items are set and verified at the factory or by your
dealer, but need to be checked prior to first use.
• “Center Box Frame Leveling” on page 80
• “Wing Box Alignment” on page 81
• “Align Transfer Drive Shaft” on page 82
• “Truss Tube Tension” on page 84
• “Tool Bar Height” on page 84
• “Opener-Frame Clearance” on page 85
Color
Hydraulic Function
Red
Opener Lift Cylinders
Blue
Transport Lift Cylinders
White
Fold Cylinders
Orange
Marker Cylinders
Equipment Damage Risk:
To run drill on tractors with open-center hydraulics or on
tractors with fixed-displacement hydraulic pumps, you must
install a Great Plains kit, part number 194-143A. If you are
not familiar with your tractor hydraulics, consult your tractor
dealer.

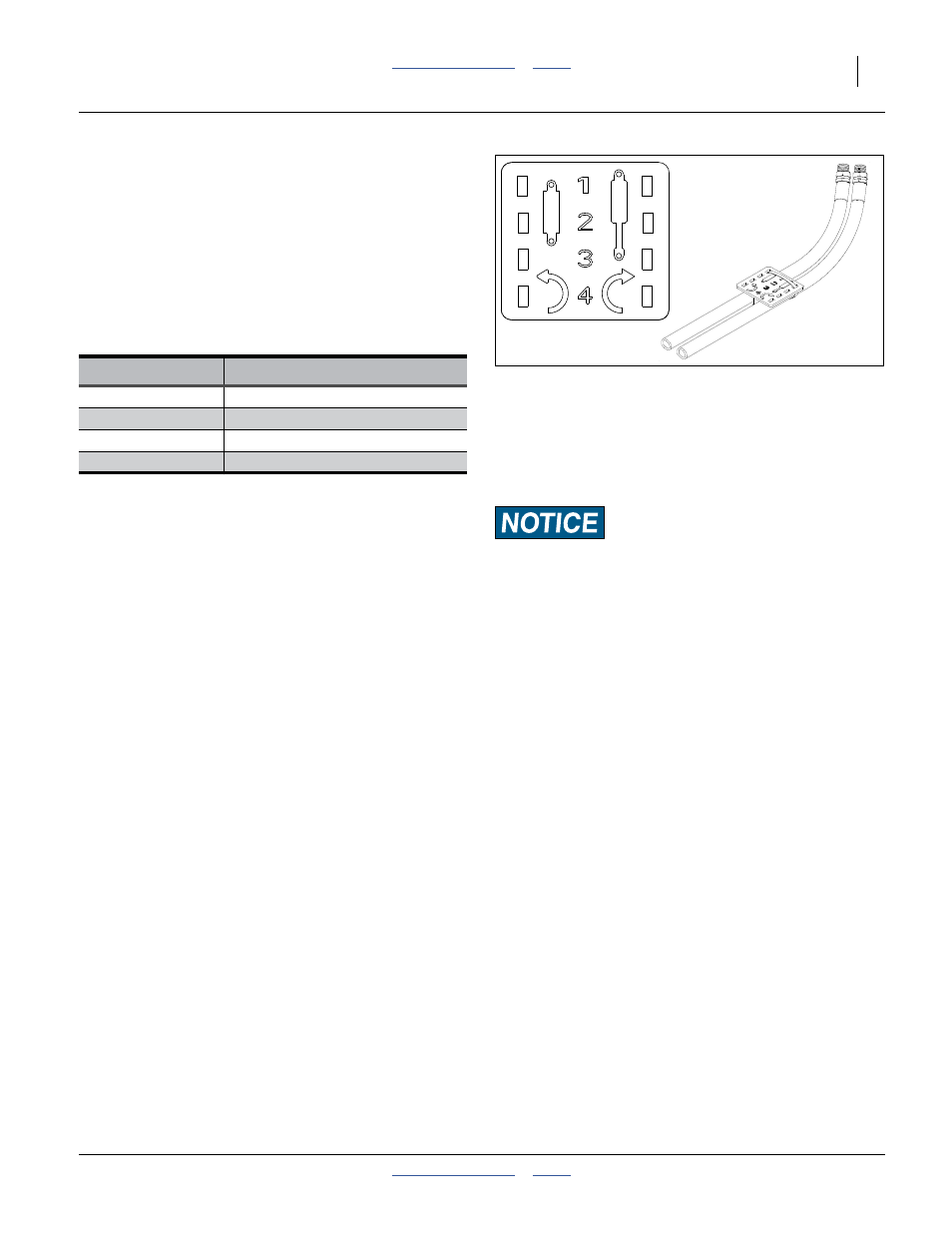

Figure 11
Plastic Hose Label
817-348c
17641
