Electrical Connections
Refer to Figure 7
Plug drill electrical lead into tractor seven-pin connector.
If your tractor is not equipped with a seven-pin connector,
contact your dealer for installation.
Refer to Figure 8 (connector styles and pin count vary with
monitor vintage - current Loup style shown)
If the drill is equipped with the optional shaft monitor,
mate the connector for the cab display.
See “Shaft Monitor” on page 101 for ordering
information.
Refer to Figure 9
If the drill is equipped with the point row option, mate the
connector for the cab control.
See “Point Row Clutch” on page 99 for ordering
information.

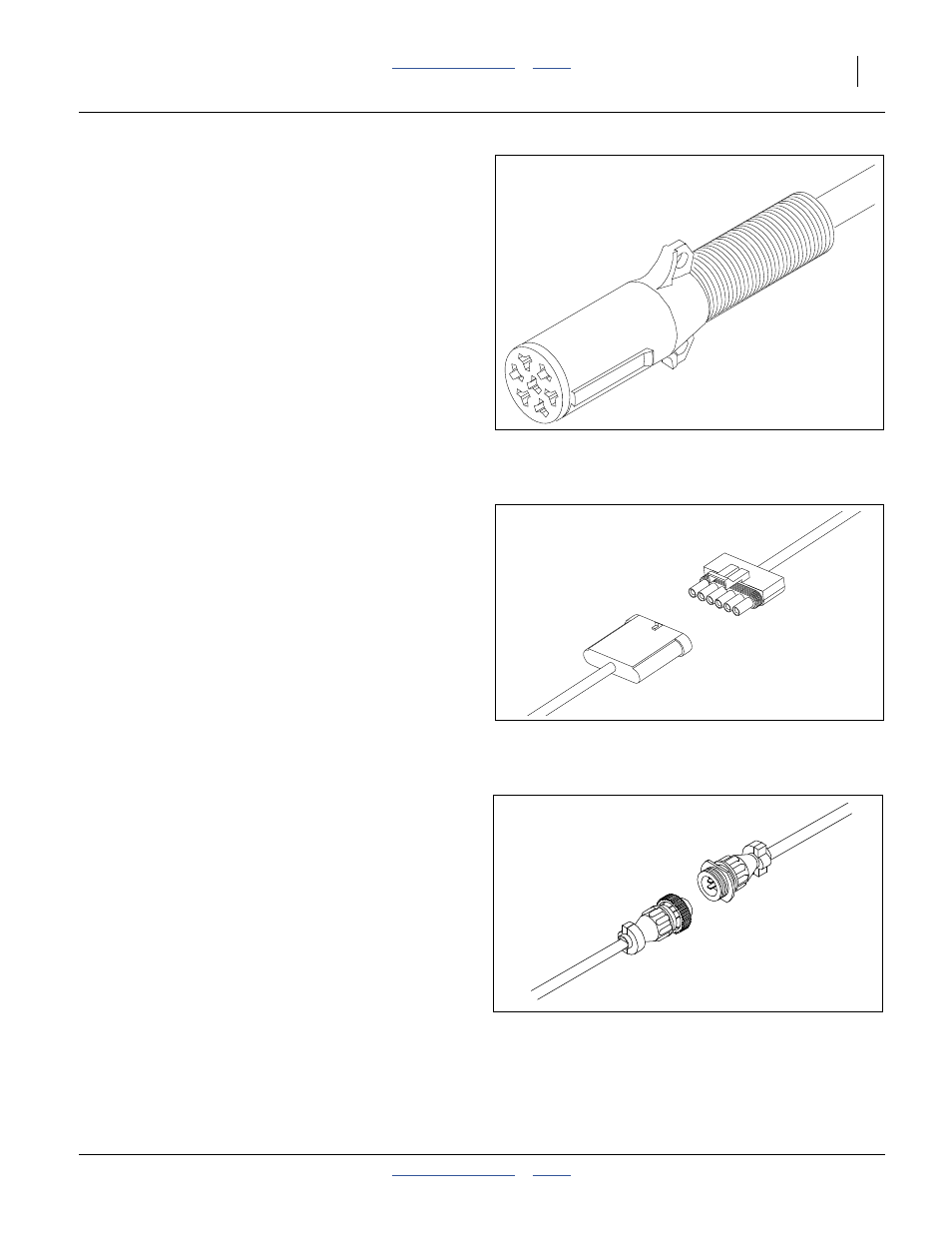

Figure 7
Lighting Connector
26467
Figure 8
Shaft Monitor Connector
34222
Figure 9
Point-Row Connector
26469
