Transport Lower
1.
Park tractor and drill on level ground with tractor
transmission in Park. Be aware of clearance needed
to unfold drill.
2.
If the Two Outlet conversion kit is installed, confirm
that the selector valve, located near the hitch, is set
for Transport Lift operations. See “Lift Selector
Valve Operation” on page 44.
3.
Slowly extended the Transport Lift circuit lever until
all three Transport Lift circuit cylinders are fully
extended (2 at transport wheels; 1 at transport hooks
on tongue). Set circuit lever to off (not neutral).
Refer to Figure 25
4.
Rotate cylinder lock channels down and forward off
transport lift cylinders.
Refer to Figure 26
5.
Rotate cylinder lock channel up and forward off front
box lift cylinder.
6.
Slowly reverse the lift circuit lever and begin lowering
the drill. Keep the circuit engaged until all three
cylinders are completely retracted. Set circuit to off
or neutral.
The drill is now ready for unfolding.

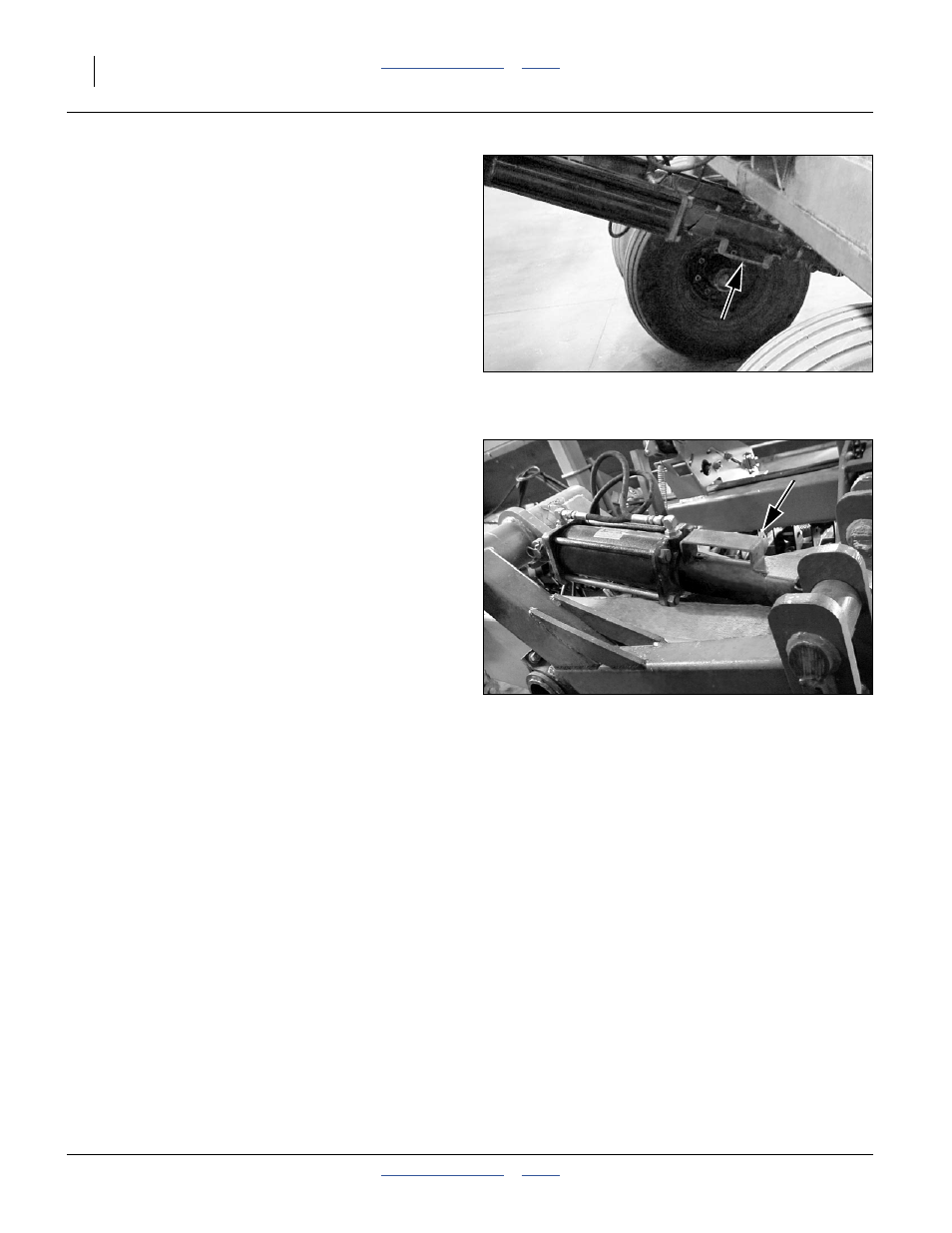

Figure 25
Transport Lift Cylinder Lock
18960
Figure 26
Front Box Lift Cylinder Lock
18959
