W HEATHEART - G RAIN A UGER EMD 3. A SSEMBLY
GHR 80 X 31’-71’ & 100 X 31’-71’ 3.11. W INCH & L IFTCABLE
30642 R0 33
Note: On augers equipped with a lower angle-iron track stop, the cable must be
threaded between track stop and auger tube to cable rests on top of the track
stop (See Figure 3.24).
5. Wrap cable 1-1/2 times around the
cable attach rod and secure with
two 1/4” cable clamps. Position
cable clamps as shown in Figure
3.24 and 3.25. Tighten clamps
securely.
N
OTE
:
Make certain cable is properly seated in cable groove before raising auger.
3.11.1. W
INCH
H
ANDLE
This auger may use one of several different winch models. Before installing
handle on the main winch assembly, check the model number stamped on winch
housing and follow the correct set of instructions.

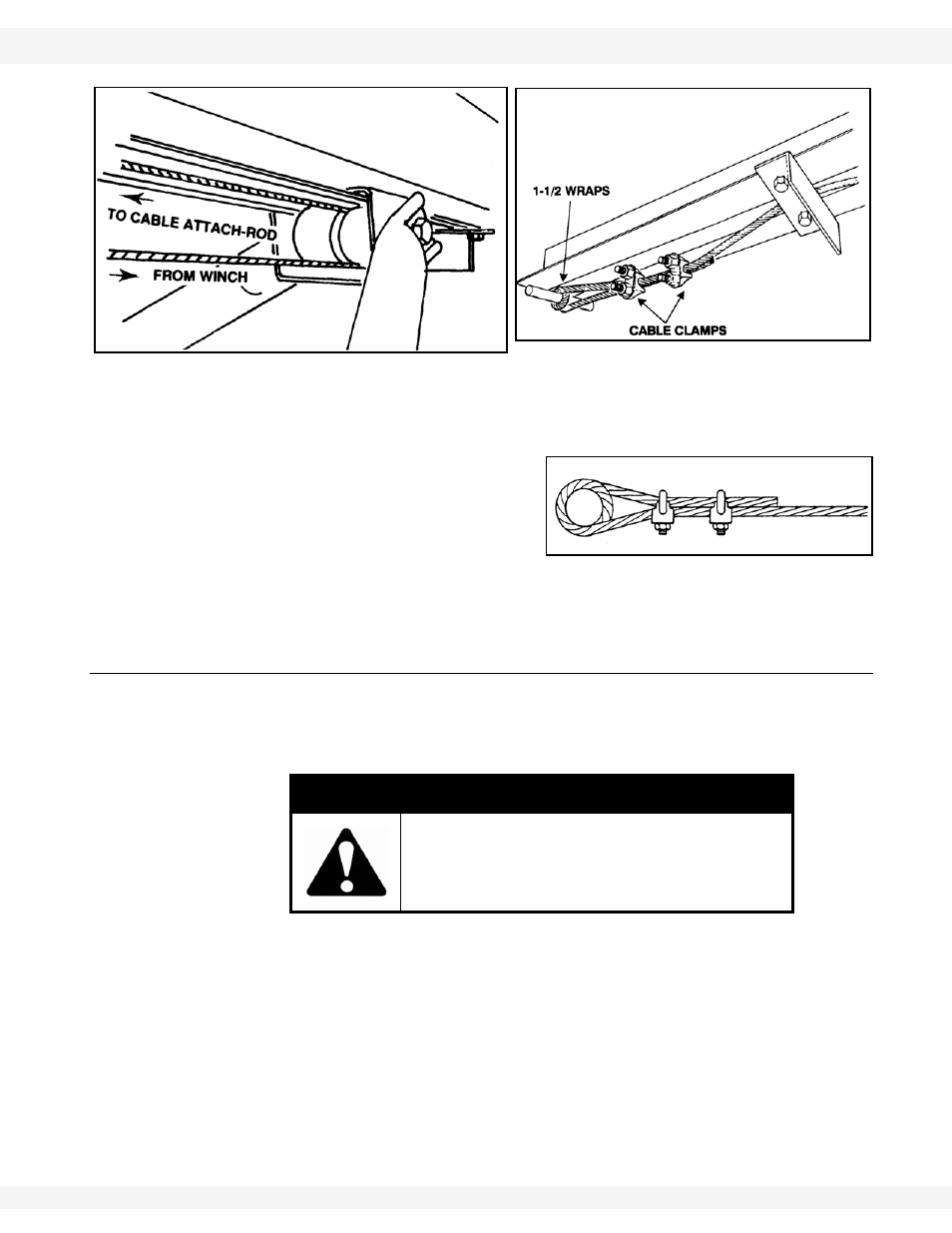

Figure 3.24
Figure 3.23
Figure 3.25
CAUTION
Winch handle assembly must follow the
instructions below. Improper assembly will
result in sudden winch failure causing
damage to equipment and/or personal injury.
