Wheatheart GHR 80/100 x 31-71ft Augers EMD User Manual
Page 16
3. A
SSEMBLY
W
HEATHEART
- G
RAIN
A
UGER
EMD
3.1. T
UBES
& F
LIGHTING
GHR 80
X
31’-71’ & 100
X
31’-71’
16
30642 R0

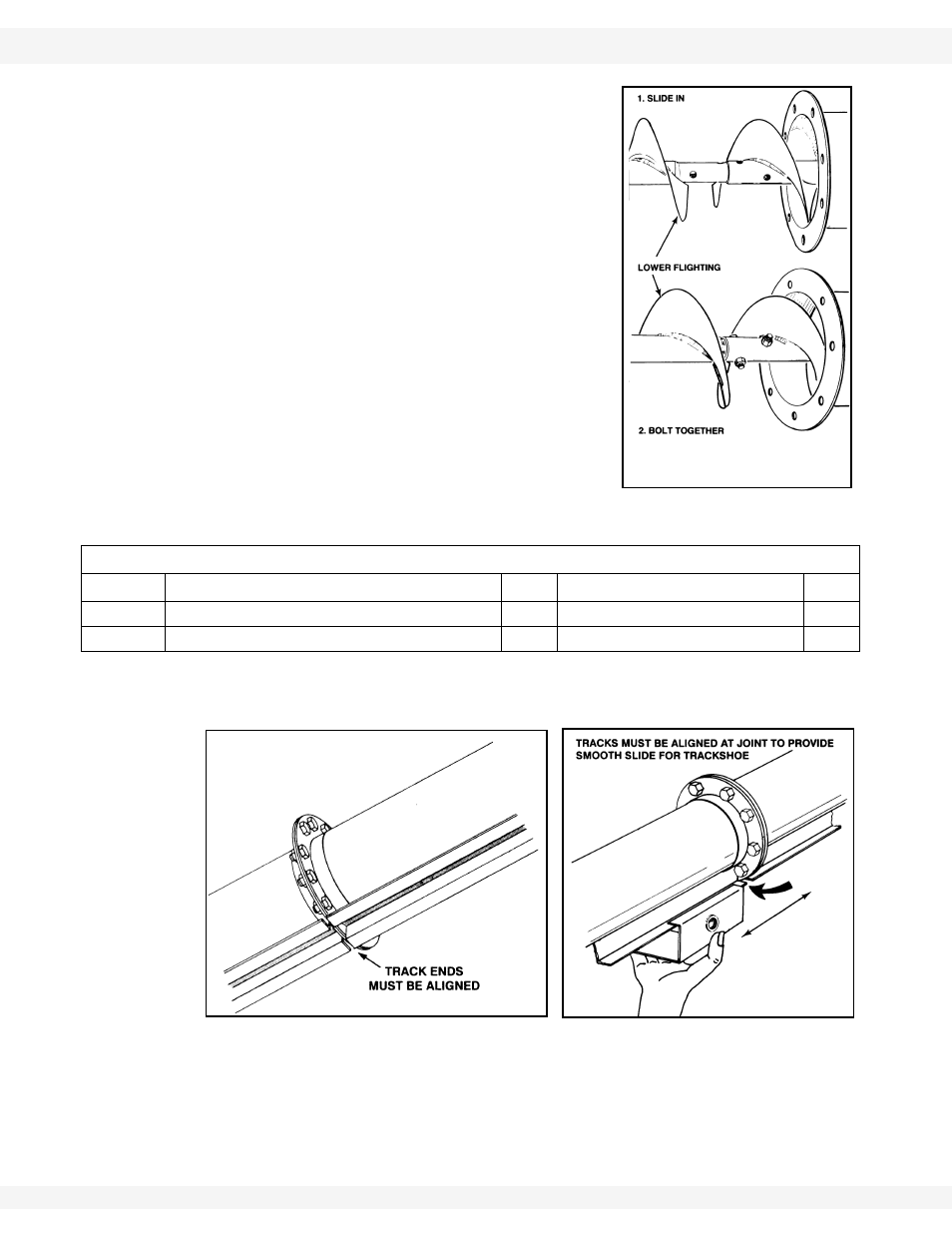

3. Slide
tube
sections together and secure.
Make sure to align upper and lower track
ends and then tighten bolts. Secure with
hardware in table below.
Important:
Track ends must align to allow track shoe to smoothly slide over track joint.
Misalignment may cause jamming.
FOR 8” AND 10” AUGERS, SLIDE
FLIGHTING TOGETHER.
Figure 3.1
Details for fastenings:
Auger
For Flighting
Amt
For Tubes
Amt
8”
7/16” x 2-1/4” GR 8 bolts and locknuts
2
7/16” x 1” bolts and locknuts
8
10”
1/2” x 2-3/4” GR 8 bolts and locknuts
2
7/16” x 1” bolts and locknuts
8
Figure 3.3
Figure 3.2
