3. A SSEMBLY W HEATHEART - G RAIN A UGER EMD
3.11. W INCH & L IFTCABLE GHR 80 X 31’-71’ & 100 X 31’-71’
32 30642 R0

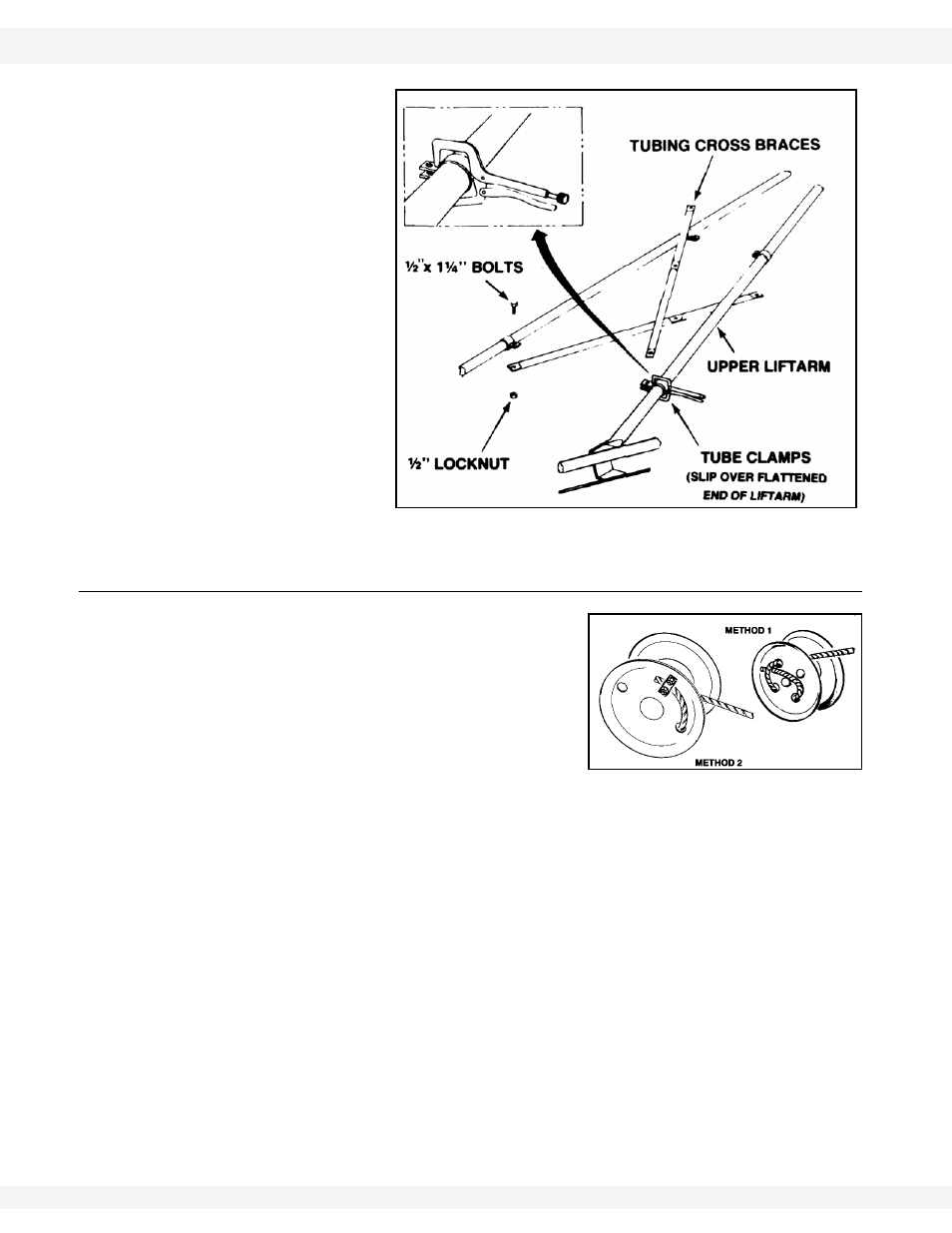

• Use a c-clamp
vise grip to
squeeze and
hold the tube
clamps in posi-
tion for attach-
ment to the
tubing cross
braces. Once
in position,
tighten the
bolts (Figure
3.22).
3.11. WINCH & LIFTCABLE
1. Attach cable to winch using one of the 2
methods shown, depending on supplied
winch.
• If method 2 is used, the nut must be on
the outside of the drum to prevent dam-
age to the cable. Leave about one inch
of cable extending past the clamp.
Cable must leave winch from bottom
side.
2. The winch must have a minimum of 3 wraps of cable on drum when auger is
in transport position.
3. Attach winch to winch mount with three 3/8” washer locknuts.
Important: Winch handle must be positioned on the left side of the auger (determine left by
standing at the intake end, facing the discharge end).
If auger has more than 1 winch mount, use the bracket nearest the intake end.
4. Thread lift cable under and around roller on track shoe, then back to cable
attach rod welded to lower end of track.
Figure 3.22
