13
INSTALL ATION & OPERATION • OPERATING YOUR XAP TH1
Easy-to-access front-panel controls make operation of the XAP TH1
simple. Figure 10 (below) shows each front panel LED and button by
number.
Answering a Call
An incoming call will ring on the telephone set connected to the XAP
TH1 and flash the ON LED. You can answer the call in one of two ways:
Press the ON button [5] on either the front panel or from your
remote control. This will route the call through the XAP TH1 to the
XAP 800. The green ON LED [3] will light. The red OFF LED [4] will
extinguish. Upon connection, the XAP TH1 automatically (if DIP
switch is set to Off) adjusts to the line conditions.
Answer the call by picking up the telephone handset and talking to
your party over the telephone.
Making a Call
Call the party normally, using your handset. After the other party has
answered, route the call through the XAP TH1 by pressing the ON
button [5]. The ON LED [3] will light and the XAP TH1 will take control of
the call, disabling the telephone set. You may now safely hang up the
handset without disconnecting your call. When the conversation is
complete, press the OFF button [6] to disconnect the call.
If using RS-232 touch tone, it is not necessary to hit the ON button [5].
When using the DIAL serial port command, the XAP TH1 automatically
engages the hybrid. See Serial Commands, page 15.
Disconnecting a Call
If the call is routed through the XAP TH1 (the ON LED [3] will glow),
press the OFF button [6] (OFF LED [4] will glow, ON LED [3] will
extinguish).
If your call is through the handset only (the red OFF LED [4] will be lit),
hang up when the conversation is complete.
Operating
Your XAP TH1
Transmit Transmit Receive Receive On Off Transmit Receive
1 2 3
4
5 6
H A P T 1

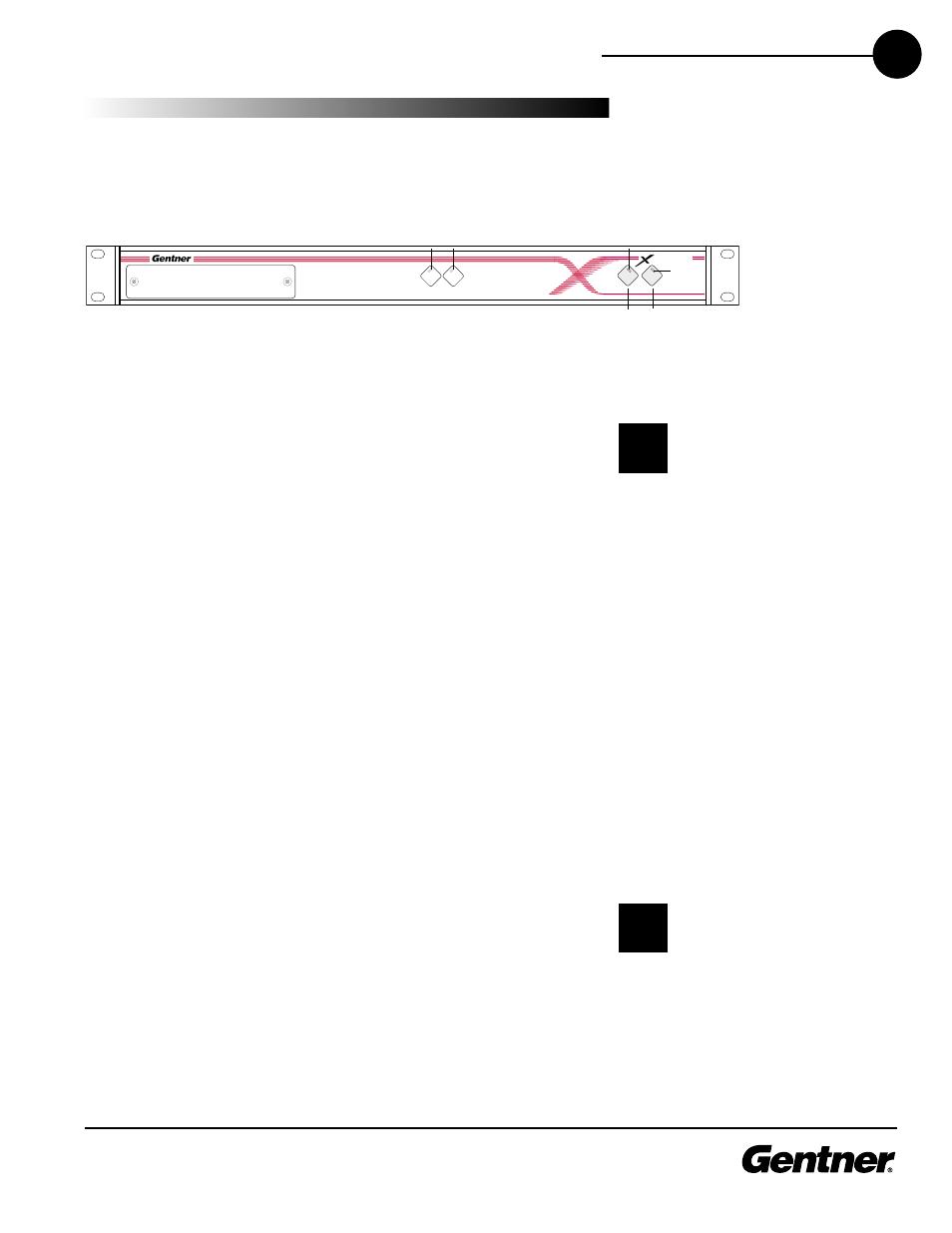

Figure 10. XAP TH1 front-panel controls
If auto-answer is enabled
(DIP switch 4), the XAP TH1
will answer after the first
complete ring.
✍
If auto-disconnect is
enabled (DIP switch 5), the
XAP TH1 will disconnect
upon sensing loop drop or call-
progress tones (depending on the
position of DIP switch 6).
✍
