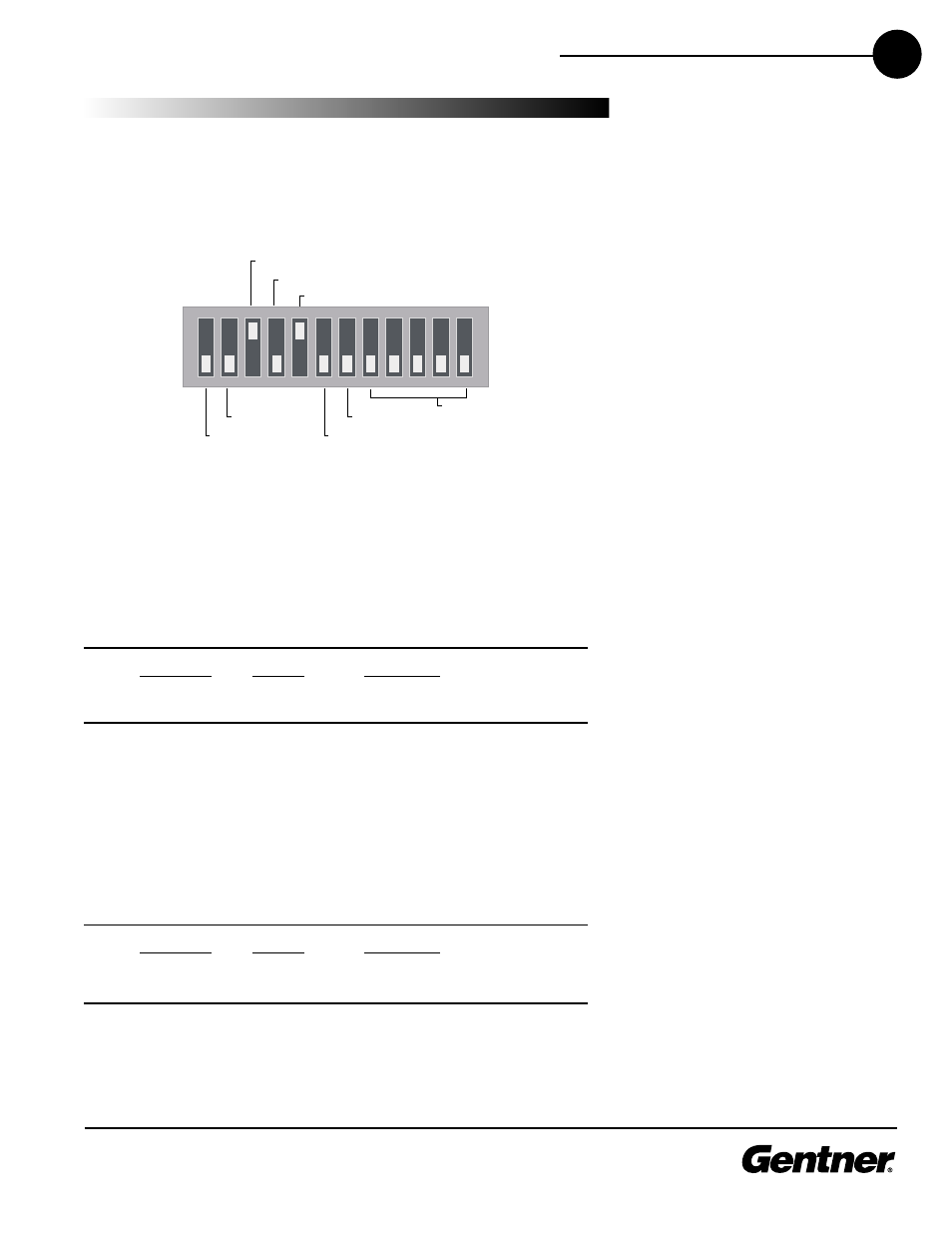

Figure 8. DIP Switch Settings
TECHNICAL SUPPORT: 1.800.283.5936 (USA) OR 1.801.974.3760
9
INSTALL ATION & OPERATION • DIP SWITCH SETTINGS
The XAP TH1 has a variety of operational features configurable through
DIP switch settings, including noise burst/auto-adapt, receive AGC
control, auto-answer, auto-disconnect, call progression/loop, and
receive reduction. Default settings (as shipped from the factory) are
denoted by an asterisk “*”.
DIP Switch 1, Noise Burst/Auto-Adapt
In some applications, it may be desirable to adapt the hybrid with a
white-noise burst, rather than allowing the hybrid to adapt automatically
to line conditions. To enable this feature, DIP switch 1 behind the digital
hybrid’s front panel is used to enable/disable the noise burst (Table 1,
below).
Table 1. Noise Burst Auto-Adapt DIP Switch Settings
DIP Switch Position Description
1 ON (UP) Burst adapt
1* OFF (DOWN) Auto-adapt
DIP Switch 2, 6dB Receive Boost
In some applications, it may be desirable to increase the receive audio
by 6dB. To enable this feature, DIP switch 2 behind the digital hybrid’s
front panel is used to enable/disable the 6dB receive boost (Table 2,
below).
Table 2. 6dB Receive Boost DIP Switch Settings
DIP Switch Position Description
2 ON (UP) 6dB Receive audio boost enabled
2* OFF (DOWN) 6dB Receive audio boost disabled
1 Burst Adapt
2 Receive Boost
3 Receive AGC
4 Auto Answer
5 Auto Disconnect
6 Call Progression
7 Receive Reduction
8–12 No function
DIP Switch
Settings
