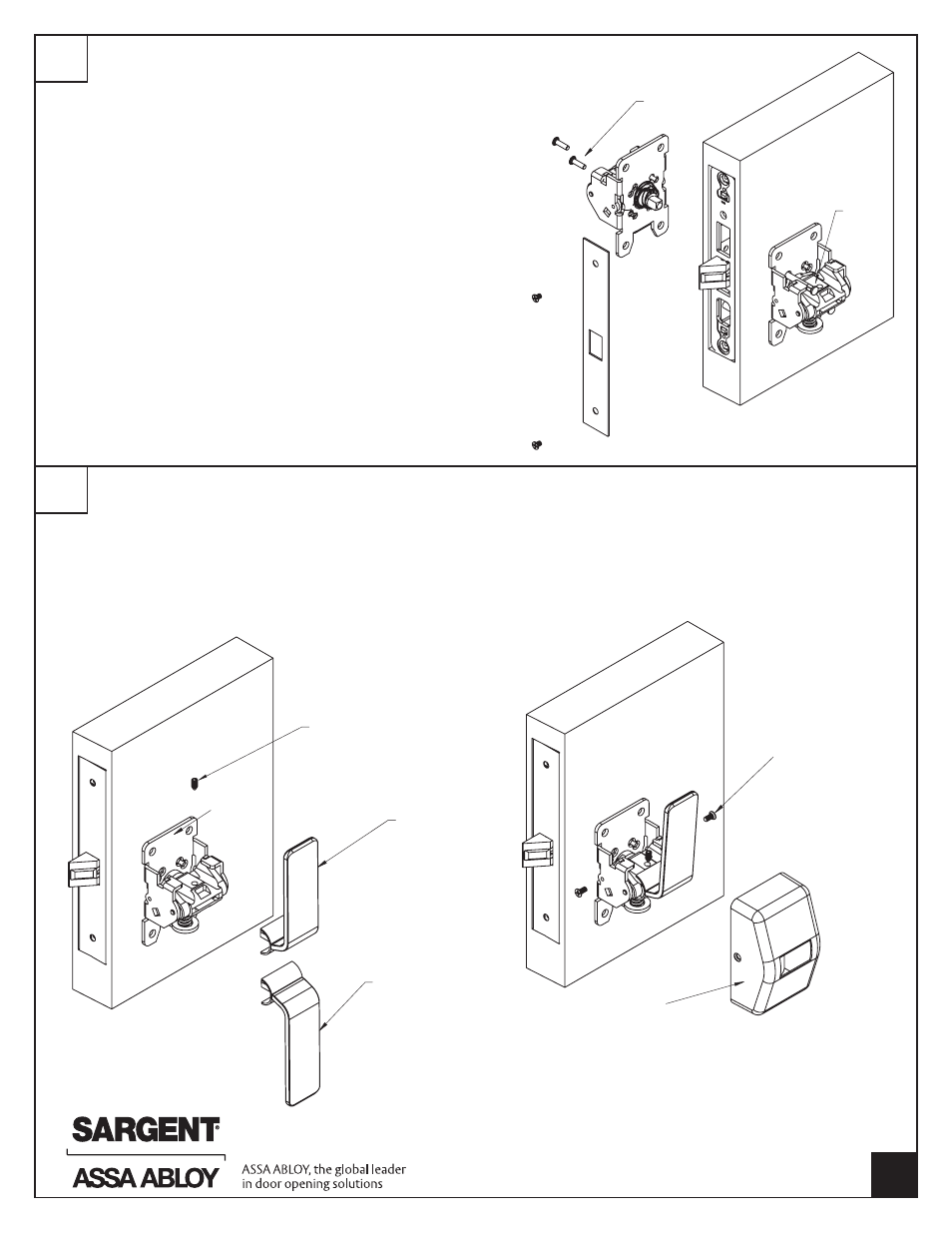

INSTALLATION Of CHASSIS
Copyright © 2011, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Sargent Manufacturing Company is prohibited.
• Check handing of chassis before installing mounting screws
• Insert the (2) mounting posts through the outside chassis,
then secure with (2) #8-32 x 5/8" machine screws through
the inside chassis
Do not tighten fully at this point
• Lockbody screws on edge of door are to be securely fastened
at this point
• Level chassis
• Tighten thru bolt screws
• Attach the outside front plate to lock front with (2) #8-32 x 1/4"
flat head screws
• Tighten all screws firmly, be sure not to over tighten
• Insert paddle in slot
• Install set screw
• Slide cover over paddle and align with mounting holes
• Install cover screws
5
INSTALLATION Of PADDLES AND COVERS
Machine
Screws
Thru
Bolt
(2) Torx cover screws
T15 torx bit
Cover
UP POSITION
PADDLE
DOWN POSITION
PADDLE
CHASSIS
Set screw
1/8" Allen key
