INSTALLATION INSTRUCTIONS
9200 Lever with Rose Trim
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission
of Sargent Manufacturing Company is prohibited.
A7146

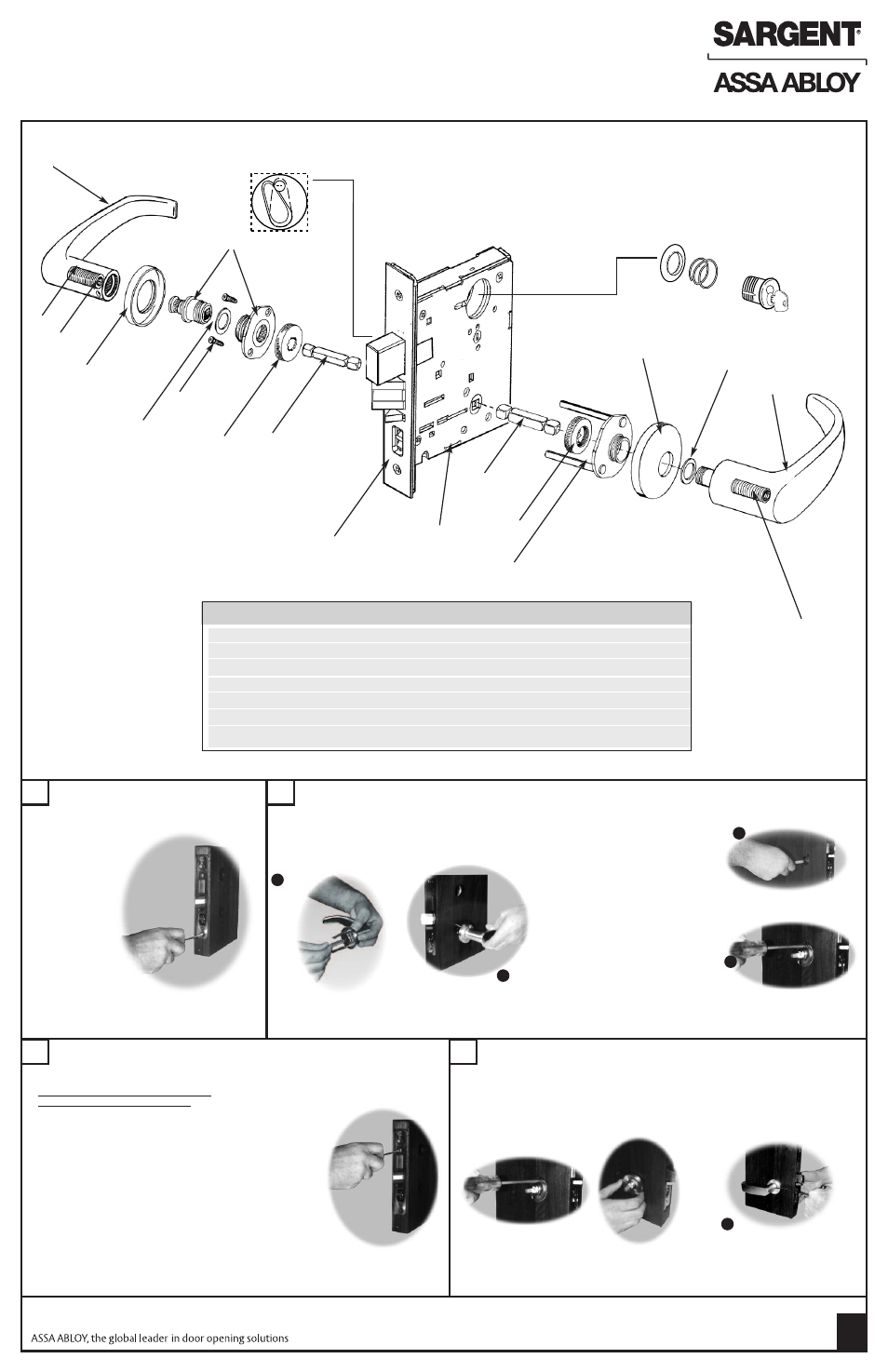

1. Inside Lever
2. Setscrew
3. Spring
4. Spindle
5. Outside Rose
6. Screw (2)
7. Adapter & Plate Assy. 8. Lockbody Unit
9. Outside Front
10. Mounting Posts
11. Outside Lever
12. Retaining Nuts
13. Inside Rose
14. Washer
PARTS LIST DESCRIPTION
IF CYLINDER IS NOT INCLUDED IN THIS
FUNCTION, PROCEED TO STEP 3E.
A. SCREW CYLINDER ALONG WITH CYLINDER
SPRING AND COLLAR INTO LOCKBODY
UNIT.
B. AFTER CYLINDER IS SCREWED INTO THE
LOCK BODY UNIT, FLUSH WITH THE
CYLINDER COLLAR, MAKE CERTAIN THE
CYLINDER RETAINER IS LINED UP WITH
THE NOTCH ON THE CYLINDER AND THE
KEYWAY IS VERTICAL.
C. TIGHTEN THE CYLINDER RETAINER TO
PREVENT UNSCREWING OF THE
CYLINDER.
D. TURN THE KEY IN THE CYLINDER TO
MAKE CERTAIN THAT THE LOCKING OR
LATCHING MECHANISM FUNCTIONS
CORRECTLY.
INSERT LOCKBODY
INTO MORTISE
CUTOUT. HOLD
LOOSELY IN
PLACE WITH (2)
LOCKBODY
SCREWS.
DO NOT
TIGHTEN
SCREWS AT
THIS TIME. A. INSERT SPINDLE INTO OUTSIDE
LEVER ASSEMBLY.
E. TIGHTEN THE
LOCKBODY
SCREWS.
F. SECURE THE
OUTSIDE
FRONT
PLATE TO THE
LOCKBODY.
G. IF TURN KNOB
AND/OR
EMERGENCY
BUTTON IS INCLUDED, INSTALL IT NOW.
(refer to enclosed Instruction Sheet)
A. FIRMLY TIGHTEN TWO SCREWS ON THE
INSIDE ADAPTER AND PLATE ASSEMBLY.
B. TIGHTLY SCREW THE ROSE TO THE
ADAPTER AND PLATE ASSEMBLY.
B. WITH OUTSIDE LEVER HORIZONTAL ,
CAREFULLY INSERT THE MOUNTING
POSTS THROUGH THE
DOOR AND LOCKBODY.
MAKE SURE THE
SPINDLE IS
PROPERLY
ENGAGED IN
THE LOCK.
C. INSERT SPINDLE
INTO SQUARE
HOLE ON INSIDE
OF DOOR.
D. TO SECURE THE
ADAPTER AND PLATE ASSEMBLY
TO THE INSIDE OF
THE DOOR, THREAD
THE SCREWS
WITH THE
LOCK WASHERS
INTO THE
MOUNTING POSTS
OF THE OUTSIDE LEVER
ASSEMBLY.
C. PLACE INSIDE LEVER
HORIZONTALLY ONTO SPINDLE.
TIGHTEN WITH SIX LOBE SECURITY
SCREW DRIVER
D
C
A
C
B
11
4
4
6
8
13
10
12
5
14
14
12
9
7
3
HOW TO REVERSE LOCK AND FUNCTION
HOLE LOCATIONS—SEE OTHER SIDE
1
3
2
1 2 INSTALL LOCKBODY
INSTALL CYLINDER
INSTALL OUTSIDE LEVER ASSEMBLY
3 4 INSTALL INSIDE LEVER
