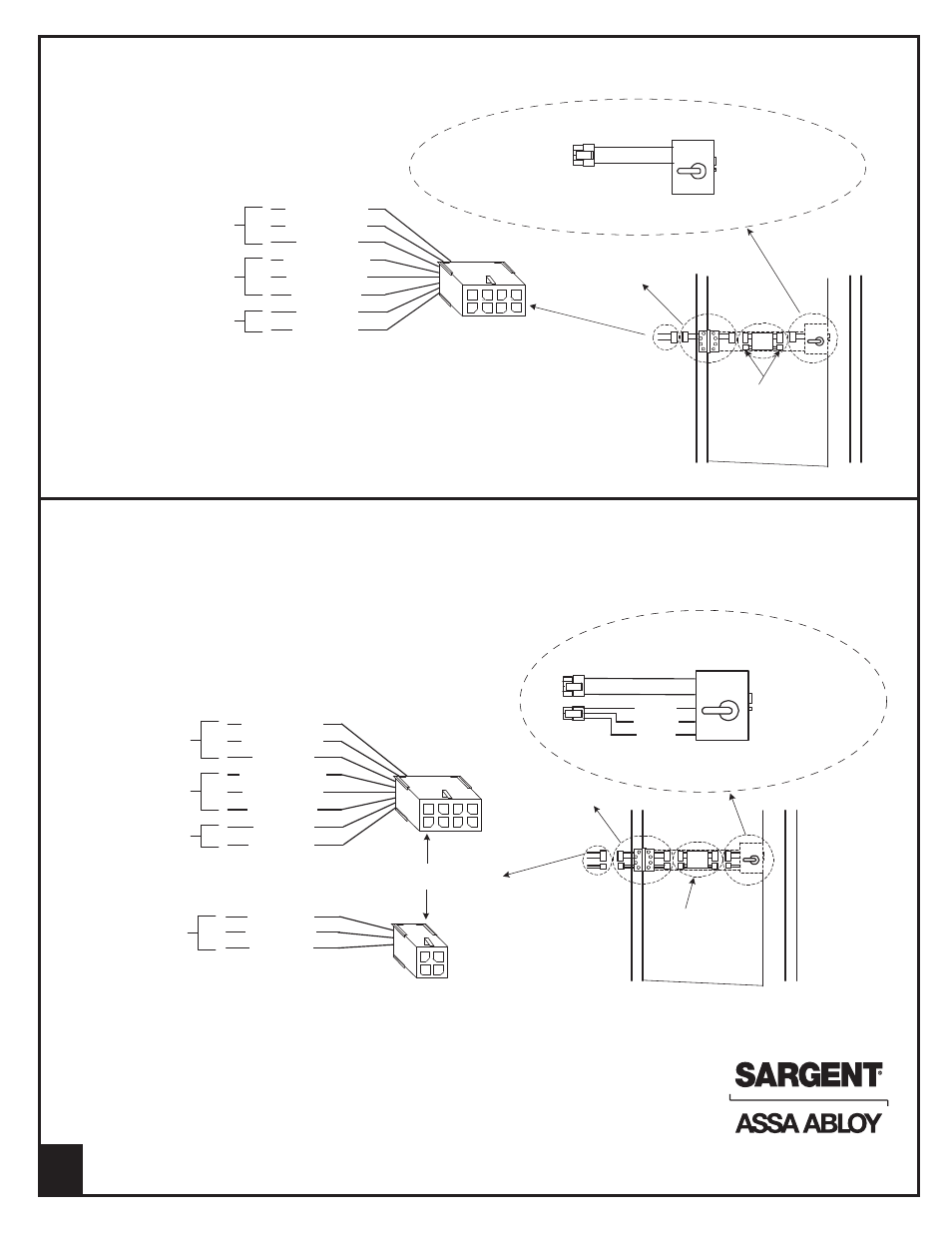

Ecoflex RX- (7900 & 8200 locks)
Ecoflex RX- and LX- wiring (8200 locks only)
For LH and LHRB doors, outside monitor is the case side and inside monitor is the cap side.
For RH and RHRB doors, outside monitor is the cap side and inside monitor is the case side.
For LH and LHRB doors, outside monitor is the case side and inside monitor is the cap side.
For RH and RHRB doors, outside monitor is the cap side and inside monitor is the case side.
Electric Hinge
with 8-pin connectors
with 8 wires
Pigtail harness with
8-pin connector
with 8 wires
The RX-switches are in the
Normal Open position, when
levers are untouched and the
latch is extended.
RX-switches monitor inside and
outside levers independently
Black (-), 1
Red (+), 2
Orange (NC), 5
Green (NO), 4
Yellow (NC), 8
Blue (C), 6
Brown (NO), 7
White (C), 3
Solenoid
Connections
RX -CAP Side
Switch
Connections
RX - CASE Side
Switch
Connections
1 7 5
6 4
3
2 8
Raceway harness
with 8 & 4-pin
connector. 4-pin
connectors are not
used here.
RX-7970, 71, 72
or 73 or RX-8270,
71, 72 or 73 lock
with 8-pin connector
8 wires
Note: 12V Lock has Red Heat Shrink
24V Lock has Black Heat Shrink
Electric Hinge
with 8 &
4-pin connectors
Pigtail harnesses with
8&4-pin connectors
Raceway harness
with 8 & 4-pin
connectors
RX-LX-8270,71,72
or 73 lock with 8 &
4-pin connectors
Black (-), 1
Red (+), 2
Orange (NC), 5
Green (NO), 4
Yellow (NC), 8
Blue (C), 6
Brown (NO), 7
White (C), 3
Solenoid
Connections
RX -CAP Side
Switch
Connections
RX - CASE Side
Switch
Connections
1 7 5
6 4
3
2 8
Tan (NC), 4
Pink (NO), 3
Grey (C), 2
LX -
Switch
Connections
1
4 2
3
8 wires
Tan (NC)
Pink (NO)
Grey (C)
LX- wiring (3 wires)
RX- switches monitor inside and
outside levers independently
LX- switch monitors latchbolt movement
The RX-switches are in the
Normal Open position, when
levers are untouched and the
latch is extended.
The LX- switch is in the
Normal Open position, when
the latch is extended.
4
