Depress latchbolt and hold fully depressed while screwing cylinder into chassis until it bottoms out. Unscrew until key
way is at the bottom and the name on the cylinder is straight. Tighten locking screw so that the end of the locking arm
mates with slot in the cylinder and tighten securely.

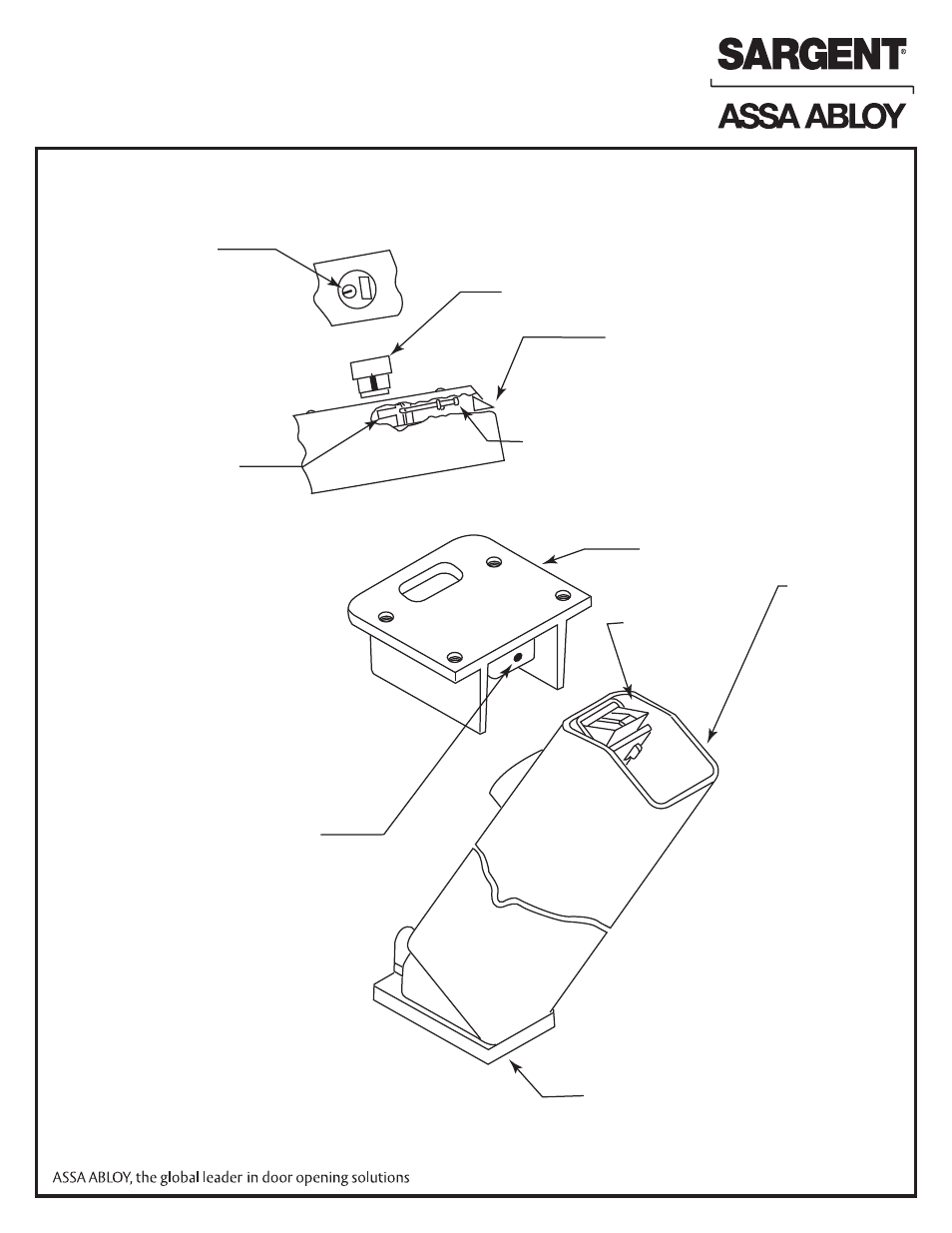

S A R G E N T
Top Retainer
Latchbolt
Mullion
Bottom
retainer
Set screw for
stabilizing mullion
located inside
retainer
Locking arm
Locking
screw
Mullion
latchbolt
Cylinder with
blocking ring
Key way
INSTALLATION INSTRUCTIONS
L980S Mullion
