SARGENT 3287 Door Status Switch - Manual

Magnet
Switch
The SARGENT ® 3285 Surface Mount Door Status Switch provides a SPST
Normally Open switch to monitor the position (open or closed) of the door.
Electrical Specifications:
1/4 Amp @ 24VDC Contact Rating
Two screw terminals provided for Common and Normally Open
Use supplied shim for switch when mounting to metal frame.

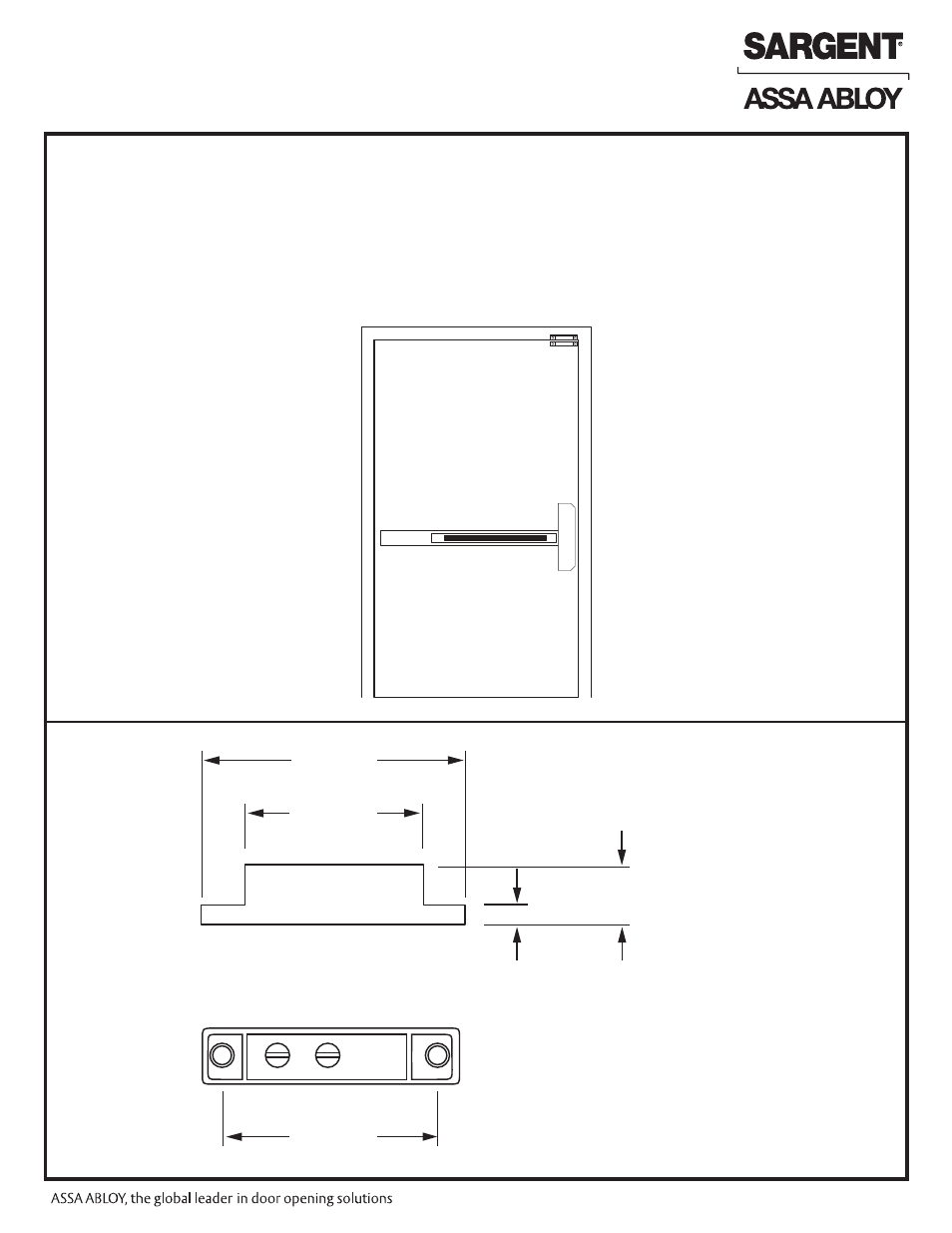

2.50"
63.5mm
.18"
4.6mm
.55"
14.0mm
2.10"
53.3mm
1.69"
42.9mm
MAGNET
SWITCH
A7448B
3285 Surface Door Status Switch
