SARGENT Wall & Frame Switch User Manual
Exit, Installation instructions
12/16/11
800-810-WIRE (9473) • www.sargentlock.com • A6946C
1
Copyright © 2011 Sargent Manufacturing Company
, an ASSA ABLOY Group company
. All rights reser
ved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
4299 WALL SWITCH
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS

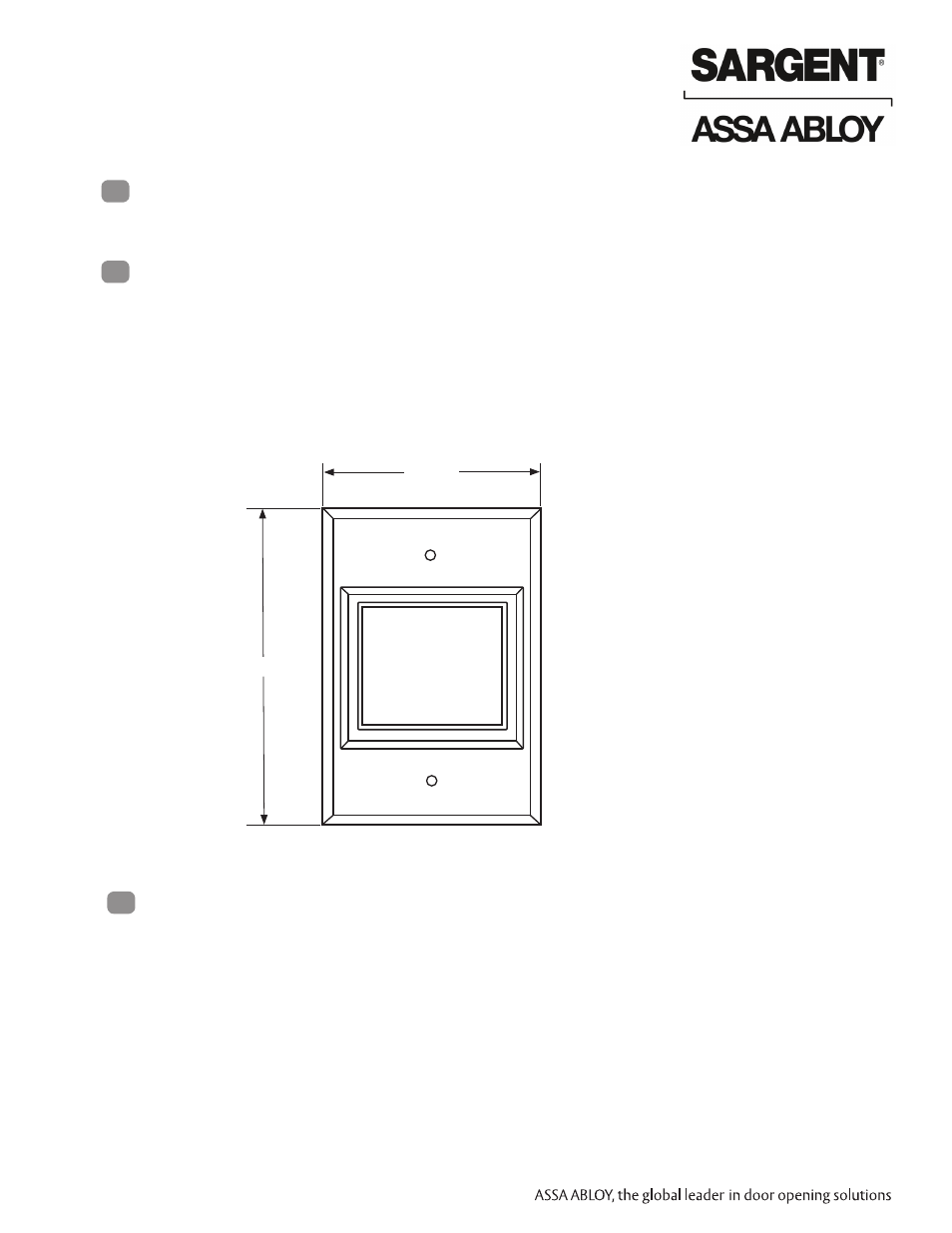

Face Plate
Stainless Steel; 4-1/2” x 2-3/4”
Push Button
Illuminated Green “EXIT”
Contact Rating
10A @ 125VAC
6A @ 30VDC
Switch Type
Normally Open (N.O.) Momentary contact (SPDT)
GENERAL INFORMATION
SPECIFICATIONS
1
2
3
SARGENT Model 4299 Wall Switch is a momentary contact switch.
EXIT
A. Important
1. CAUTION: Disconnect all power before beginning installation to prevent electrical shock
and equipment damage.
2. Installer must be a trained and experienced service person.
3. All wiring must comply with applicable local electrical codes, ordinances and regulations.
4-1/2”
2-3/4”
