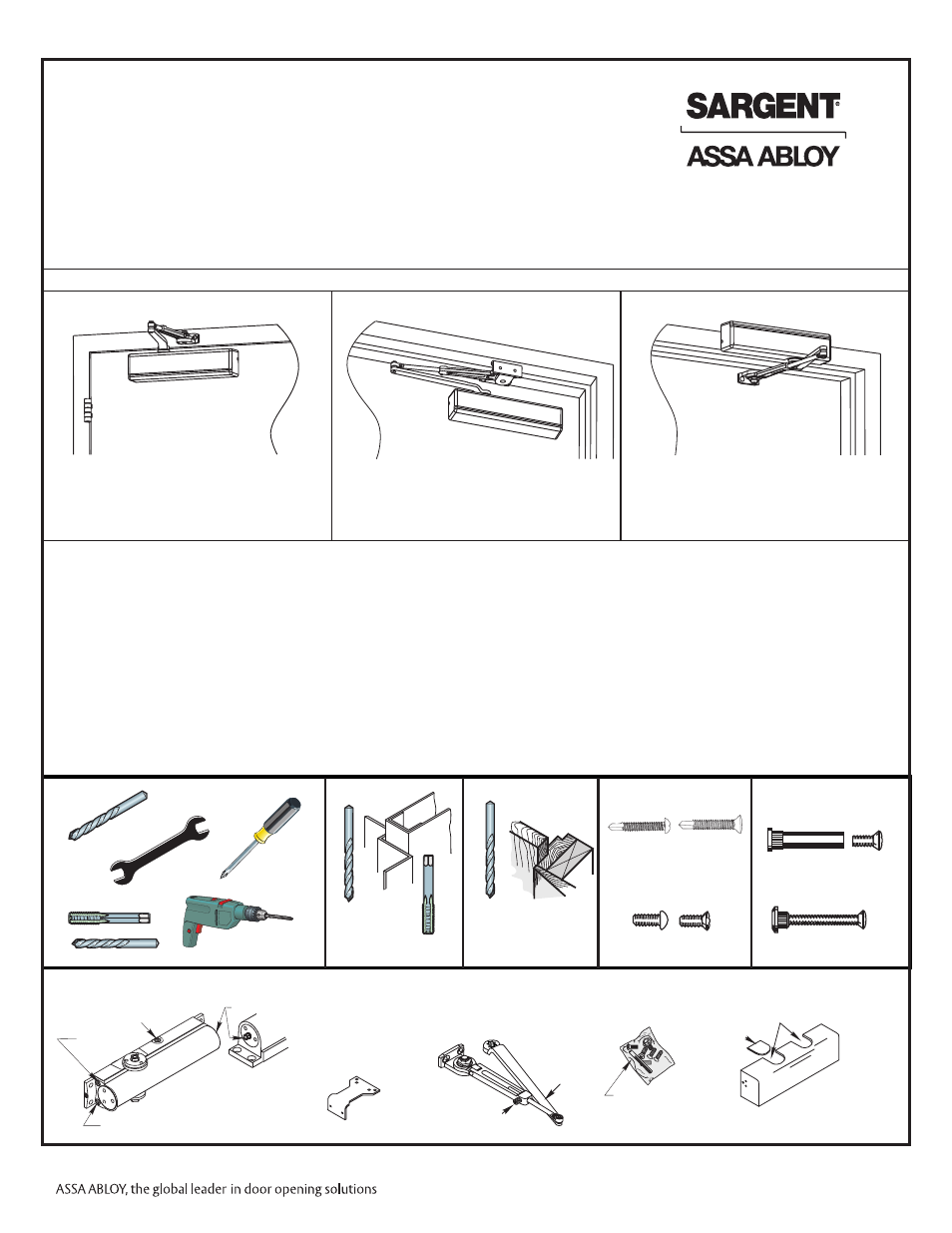

SARGENT 1331 Series Aluminum Closer User Manual
Pilot hole required, Metal wood, A separate door stop is recommended

Copyright © 2013 Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Sargent Manufacturing is prohibited.
A8175A
63-8175-6000-999
Screw Pack
Backcheck Valve
Power Adjustment Shaft
Latch Valve
Sweep Valve
Closer Body
Cover
Insert
Insert Cutouts
1331 Series
Full Cover
Standard With
1331-C Cover
Soffit Adapter Plate
Main Arm
Set Screw
Arm
Assembly
3/16"
#7
1/4-20
for Wood drill 7/32
Machine Screws
#7 Drill, 1/4-20 Tap
Metal
Wood
Self Drilling Screws
Wood and Metal
For Wood drill 3/16 hole
* Pilot Hole
Required
Sleeve Nut and Bolt
Thru Bolt and Grommet Nut
Drill 9/32 thru from Closer Side
3/8 Drill other side
Drill
3/8 Drill other Side
9/32 thru from Closer Side
(Optional)
Choose From 1 of 3 Applications
·
Doors should be hung on ball bearing or anti-friction hinges.
·
A separate door stop is recommended.
·
Door and frame must be properly reinforced.
·
Always adjust spring power before adjusting control.
·
Adjust closing time speed between 3 and 7 seconds from 90° to 0°. Greater closing times may be required
ADA.
·
These door closers should NOT be installed on the exposed side (weather side) of exterior doors
·
NOTE: For special applications a separate door and frame preparation template is packed with these
instructions. Use this instruction sheet for installation sequence and closer adjustments only.
JH Arm (Regular Arm)
Right hand (RH) door shown.
Left hand reverse (LHR)
See page 2
JPH9 Arm (Regular Arm)
Right hand (RH) door shown.
Left hand reverse (LHR)
See page 3
JH Arm (Top Jamb Arm)
Right hand (RH) door shown.
Left hand reverse (LHR)
See page 5
®
SARGENT 1331 DOOR CLOSER INSTALLATION
INSTRUCTIONS WITH FOLLOWING ARM SETS:
JH, JHZ and JPH9
Strength Adjustment From Size 1 Through 6.
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY
RESULT IN INJURY OR DAMAGE
FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477 or
www.Sargentlock.com
NOTE: These installation instructions to be used for
product manufactured on or after Nov. 1, 2013. Date
Code: KU and shipped with arms shown on
template pages. See page 6 for date code location.
