SARGENT 1331 Series Aluminum Closer - Manual

Copyright © 2008, Sargent Manufacturing Company, an ASSA ABLOY Group company. All
rights reserved. Reproduction in whole or in part without the express written permission of
Sargent Manufacturing Company is prohibited.
A7742A
1
SARGENT
®

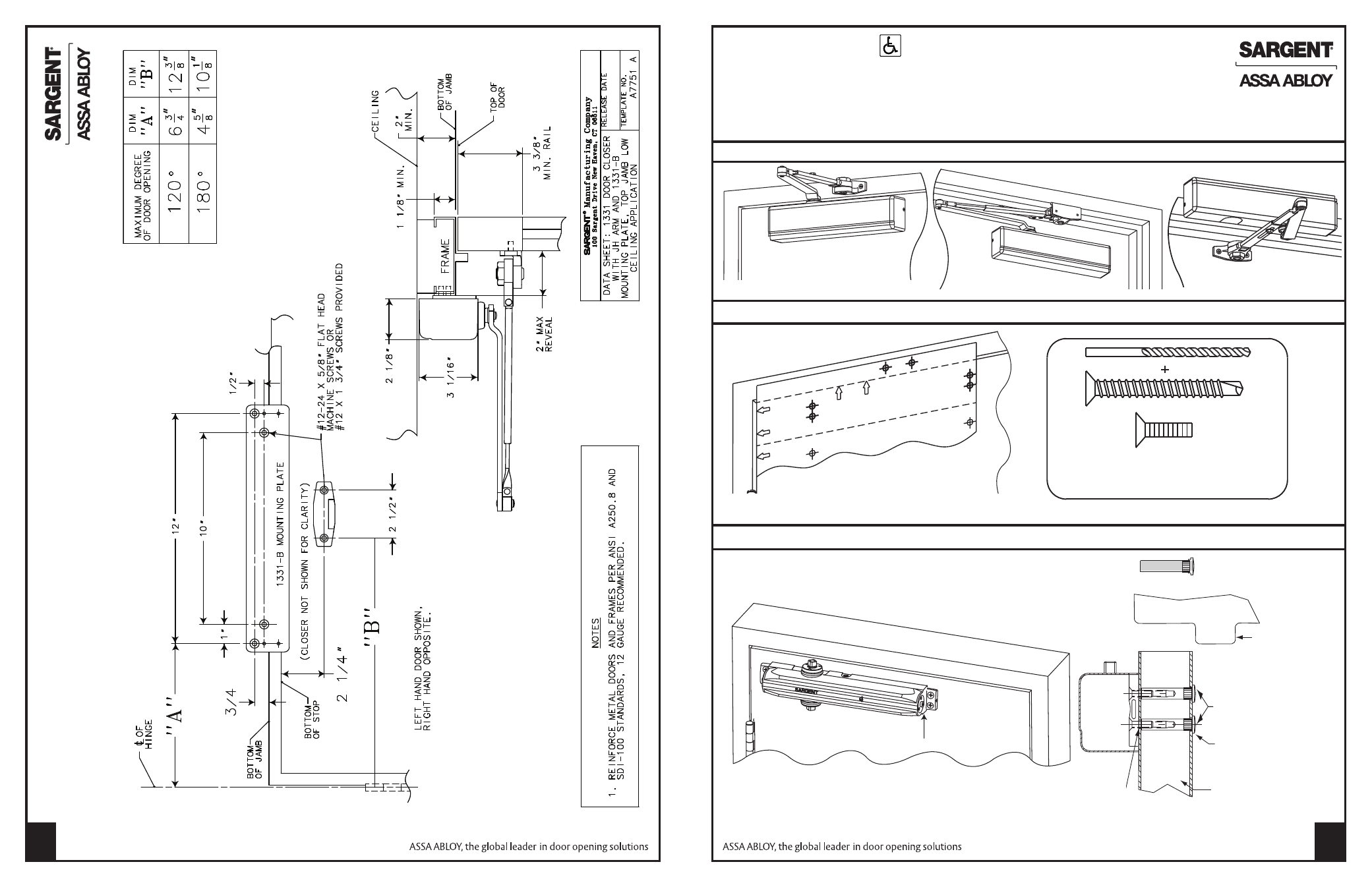

1331 DOOR CLOSER INSTALLATION
INSTRUCTIONS WITH JUH (HOLD OPEN) ARMS
Strength Adjustable From Size 1 Thru 6
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE.
FOR ASSISTANCE, CALL SARGENT AT 1-800-727-5477 or www.sargentlock.com
Choose From 1 of the 3 Applications Below
OR
Pre-drill - 3/32” holes
for self tapping screws or #16 drill for
#12-24 tap for machine screws
Use Standard & Parallel Full Size Templates Provided
JH Standard Arm JPH9 Parallel Arm JH Top Jamb Arm
* 1/4" Variance allowed for retrofit of existing closers
8
-
-
-
-
-
-
NOTE: With swing clear hinges, use data sheets provided.
With fasteners provided,
secure closer body to door with
power adjustment away from hinge.
Power Adjustment
Frame
Unreinforced
door
Door stop
Mortise nut
Drill 3/8" Dia
hole for mortise
nut body
D Dia. hole
f
Frame
Door stop
Unreinforced
door
Mortise nut
Drill
3/8"
dia.
hole for mortise
nut body
Drill
1/4"
dia. hole
for screws
Using optional mortise nuts when through-bolting
