SARGENT 1431 Series Aluminum Closer User Manual
SARGENT Safety

1

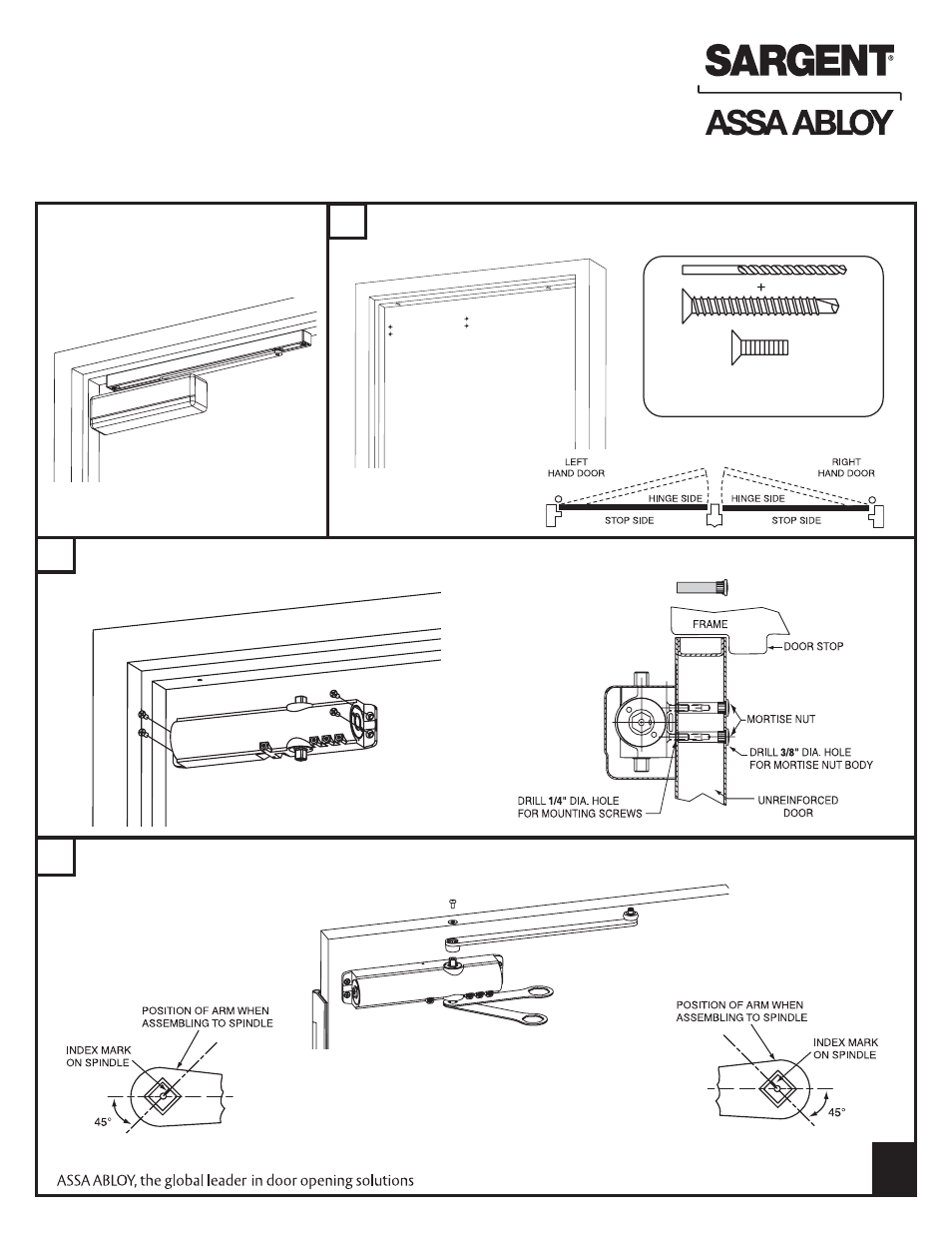

1431 (POT or PHT) PUSH TRACK APPLICATION
INSTALLATION INSTRUCTIONS
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY
MAY RESULT IN INJURY OR DAMAGE
For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com
NOTE: AN AUXILIARY DOOR STOP IS REQUIRED
B
OR
Pre-drill - 3/32" holes
for self tapping screws or #16 drill for
#12-24 tap for machine screws
LEFT HAND
SHOWN
DRILL AND TAP DOOR AND FRAME.
SEE PAGE 4 FOR DIMENSIONS
WARNING: IF NOT PROPERLY
INDEXED, DOOR CLOSER WILL
NOT OPERATE PROPERLY
C
WITH A WRENCH, ROTATE THE BOTTOM SPINDLE INTO POSITION SHOWN. ALIGN ARM TO MARK ON SPINDLE TO MATCH
HAND OF DOOR. SECURE ARM TO SPINDLE WITH SCREW AND WASHER PROVIDED. (LEFT HAND DOOR SHOWN)
A
LEFT HAND
RIGHT HAND
WITH PROVIDED FASTENERS, SECURE CLOSER BODY TO DOOR
WITH POWER ADJUSTMENT FACING TOWARDS HINGE.
WHEN USING MORTISE NUTS:
A7194E
