Installation of dummy trim, Install dlu93, Latch installation – SARGENT DL Series Tubular Lock User Manual
Page 2
2
1
2
Install loosely;
Tighten after step #2
Screws
(2) #8-32 x 3/4"
Screws
(2) #8 x 3/4"
Scalp to be removed with
flat headed screwdriver
at notch
IMPORTANT
Test for proper
operation before
closing door

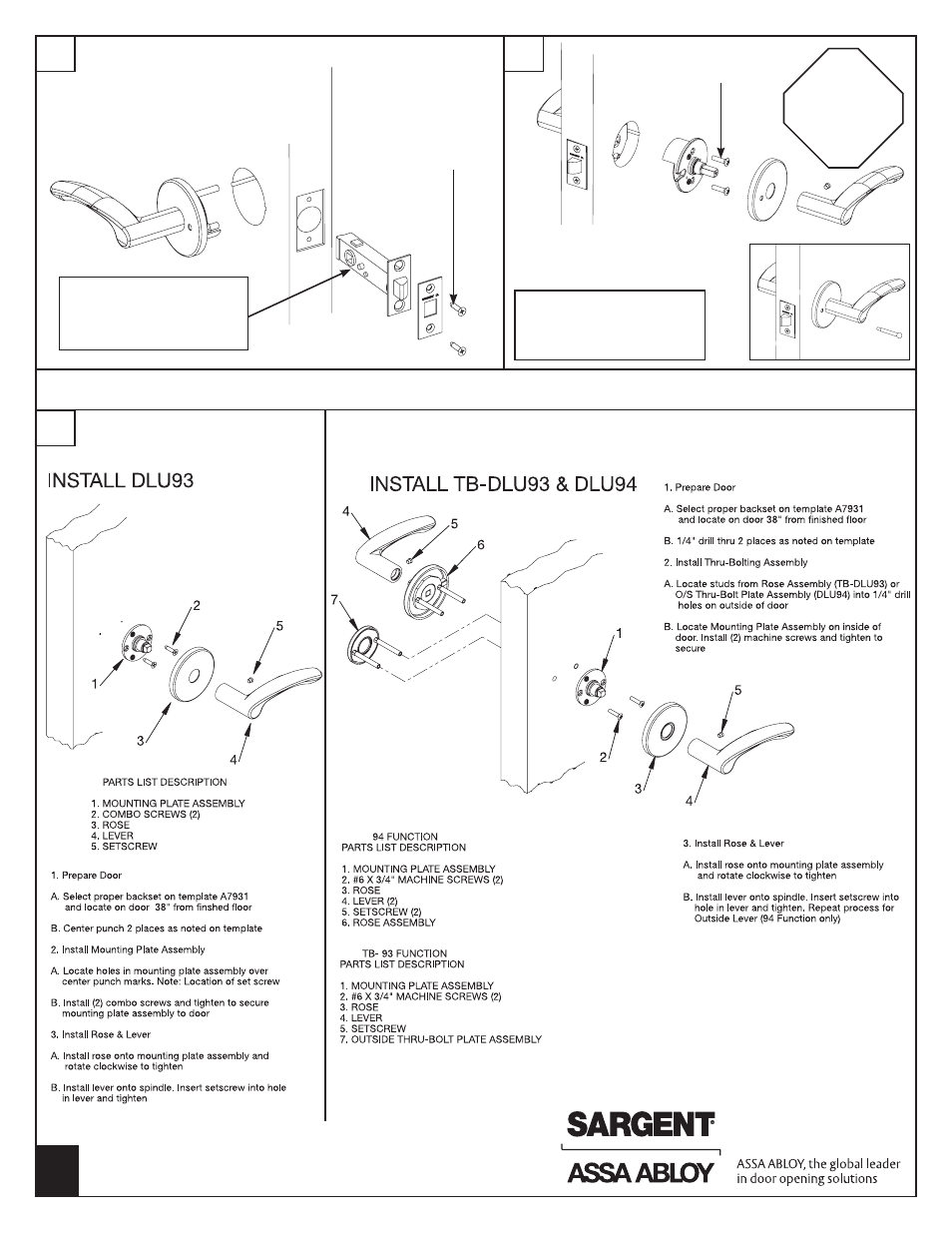

Install DLU93
1
I
nstallation of Dummy Trim
Copyright © 2008, 2009, 2012, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of
Sargent Manufacturing Company is prohibited.
A7858E 07-19-12
Latch Installation
Note: These instructions are also used
for Passage Function DLU15-3
NOTE:
For square rose installation,
see page 3.
Note: For the DLU65, the threaded
hole on locking piece must be
toward the inside of the door, so
the Push Button can be threaded
into it (as shown on other side)
