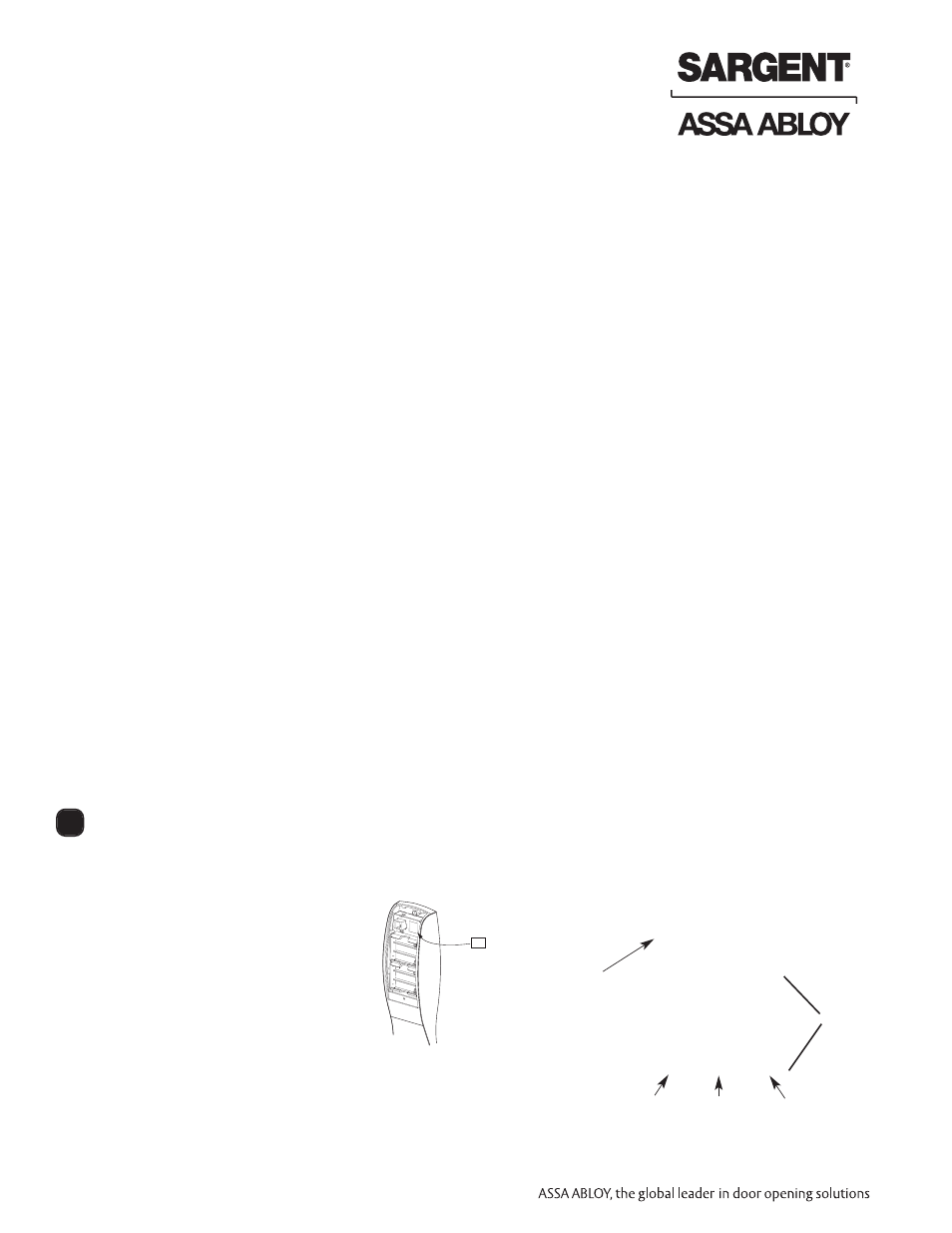

800-810-WIRE (9473) • www.sargentlock.com • A7857A

Keypad Programming Instructions for the Profile Series LK Lock

To Reset/Clear Transaction Log

99# Master Code*

Yellow LED blinks

76# 00000# 00000#

Yellow LED blinks

*

Yellow LED blinks quickly

*

Yellow LED blinks slowly

*

Yellow LED goes out (If solid, see note)

To Delete A User

99# Master Code*

Yellow LED blinks

50# 1# (User Number 04-100)#

Yellow LED blinks

*

Yellow LED blinks quickly

*

Yellow LED blinks slowly (If solid, see note)

*

Yellow LED goes out

To Enable/Disable A User

99# Master Code*

Yellow LED blinks

56# 0# (Enable) or 1# (Disable)
(User No. 04-100)#

Yellow LED blinks

*

Yellow LED blinks quickly

*

Yellow LED blinks slowly (If solid, see note)

*

Yellow LED goes out

To Set Unlock Time

99# Master Code*

Yellow LED blinks

11# (1-99 sec)# 0#

Yellow LED blinks

*

Yellow LED blinks quickly

*

Yellow LED blinks slowly (If solid, see note)

*

Yellow LED goes out

The Unlock Time is adjustable for Momentary Operation. A 5 second unlock time is recommended to extend
battery life. Once the unlock time is entered, it is the same for ALL users except 02.

Status Indicators

No Green LED after code is entered once, but flashes after 3 consecutive entries- Invalid Code
4 Long beeps after code is entered - Low Battery.
4 long beeps after code is entered, 4 more long beeps - Voltage (batteries) too low to operate

Enter Emergency Code to gain 1 entry.

To output the last 15 transactions, enter 99# Supervisory or
Master Code * 70 # 0 # 0 # **.

• Examples on this page are for

the 100 user, 15 transaction unit

Note: Seq. # 0 is the programming

request to output the entries.
Sequence numbers 1-9 are
the actual entries.

-

+

-

+

-

+

-

+

+

-

+

-

LK

-

+

-

+

-

+

-

+

+

-

+

-

LU

PK

-

+

-

+

-

+

-

+

+

-

+

-

Transaction Log (LK Only)

2

Door Name 5666

Seq User Trans

0

001

1

003

2

003

3

020

4

003

Transaction
number

Transaction
type

User

number

Door
name

Varies
