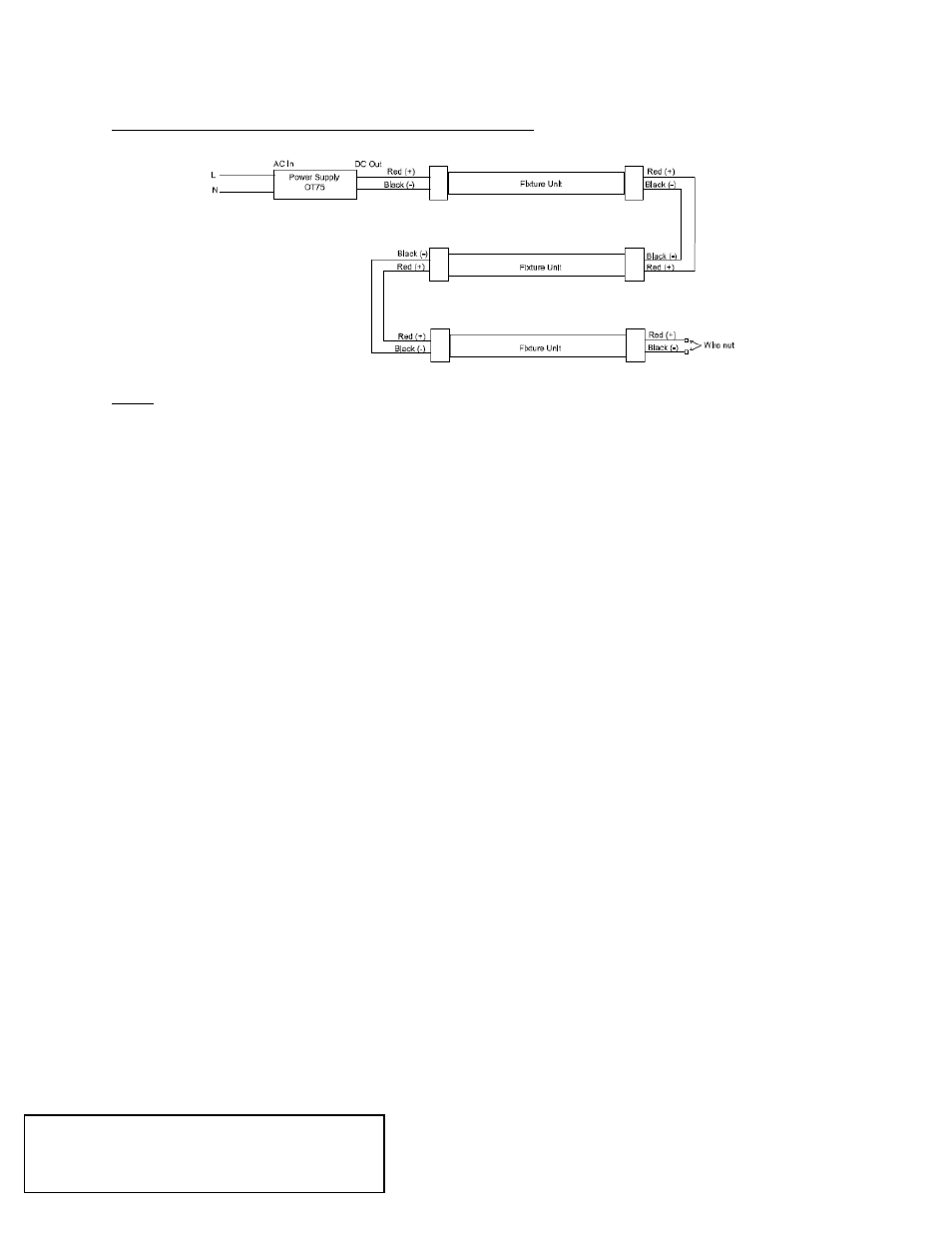

Figure H – Basic Wiring Diagram Showing Series Connection
Notes:
1. The wiring diagram is purely diagrammatic. The power supply DC output wiring must be
kept separate from any AC wiring. Therefore the orientation of the LEDstixx and
subsequent wiring schemes to maintain this separation must be determined in the field.
2. Contractor is responsible for providing any additional wiring necessary to feed from the
output of the power supply to the “Input Connector” noted in the diagram. Contractor is
responsible for the connection of said “Input Connector” to additional wiring.
4.0 CLEANING and CARE

To avoid product damage do not use chemical solutions to clean the lens

Keep the outside clean. Wipe with gentle liquid dish detergent. Dry with a soft cloth

Do not wipe the lens with a wet towel. This could leave a residue that can cause damage

The lens and the housing need to be cleaned from time to time with a gentle liquid detergent

Do not use scouring pads, bleach or cleaners containing bleach because this can scrape and
harm the finish
5.0 RELATED INFORMATION
5.1 List of Applicable and Related Documents:
 Document LED313 – LEDstixx Product Information Bulletin (PIB)
 Document LED315 – LEDstixx for Horizontal Refrigeration Under-Shelf Lighting
Installation Guide
 Document ECS050 – Power Supply Product Information Bulletin (PIB)
 Document LED093 – Electrostatic Discharge Protection for LED Systems
 Document LED157 - LEDstixx® Lighting System Warranty
5.2 Responsibilities and Considerations
5.2.1 Owner/User Responsibilities:
It is the responsibility of the contractor, installer, purchaser, owner, and user to
install, maintain, and operate LEDstixx and components in such a manner as to
comply with all state and local laws, ordinances, regulation, and the American
National Standards Institutes Safety Code.
5.2.2 Installation Configurations:
When planning a LEDstixx installation, OSRAM SYLVANIA suggests the following:
 Consult and Electrical Inspector to approve all wiring plans.
 Refer to local and state codes for installation compliance.
 Consult OSRAM SYLVANIA Customer Service Center @ 1-800-LIGHTBULB
LED 314 07/13
