1.4 Case Identification
If the installation is a replacement of an existing fluorescent system, it is recommended that the
case manufacturer be identified. Case brand labels are generally displayed near the top of the
case, at the frame header and should identify the manufacturer. Obtaining this information may
be beneficial as many case manufacturers offer specific installation, repair and replacement
documents online. This installation guide is written such that any removal or access instructions
are dictated by the manufacturer’s provisions and to instruct the installer concerning any product
specific instructions once access and provision are made.
WARNING – Turn off and disconnect the power to the case and the
ballast before proceeding with the installation.
1.5 LEDstixx Horizontal Refrigeration Canopy Fixture Installation Instructions
1.5.1 If not using the Tombstone Adaptors, start at section 1.5.3. If using the optional
Tombstone Adaptors, snap the Tombstone Adaptors on to the press fit clips on outer
ends of the Mounting Brackets as shown in Figure B.
1.5.2 Snap the Tombstone Adaptors on to the existing fluorescent tombstone sockets as
shown in Figures C and E and skip to section 1.5.6.
Note: there are two mechanical methods of attaching the LEDstixx Canopy fixture
to the refrigerated case. Installer may either screw the supplied Mounting Brackets
to the existing case body OR use optionally available Tombstone Adaptors that
mount directly to existing fluorescent tombstone sockets, if available. Existing
tombstone sockets are only used for mechanical mounting and not for making any
electrical connection. If not using the optional Tombstone Adaptors, skip to section
1.5.3.

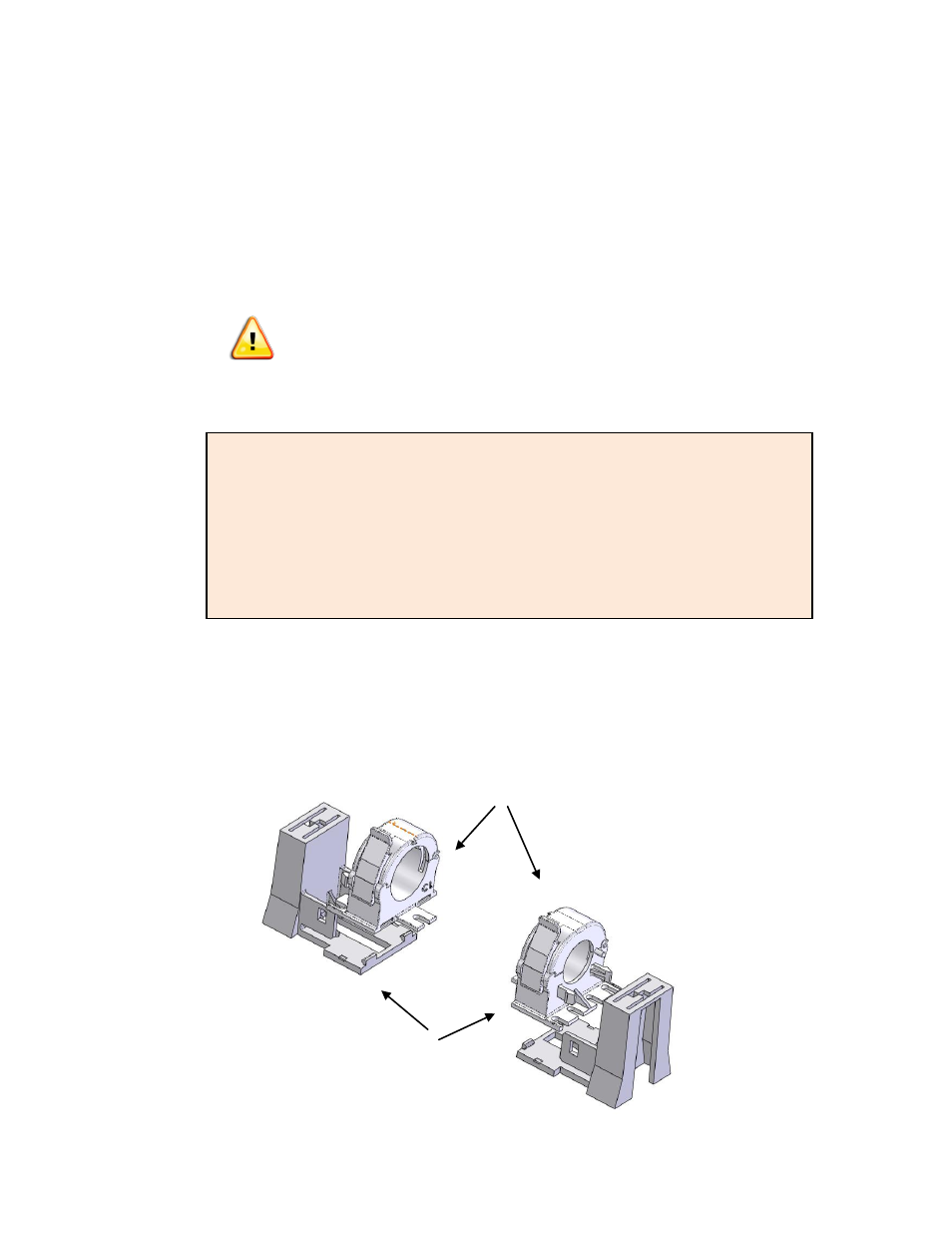

Tombstone Adaptors Figure B
Mounting Brackets
