Page 29
DRIVESYSTEMS
HELICAL IN-LINE
PARTS LIST DRAWINGS
RETAIN FOR FUTURE USE
www.nord.com/docs
06.09.09
NORD Gear Corporation
Toll Free in the United States: 888.314.6673
NORD Gear Limited
Toll Free in Canada: 800.668.4378
U15100 - 12 of 12
*
*
*
12 Anti-Friction Bearing
13
Nilos Ring*
16
Spacer*
25
Snap Ring
109 Oil Seal
114 Intermediate Flange
115 Lock Washer
116 Bolt
117 Lock Washer
118 Bolt
119 Intermediate Shaft,
Plain
120 Intermediate Shaft,
Gearcut
121 Bearing Sleeve*
124 Snap Ring

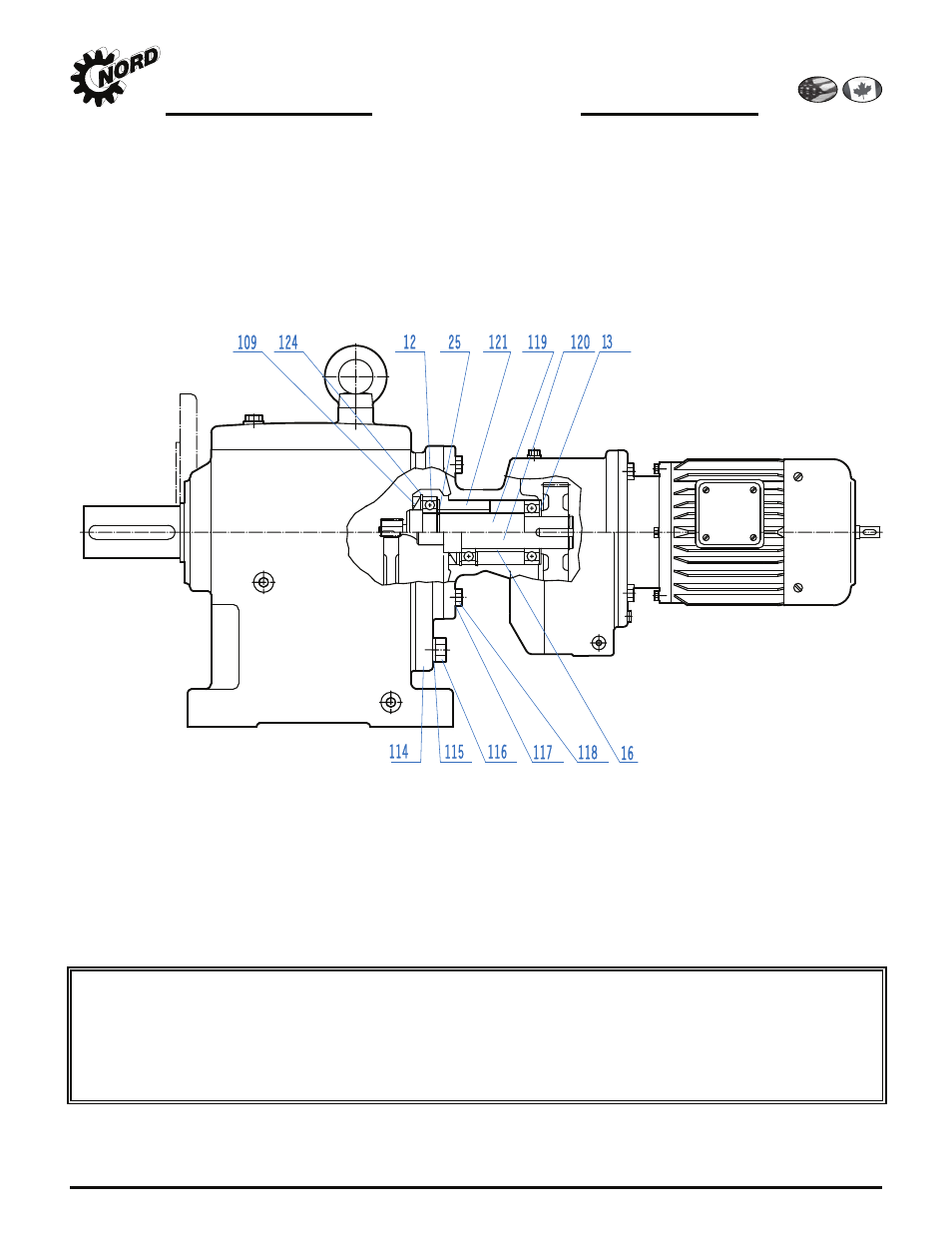

SK12/02 - SK103/52 Input Compound Reduction
* Conditionally used part
