HELICAL IN-LINE
PARTS LIST DRAWINGS
RETAIN FOR FUTURE USE U15100 - 3 of 12

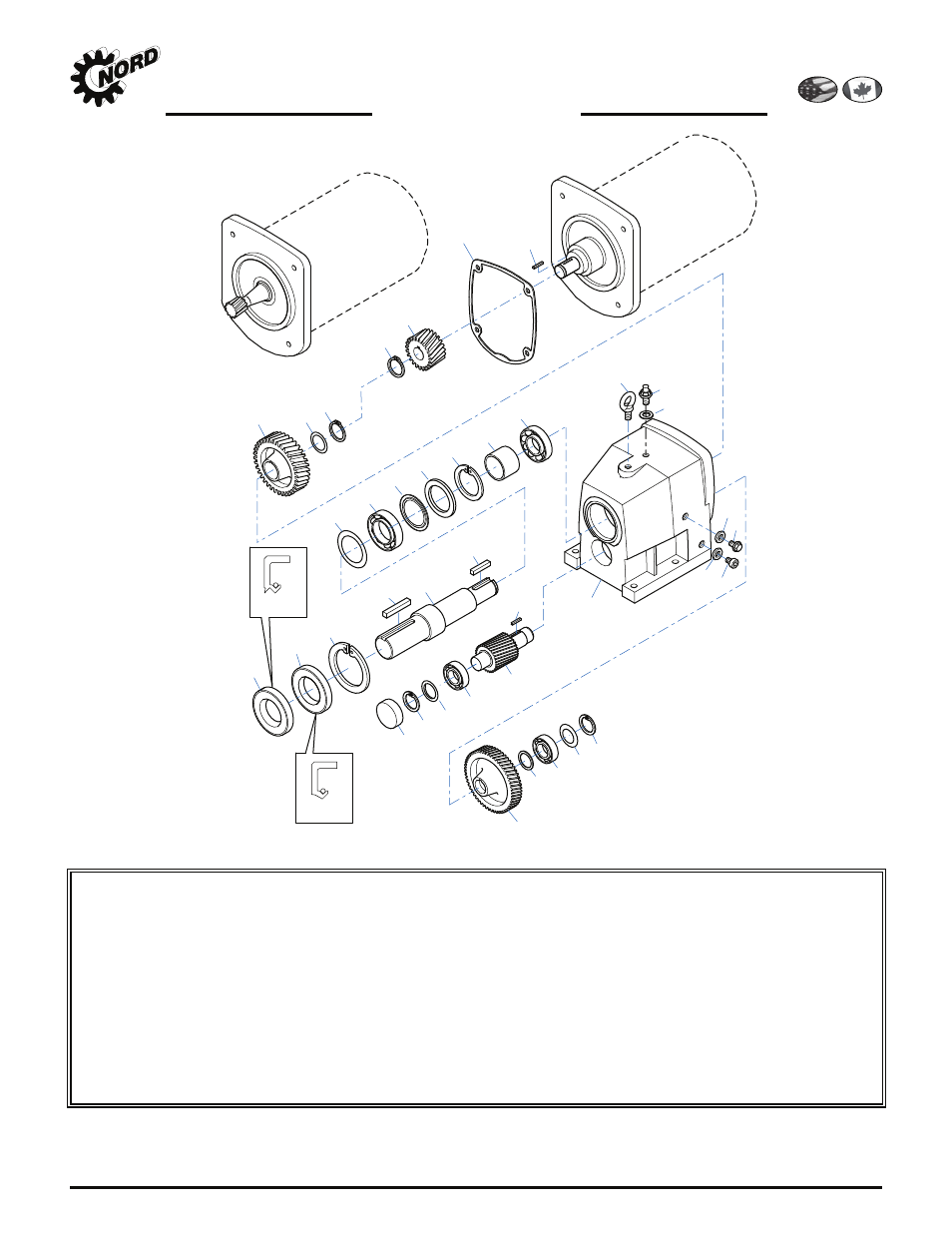

SK02 - SK52 Foot Mount
1 Gear
2 Pinion Shaft
5 Gear
6 Pinion
7 Output Shaft
8 Key
9 Oil Seal
10 Oil Seal
11 Snap Ring
12 Anti-Friction Bearing
13 NILOS Ring*
16 Spacer
17 Vent Plug
18 Seal
20 Key
22 Anti-Friction Bearing
23 Thrust Washer
24 Shim
25 Snap Ring
26 Flanged Eye Bolt
28 Gasket
31 Anti-Friction Bearing
33 Key
34 Drain Plug
35 Gasket
36 Spacer 37 Anti-Friction Bearing
39 Snap Ring
40 Bore Plug
41 Shim
43 Gearcase
44 Snap Ring
47 Shim
49 Snap Ring
130 Shim
918 Key
919 Snap Ring
990 Oil Level Plug
918
28
PRESS-ON
PINION SHAFT
CUT PINION
SHAFT
1
2
5
11
39
37
43
36
31
47
49
17
26
40
10
9
34
35
35
990
TYPE "AS"
41
44
6
919
8
7
20
12
16
24
25
22
33
TYPE "A"
18
23
130
13*
* Conditionally used part
