Viking Pump NORD TSM For Helical Inline Reducers - Manual (Page 26)

DRIVESYSTEMS
HELICAL IN-LINE

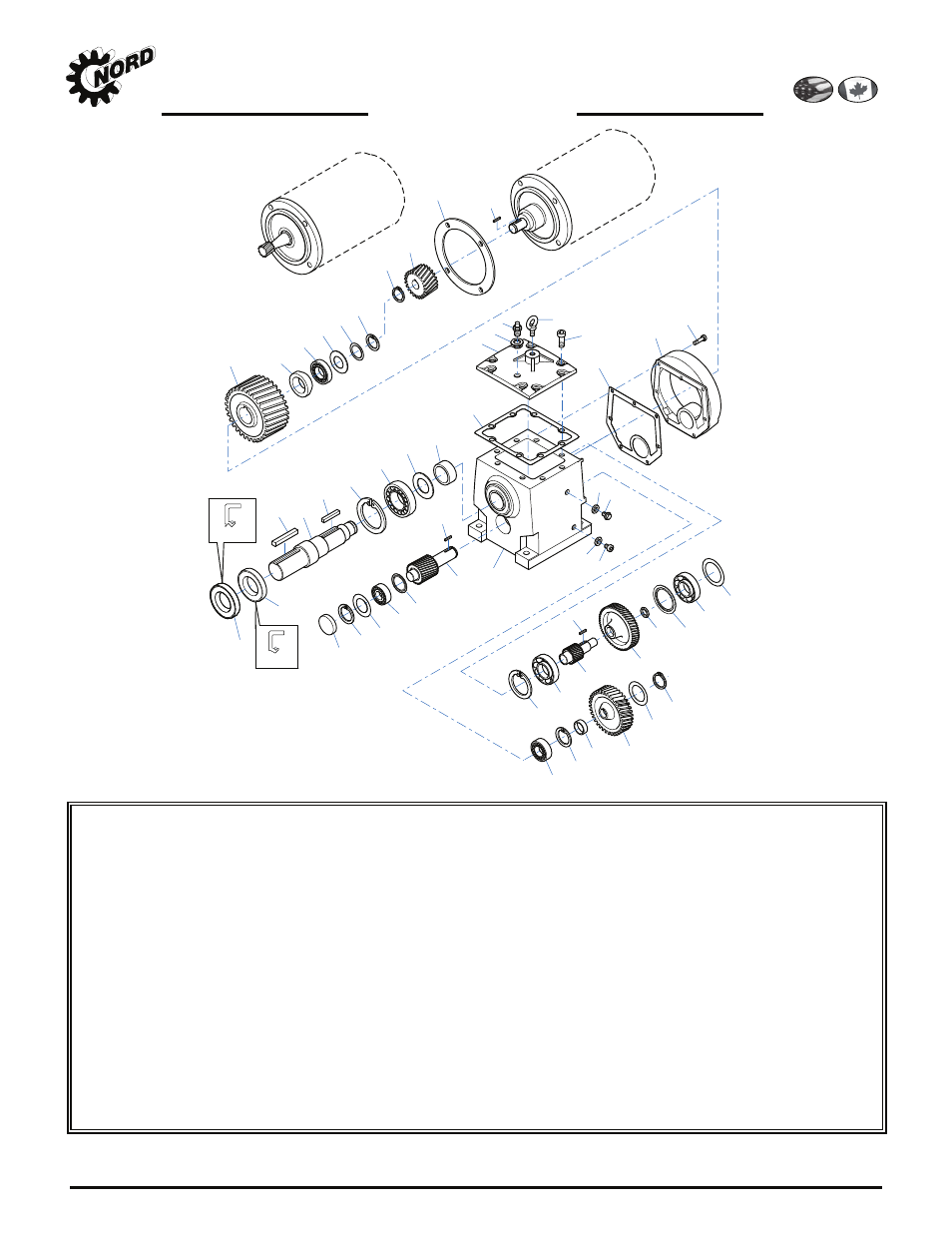

PARTS LIST DRAWINGS
RETAIN FOR FUTURE USE
www.nord.com/docs 06.09.09
NORD Gear Corporation
Toll Free in the United States: 888.314.6673
NORD Gear Limited
Toll Free in Canada: 800.668.4378
U15100 - 9 of 12
16
20
8
11
39
38
40
2
10
9
34
35
35
990
33
43
7
26 17
19
15
14
32
30
27
12
13
TYPE "AS"
TYPE "A"
1
23
21
22
25
24
918
6
919
CUT PINION
SHAFT
28
PRESS ON
PINION SHAFT
3
36
49
45
5
29
48
47
46
4
44
51
50
18
37
131
133 41
1 Gear
2 Pinion Shaft
3 Gear
4 Pinion Shaft
5 Gear
6 Pinion
7 Output Shaft
8 Key
9 Oil Seal
10 Oil Seal
11 Snap Ring
12 Anti-Friction Bearing
13 NILOS Ring
14 Gasket
15 Inspection Cover
16 Spacer
17 Vent Plug
18 Seal
19 Bolt
20 Key
21 Spacer
22 Anti-Friction Bearing
23 Thrust Washer
24 Shim
25 Snap Ring
26 Flanged Eye Bolt
27 Bolt
28 Gasket
29 Spacer
30 Input Cover
32 Gasket
33 Key
34 Drain plug
35 Gasket
36 Spacer
37 Anti-Friction Bearing 38 Anti-Friction Bearing
39 Snap Ring
40 Bore Plug
41 Shim
43 Gearcase
44 Snap Ring
45 Anti-Friction Bearing
46 Key
47 Shim
48 Bearing
49 Snap Ring
50 Thrust Washer
51 Snap Ring
131 NILOS Ring
133 NILOS Ring
918 Key
919 Snap Ring
990 Oil Level Plug
SK63 - SK103 Third Stage Reduction Housing
