DRIVESYSTEMS
HELICAL IN-LINE

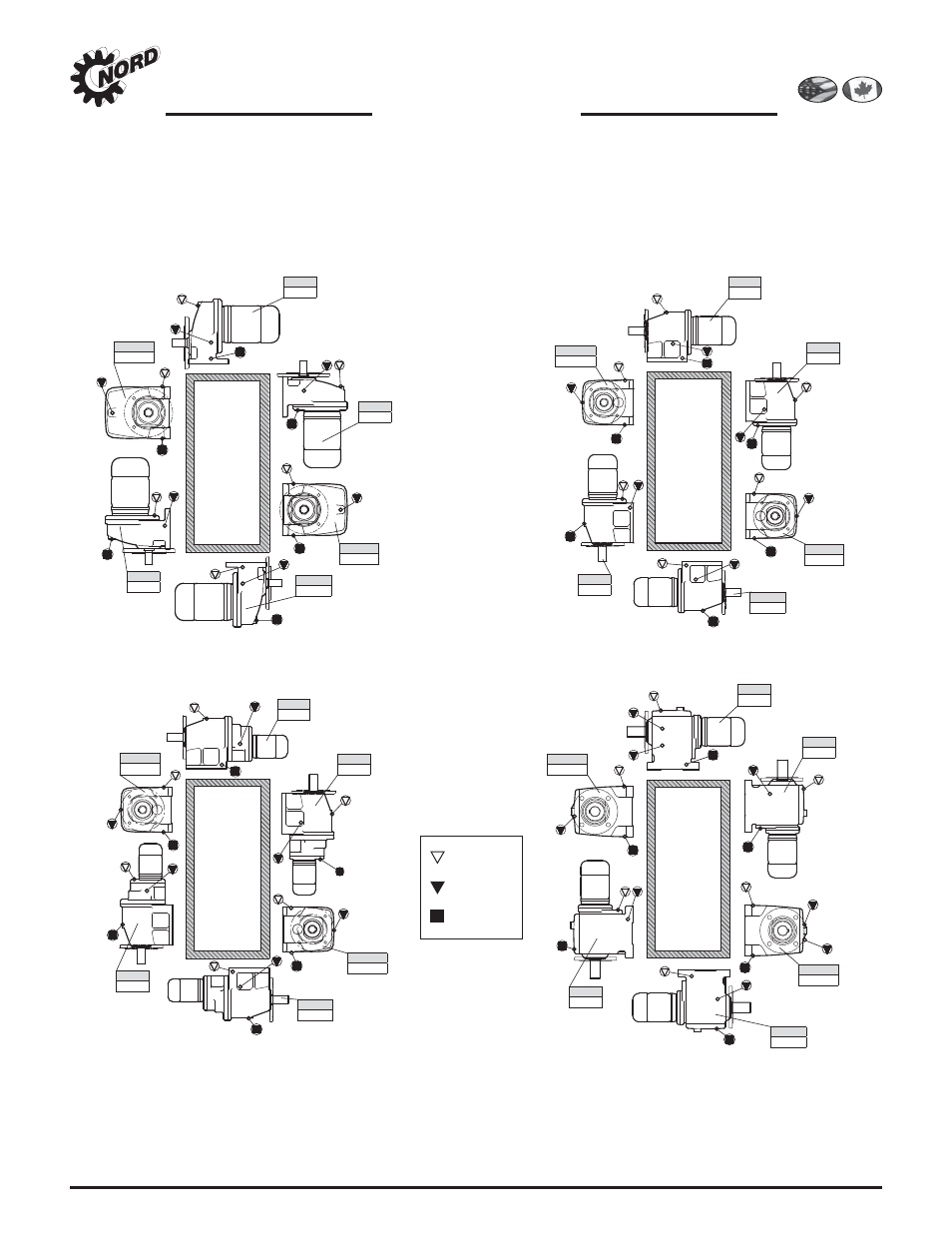

OIL PLUG & VENT LOCATIONS
RETAIN FOR FUTURE USE U14100 - 1 of 1
= Vent
= Oil Level
= Oil Plug
M1
B3/B5
M2
V6/V3
M5
B6/B5II
M3
B8/B5I
M4
V5/V1
M6
B7/B5III
SK 11E
SK 21E
SK 31E
SK 41E
SK 51E
M1
B3/B5
M2
V6/V3
M5
B6/B5II
M4
V5/V1
M3
B8/B5I
M6
B7/B5III
SK 02
SK 12
SK 22
SK 32
SK 42
SK 52
M1
B3/B5
M2
V6/V3
M5
B6/B5II
M3
B8/B5I
M4
V5/V1
M6
B7/B5III
SK 03
SK 13
SK 23
SK 33N
SK 43
SK 53
M1
B3/B5
M2
V6/V3
M5
B6/B5II
M3
B8/B5I
M4
V5/V1
M6
B7/B5III
SK 62
SK 72
SK 82
SK 92
SK 102
SK 63*
SK 73*
SK 83*
SK 93*
SK 103*
*
*
Oil plug connections
Prior to commissioning the reducer, check the oil-fi ll level using the reducer’s oil-level plug and drain or add additional oil as
needed. The minimum acceptable oil level is 0.15 in (4mm) below the oil level hole. For mounting orientations other than
shown please consult NORD Gear. New plug locations may be required.
www.nord.com/docs 06.01.11
NORD Gear Corporation
Toll Free in the United States: 888.314.6673
NORD Gear Limited
Toll Free in Canada: 800.668.4378
* Oil level for 3 stage gear units.
