Helical in-line parts list drawings, Sk 11e - sk 51e foot mount, Nord gear corporation – Viking Pump NORD TSM For Helical Inline Reducers User Manual
Page 18: Nord gear limited
www.nord.com/docs
06.09.09
NORD Gear Corporation
Toll Free in the United States: 888.314.6673
NORD Gear Limited
Toll Free in Canada: 800.668.4378
DRIVESYSTEMS

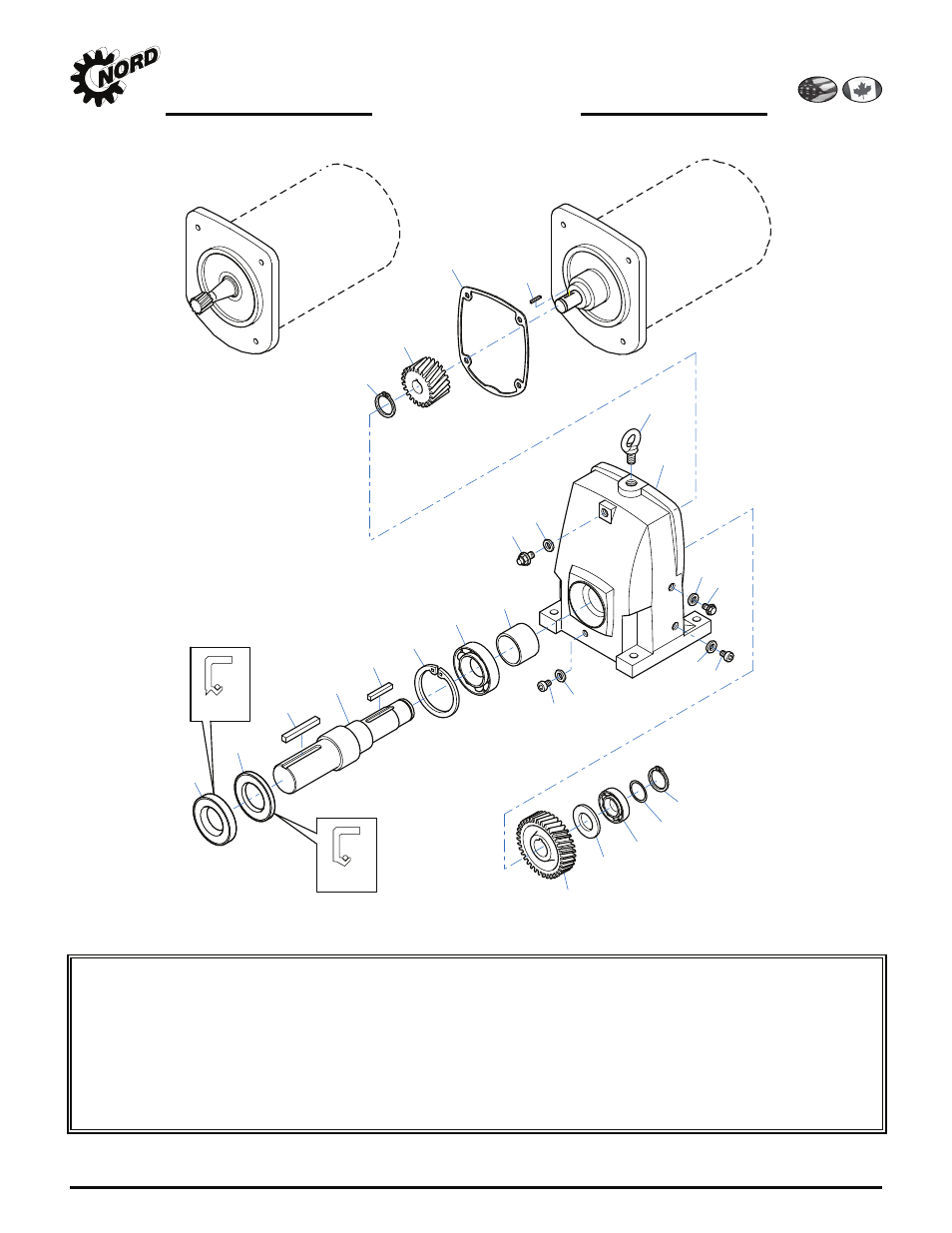

HELICAL IN-LINE
PARTS LIST DRAWINGS
RETAIN FOR FUTURE USE
U15100 - 1 of 12
43
20
8
7
26
17
16
12
11
10
9
34
35
25
24
22
21
5
918
28
6
919
35
990
34
35
TYPE "AS"
TYPE "A"
CUT PINION
SHAFT
PRESS-ON
PINION SHAFT
18
5
Gear
6
Pinion
7
Output Shaft
8
Key
9
Oil Seal
10 Oil Seal
11 Snap Ring
12 Anti-Friction Bearing
16 Spacer
17 Vent Plug
18 Seal
20 Key
21 Spacer
22 Anti-Friction Bearing
24 Shim
25 Snap Ring
26 Flanged Eye Bolt
28 Gasket
34 Drain Plug
35 Gasket
43 Gearcase
918 Key
919 Snap Ring
990 Oil Level Plug
SK 11E - SK 51E Foot Mount
