1.3 Electrical Preparation
1.3.1 Conduit Installation
A typical installation will require 3 conduit runs for, power, data and wash control lines. DO NOT run data
wires in the AC Power or Wash Control conduits. Additional conduit runs may be needed when a gate or
the Sentinel RFID option are to be used. Conduit size should be at least ¾ in, a larger conduit may be
required depending on the quantity and gauge of wires to be installed. Refer to local and national
electrical codes to select the proper conduit type and size. Figure 2 provides guidelines for conduit
planning.

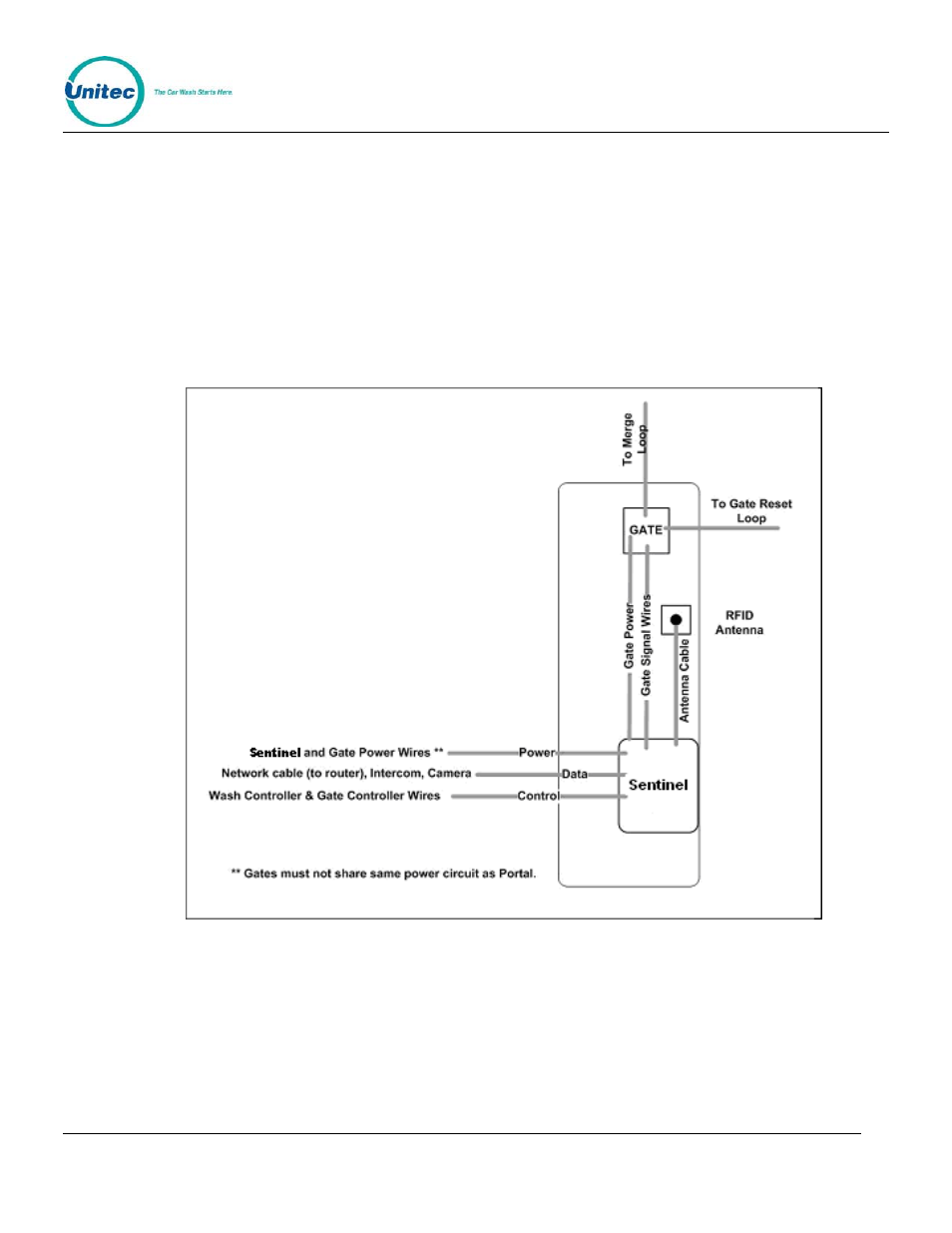

Figure 2. Conduit Runs
