S E N T I N E L
Document Number: SENT1001 22

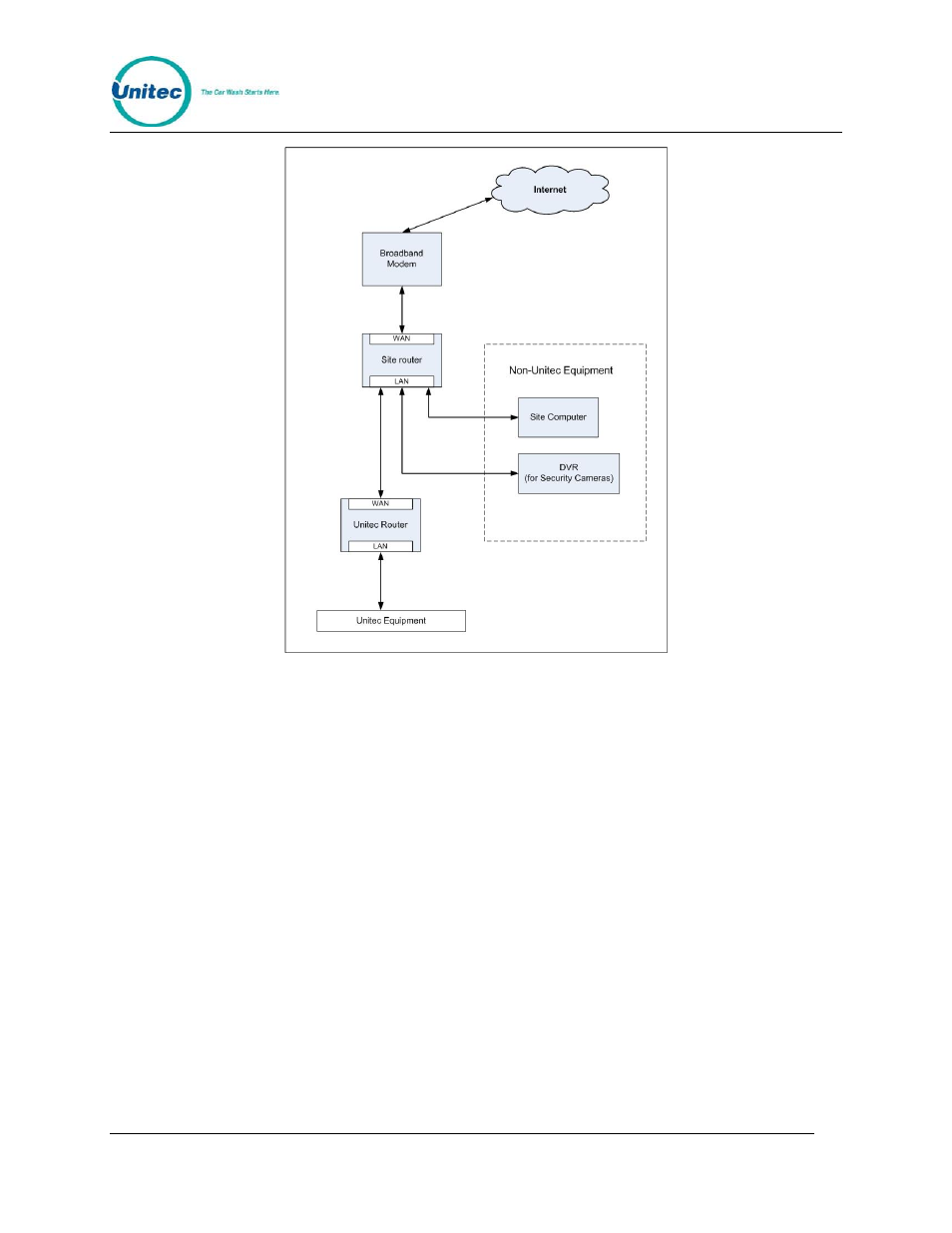

When a router (or modem with built-in router) is used between the Unitec router and
broadband connection, it must be configured to allow external connections to and
from the Sentinel. The router should be configured to:
• Forward the ports assigned to the Sentinel(s) to the Unitec router. For a
single unit installation the port is 9810. In multi-unit sites, the ports would
increment for each Sentinel i.e. 9811, 9812 etc..).
• Provide a static/reserved IP address to the Unitec router reserved so that the
forwarded ports will always be directed to it.
Document Name: Sentinel Installation Manual
