S E N T I N E L
Document Number: SENT1001 12

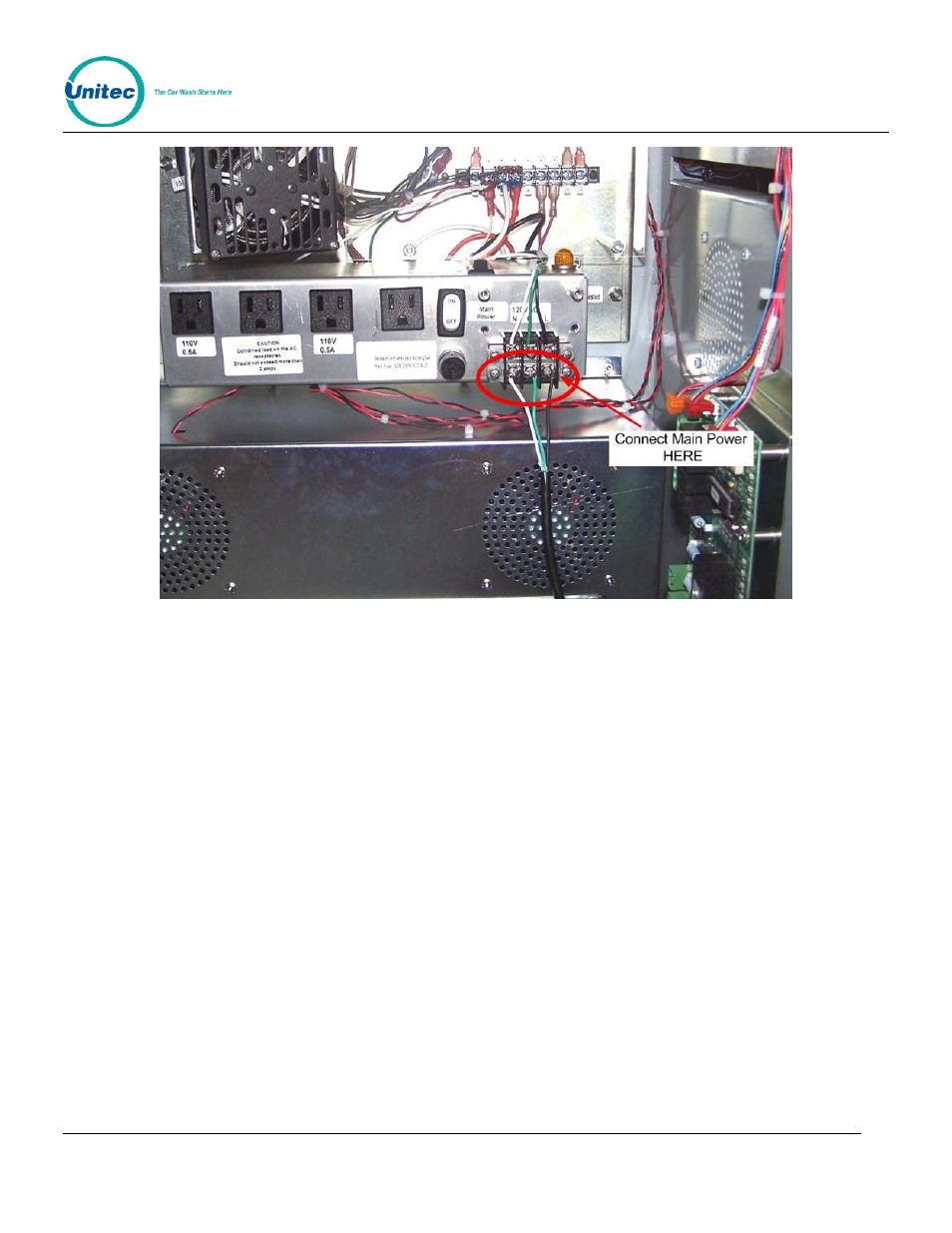

Figure 7. Neutral - Ground – Line Connections
4. Use wire ties to route and secure any extra cable. Replace the plastic shield.
3.5 Network Connection
The Cat 5 cable will need to be terminated at each end with an RJ-45 modular plug. This termination
should be performed by a technician who is experienced in assembling network cables as a slight
misalignment in the wire termination can cause communications problems. For reference, Appendix B
provides guidelines for terminating a network cable with a modular RJ-45 plug.
The Network (Ethernet) port is located at the bottom edge of the mother board. There should be a surge
suppressor installed in the Ethernet port. Insert the terminated CAT 5 cable into the other end of the surge
protector. The facility end of the Cat-5 cable connects to one of the LAN ports on the Unitec router. The
router’s WAN port should be connected to the Internet Service device (e.g. DSL or Cable modem). Other
Unitec devices may need to be connected to the router’s LAN ports. Refer to Appendix B for details on
connecting devices to the router.
